Linear Light

STLAR-L70100-MP

70 x 100mm Slim LED Linear Light

• Item No.: STLAR-L70100-MP
• LED Power: 36W
• LED Type: 2835SMD
• SDCM: <5
• Material: Aluminum + PC + PMMA
• Installation: Suspended
• Voltage: AC200-240V/ AC100-277V
• Optic: 90° microprismatic
• UGR: <19
• CRI: >90
• Efficiency: 105-110lm/W
• Luminous Flux: 3600-3780lm
• Distribution: 100% direct

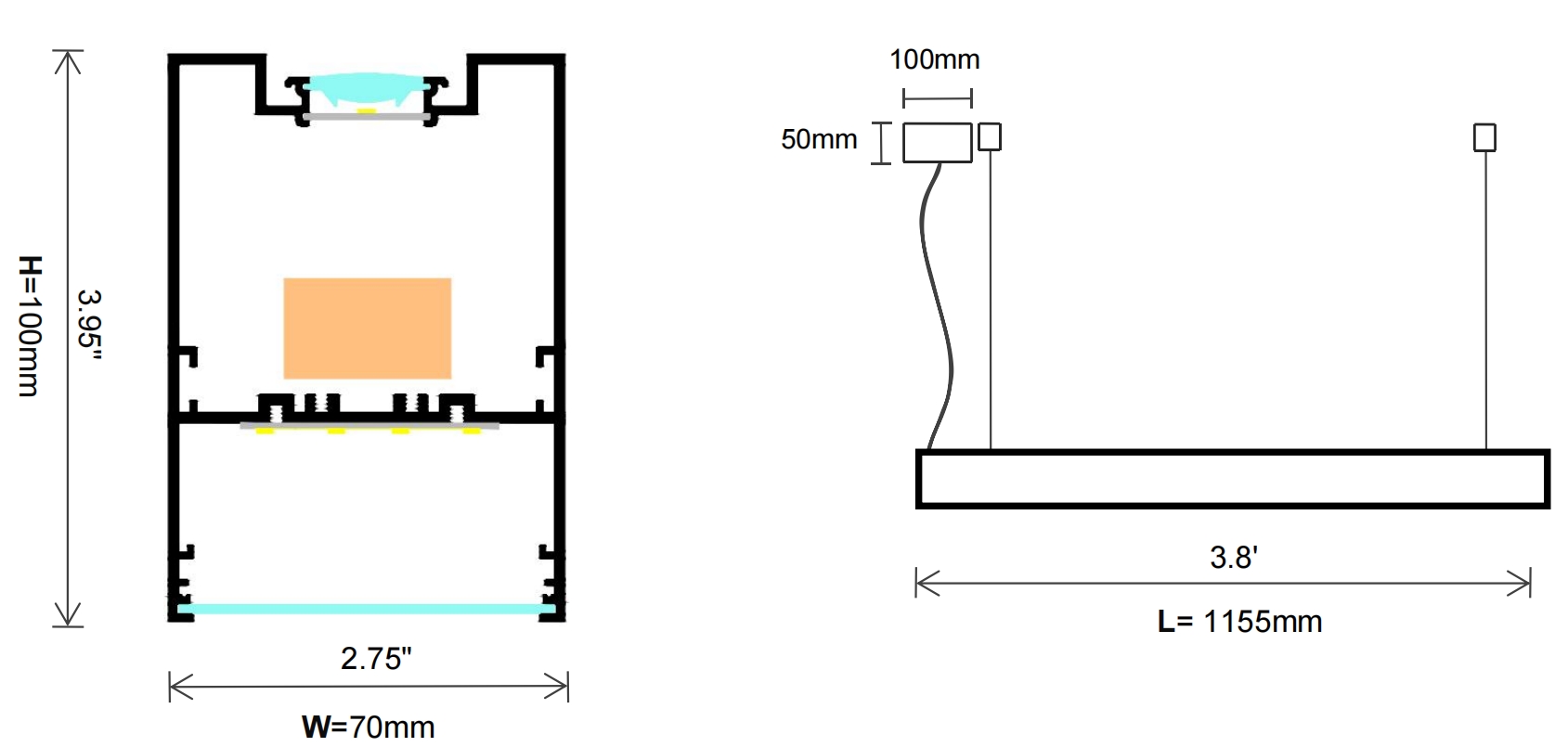

• Dimensions: L1155 x W70 xH100mm
    1. Linear design with L1155×W70×H100mm sturdy profile.
    2. Supports suspended and surface installation for flexible application.
    3. 90° microprismatic provides UGR<19 anti‑glare lighting.
    4. 36W power with stable luminous flux of 3600-3780lm.
    5. Multiple CCT options: 2700K, 3000K, 4000K, 5700K.
    6. CRI 90+ and R9>67 ensure high‑quality color rendering.
    7. Extruded aluminum housing with good sealing and dustproof performance.
    8. 50,000 hours lifespan and 5‑year warranty for reliable use.




    Product Code STLAR-L70100-MP
    Material Aluminum + PC
    Dimensions L1155 x W70 xH100mm
    Installation Suspended / Surface
    Input Voltage AC200-240V
    Optic Microprismatic
    Beam Angle 90°
    UGR <19
    Power 36W
    Color Temperature 2700K 3000K 4000K 5700K
    CRI >90
    Efficiency 105-110lm/W
    Luminous Flux 3600-3780lm
    Distribution 100% direct
    Control ON/OFF
    Housing Finish Color White (RAL 9016/ RAL 9003)
    Black (RAL 9005)
    IP Rating 20
    Nominal Frequency  50/60 Hz
    LED Type SMD LED
    LED Chip Brand LUMILEDS
    R9 Color Rendering Index Value R9>67
    Color Variation Initial & Color Consistency SDCM<5
    Lifesppan  L80B50 50000hours
    Driver Power Factor  >0.95
    Driver Efficiency  ≥88%
    THD  <15%
    Driver Glow Wire Test 750℃
    Driver Position  External
    Electrical Protection  Class II
    Photobiological Risk Group  RG0
    Housing Material Aluminum 6063-T6
    Housing Processing  Powder coating
