Linear Light

STLAR-L6685-RP

66 x 85mm Slim LED Linear Light

• Product Code: STLAR-L6685-RP
• LED Power: 200W
• LED Type: 2835SMD
• SDCM: <5
• Material: Aluminum + PC
• Installation: Ceiling
• Voltage: AC200-240V/ AC100-277V
• Optic: Push type microprismatic diffuser
• Beam Angle: 90°
• CRI: >90
• Efficiency: 85-90lm/W
• Luminous Flux: 17000-18000lm
• Lighting Direction: Downward

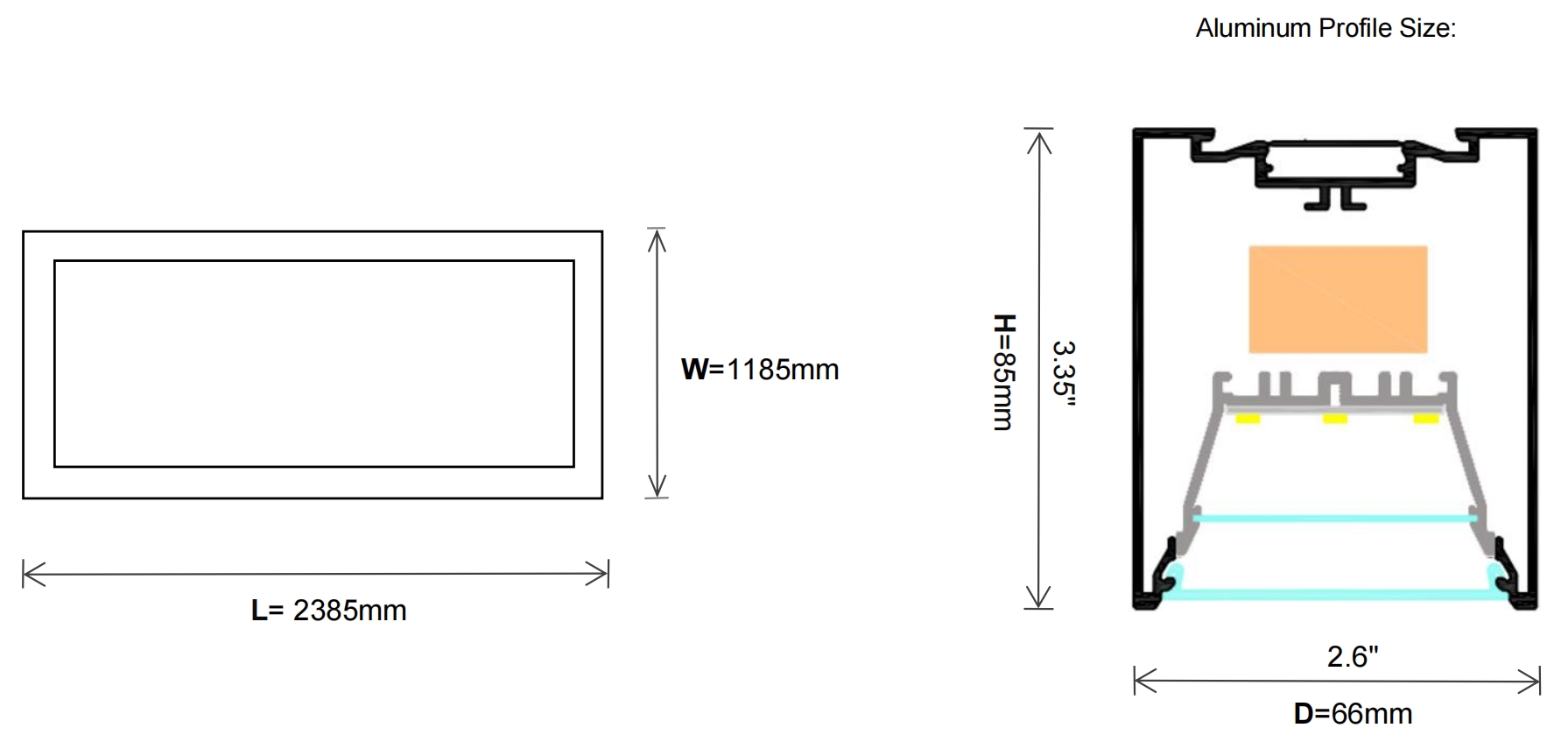

• Dimensions: L2300 x W1200 x D66 x H85mm
    1. Linkable linear design supports seamless long‑line installation.

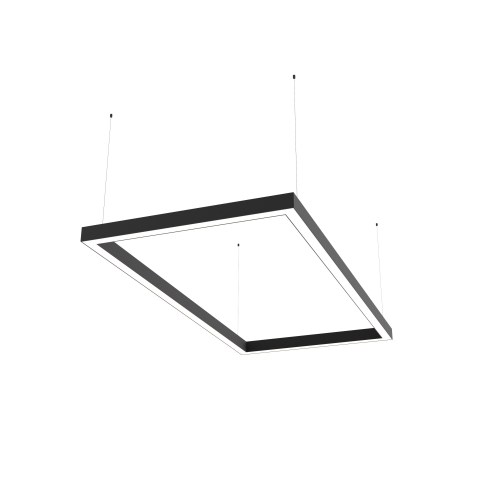

    2. Three installation options: recessed, surface and pendant mounted.
    3. 90° microprismatic optic provides dot‑free and even lighting.
    4. High efficacy up to 95–100 lm/W with stable output.
    5. Multiple CCT options: 2700K, 4000K and 5700K.
    6. CRI 90+ and SDCM<5 ensures excellent color consistency.
    7. Extruded aluminum housing with die‑cast end caps, no light leakage.
    8. Flicker‑free RG0 design for safe and comfortable commercial use.
    9. 50,000hrs lifespan backed by 5 years warranty.
    Product Code STLAR-L6685-RP
    Material Aluminum + PC
    Dimensions L2300 x W1200 x D66 x H85mm
    Installation Ceiling
    Input Voltage AC200-240V
    Optic Push type microprismatic diffuser
    Beam Angle 90°
    UGR <25
    Power 200W
    Color Temperature 2700K 3000K 4000K 5700K
    CRI >90
    Efficiency 85-90lm/W
    Luminous Flux 17000-18000lm
    Lighting Direction Downward
    Control ON/OFF
    Housing Finish Color White (RAL 9016/ RAL 9003)
    Black (RAL 9005)
    IP Rating 20
    Nominal Frequency  50/60 Hz
    LED Type SMD LED
    LED Chip Brand LUMILEDS
    R9 Color Rendering Index Value R9>67
    Color Variation Initial & Color Consistency SDCM<5
    Lifesppan  L80B50 50000hours
    Driver Power Factor  >0.95
    Driver Efficiency  ≥88%
    THD  <15%
    Driver Glow Wire Test 750℃
    Driver Position  External
    Electrical Protection  Class II
    Photobiological Risk Group  RG0
    Housing Material Aluminum 6063-T6
    Housing Processing  Powder coating
