Linear Light

SLIM-L4685-LN

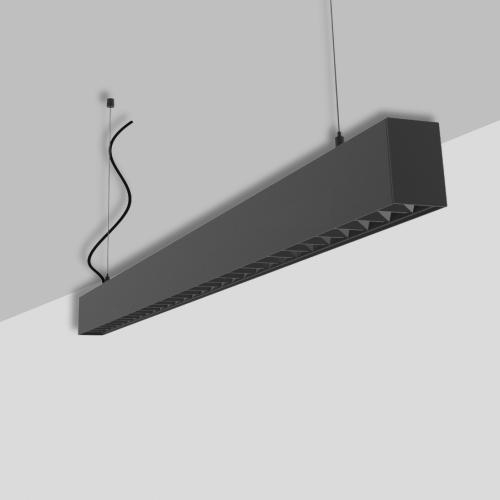

46 x 85mm Slim LED Linear Light

• Product Code: SLIM-L4685-LN
• LED Power: 30W
• LED Type: 2835SMD
• SDCM: <5
• Material: Aluminum + PMMA
• Installation: Suspended
• Voltage: AC200-240V/ AC100-277V
• Optic: 38° lens
• UGR: <9
• CRI: >90
• Efficiency: 105-110lm/W
• Luminous Flux: 3150-3300lm
• Distribution: 70% direct  / 30% Indirect
• Dimensions: L1150 x W46 xH85mm
    1. Slim linear design, L1150×W46×H85mm.
    2. UGR<9 anti‑glare, 38° lens optic. High efficiency with 105-110lm/W.
    3. 30W output, uniform direct lighting with no shadows or glare.
    4. CRI 90+ / R9>67, true color rendering, SDCM<5.
    5. Multi‑CCT optional: 2700K/3000K/4000K/5700K.
    6. Flicker‑free (RG0), safe for long‑time office use.
    7. Aluminum+PC body, powder coated, dust & insect proof.
    8. Suspended & surface mount dual installation.
    9. 50,000hrs lifespan + 5 years warranty.


    Product Code SLIM-L4685-LN
    Material Aluminum + PMMA
    Dimensions L1150 x W46 xH85mm
    Installation Suspended
    Input Voltage AC200-240V
    Optic Optical lens
    Beam Angle 38°
    UGR <9
    Power 30W
    Color Temperature 2700K 3000K 4000K 5700K
    CRI >90
    Efficiency 105-110lm/W
    Luminous Flux 3150-3300lm
    Distribution 70% direct /  30% indirect
    Control ON/OFF
    Housing Finish Color White (RAL 9016/ RAL 9003)
    Black (RAL 9005)
    IP Rating 20
    Nominal Frequency  50/60 Hz
    LED Type SMD LED
    LED Chip Brand LUMILEDS
    R9 Color Rendering Index Value R9>67
    Color Variation Initial & Color Consistency SDCM<5
    Lifesppan  L80B50 50000hours
    Driver Power Factor  >0.95
    Driver Efficiency  ≥88%
    THD  <15%
    Driver Glow Wire Test 750℃
    Driver Position  External
    Electrical Protection  Class II
    Photobiological Risk Group  RG0
    Housing Material Aluminum 6063-T6
    Housing Processing  Powder coating
