Linear Light

SLIM-L4685-MP

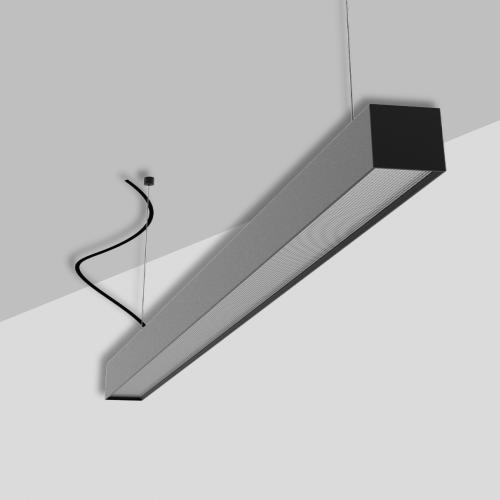

46 x 85mm Slim LED Linear Light

• Product Code: SLIM-L4685-MP
• LED Power: 28W
• LED Type: 2835SMD
• SDCM: <5
• Material: Aluminum +PC + PMMA
• Installation: Suspended
• Voltage: AC200-240V/ AC100-277V
• Optic: 90° microprismatic
• UGR: <19
• CRI: >90
• Efficiency: 95-100lm/W
• Luminous Flux: 2660-2800lm
• Distribution: 60% direct  / 40% indirect
• Dimensions: L1150 x W46 xH85mm
    1. Slim linear design, L1150×W46×H85mm.
    2. UGR<19 anti‑glare, 90° microprismatic.
    3. High efficiency, 95-100lm/W.
    4. 30W output, uniform direct lighting with no shadows or glare.
    5. CRI 90+ / R9>67, true color rendering, SDCM<5.
    6. Multi‑CCT optional: 2700K/3000K/4000K/5700K.
    7. Flicker‑free (RG0), safe for long‑time office use.
    8. Aluminum+PC body, powder coated, dust & insect proof.
    9. Suspended & surface mount dual installation.
    10. 50,000hrs lifespan + 5 years warranty.




    Product Code SLIM-L4685-MP
    Material Aluminum +PC + PMMA
    Dimensions L1150 x W46 xH85mm
    Installation Suspended
    Input Voltage AC200-240V
    Optic Microprismatic
    Beam Angle 90°
    UGR <19
    Power 28W
    Color Temperature 2700K 3000K 4000K 5700K
    CRI >90
    Efficiency 95-100lm/W
    Luminous Flux 2660-2800lm
    Distribution 60% direct  / 40% indirect
    Control ON/OFF
    Housing Finish Color White (RAL 9016/ RAL 9003)
    Black (RAL 9005)
    IP Rating 20
    Nominal Frequency  50/60 Hz
    LED Type SMD LED
    LED Chip Brand LUMILEDS
    R9 Color Rendering Index Value R9＞67
    Color Variation Initial & Color Consistency SDCM＜5
    Lifesppan  L80B50 50000hours
    Driver Power Factor  ＞0.95
    Driver Efficiency  ≥88%
    THD  ＜15%
    Driver Glow Wire Test 750℃
    Driver Position  External
    Electrical Protection  Class II
    Photobiological Risk Group  RG0
    Housing Material Aluminum 6063-T6
    Housing Processing  Powder coating
