Linear Light

SLOT-L4835-RC

48 x 35mm Recessed LED Linear Light

• Product Code: SLOT-L4835-RC
• LED Power: 28W
• LED Type: 2835SMD
• SDCM: <5
• Material: Aluminum + PMMA
• Installation: Recessed
• Voltage: AC200-240V/ AC100-277V
• Optic: 48° reflector cup
• UGR: <6
• CRI: >90
• Efficiency: 85-90lm/W
• Luminous Flux: 2380-2520lm
• Distribution: 100% direct

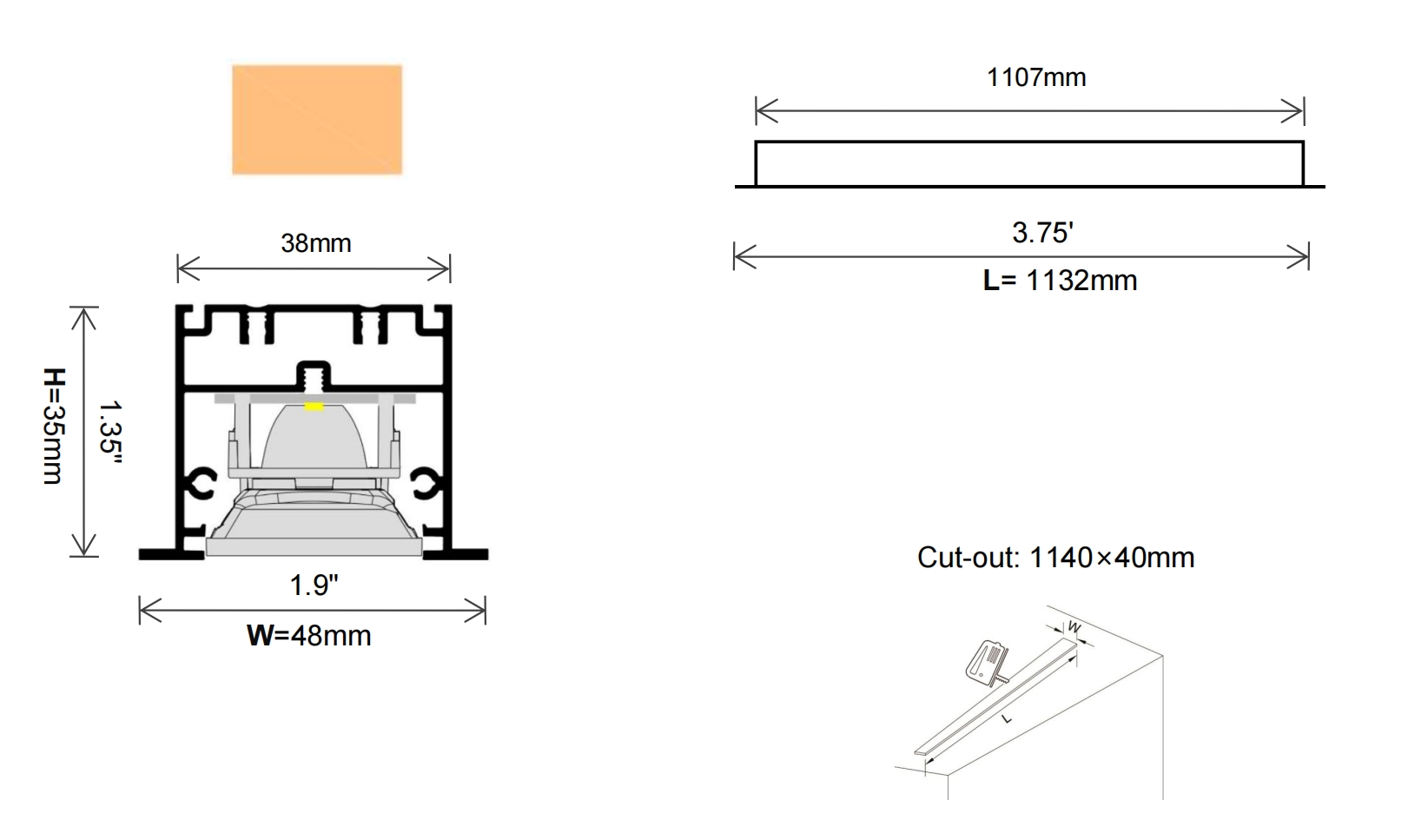

• Dimensions: L1132 x W48 xH35mm
    1. Ultra‑slim recessed linear design, L1132×W48×H35mm.
    2. UGR≤6 anti‑glare, 48° reflector cup for soft & even lighting.
    3. 28W high efficacy, up to 90 lm/W, 2380–2520lm.
    4. CRI 90+ / R9>67, true color rendering, SDCM<5.
    5. Multi‑CCT optional: 2700K/3000K/4000K/5700K.
    6. Flicker‑free RG0, safe for office & commercial use.
    7. Extruded aluminum + PMMA, powder coated, dust proof.
    8. Recessed mount with strong spring clips & safety rope.
    9. 50,000hrs lifespan, 5 years warranty.
    Product Code SLOT-L4835-RC
    Material Aluminum + PMMA
    Dimensions L1132 x W48 xH35mm
    Installation Recessed
    Input Voltage AC200-240V
    Optic Reflector cup
    Beam Angle 48°
    UGR <9
    Power 28W
    Color Temperature 2700K 3000K 4000K 5700K
    CRI >90
    Efficiency 85-90lm/W
    Luminous Flux 2380-2520lm
    Distribution 100% direct
    Control ON/OFF
    Housing Finish Color White (RAL 9016/ RAL 9003)
    Black (RAL 9005)
    IP Rating 20
    Nominal Frequency  50/60 Hz
    LED Type SMD LED
    LED Chip Brand LUMILEDS
    R9 Color Rendering Index Value R9>67
    Color Variation Initial & Color Consistency SDCM<5
    Lifesppan  L80B50 50000hours
    Driver Power Factor  >0.95
    Driver Efficiency  ≥88%
    THD  <15%
    Driver Glow Wire Test 750℃
    Driver Position  External
    Electrical Protection  Class II
    Photobiological Risk Group  RG0
    Housing Material Aluminum 6063-T6
    Housing Processing  Powder coating
