Linear Light

STLAR-L6685-SP

66 x 85mm Slim LED Linear Light

• Product Code: STLAR-L6685-SP
• LED Power: 28W
• LED Type: 2835SMD
• SDCM: <5
• Material: Aluminum + PC
• Installation: Ceiling
• Voltage: AC200-240V/ AC100-277V
• Optic: 90° microprismatic
• UGR: <25
• CRI: >90
• Efficiency: 95-100lm/W
• Luminous Flux: 2660-2800lm
• Lighting Direction: Downward

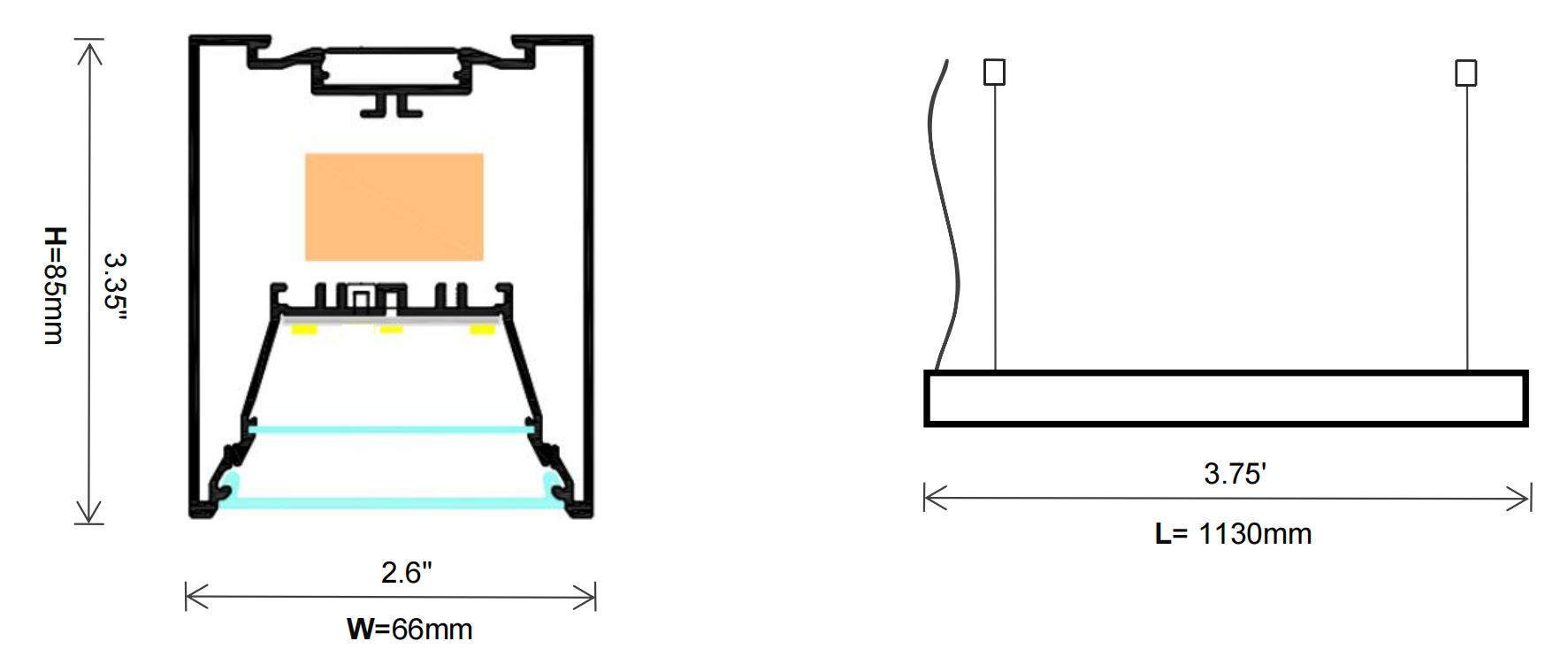

• Dimensions: L1130 x W66 xH85mm
    1. Linear design with L1130×W66×H85mm slim profile.

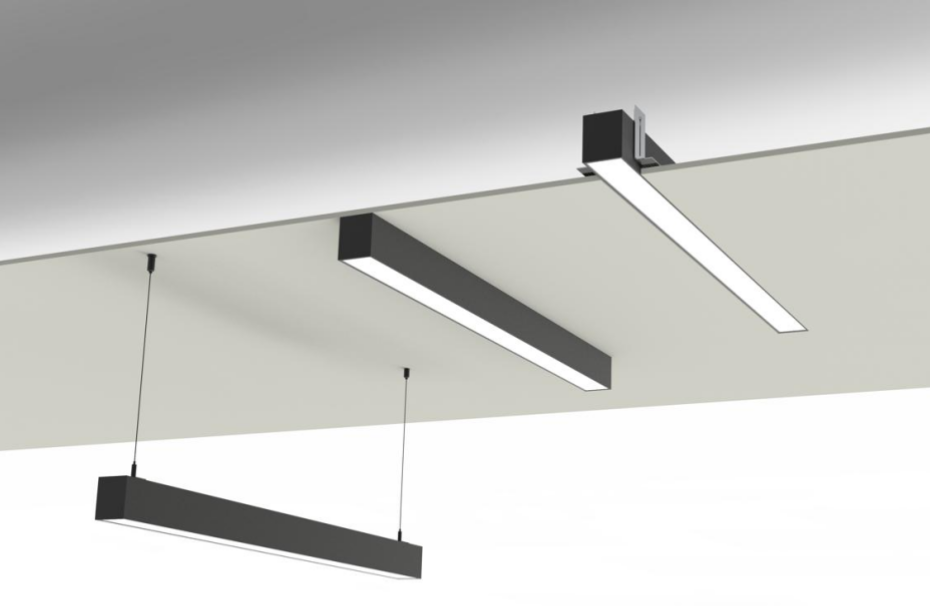

    2. Supports recessed, surface and pendant three installation ways.
    3. 90° microprismatic optic delivers dot-free and even lighting.
    4. 28W high efficiency with 95–100lm/W and 2660–2800lm.
    5. Optional CCT: 2700K, 3000K, 4000K, 5700K.
    6. CRI 90+, R9>67, SDCM<5 for stable color performance.
    7. Aluminum+PC housing with powder coating and no light leakage.
    8. Flicker-free RG0 safe for long‑time commercial use.
    9. 50,000hrs lifespan and 5 years warranty.






    Product Code STLAR-L6685-SP
    Material Aluminum + PC
    Dimensions L1130 x W66 xH85mm
    Installation Ceiling
    Input Voltage AC200-240V
    Optic Microprismatic
    Beam Angle 90°
    UGR <25
    Power 28W
    Color Temperature 2700K 3000K 4000K 5700K
    CRI >90
    Efficiency 95-100lm/W
    Luminous Flux 2660-2800lm
    Lighting Direction Downward
    Control ON/OFF
    Housing Finish Color White (RAL 9016/ RAL 9003)
    Black (RAL 9005)
    IP Rating 20
    Nominal Frequency  50/60 Hz
    LED Type SMD LED
    LED Chip Brand LUMILEDS
    R9 Color Rendering Index Value R9>67
    Color Variation Initial & Color Consistency SDCM<5
    Lifesppan  L80B50 50000hours
    Driver Power Factor  >0.95
    Driver Efficiency  ≥88%
    THD  <15%
    Driver Glow Wire Test 750℃
    Driver Position  External
    Electrical Protection  Class II
    Photobiological Risk Group  RG0
    Housing Material Aluminum 6063-T6
    Housing Processing  Powder coating
