COB LED Strip Light

AL-SLCOB-SV630V210-RGB

Side Emitting RGB COB LED Strip Light

• Product Code: AL-SLCOB-SV630V210-RGB
• Voltage: 24VDC
• PCB: 10mm
• Cutting Unit: 100mm
• LED Quantity: 630leds/m
• Color: RGB
• Wattage: 9W/M
• Efficiency: 20lm/W
• IP Grade: IP20 / IP65
• Working Temperature: -20°C - 40°C
• Storage Temperature: -20°C - 45°C
    1. High-density RGB COB design for full-color changing, dot‑free uniform lighting.
    2. Side‑emitting technology with only 1mm ultra‑narrow light output for sleek linear effect.
    3. 2oz double‑layer FPC for excellent heat dissipation, low voltage drop and high flexibility.
    4. 24V DC input with stable power output and reliable long‑term performance.
    5. Multiple dimming supported (DALI, 0–10V, PWM) for flexible brightness & color control.
    6. 100mm standard cutting unit for easy length adjustment and installation.
    7. Long lifespan up to 50,000 hours with 3‑year warranty.
    8. Full waterproof options (IP20/IP65) for indoor & outdoor decorative use.






    Product Code AL-SLCOB-SV630V210-RGB
    Input Voltage 24VDC
    Color Red Green Blue Mixed
    Power 4W/M 2.5W/M 2.5W/M 9W/M
    Flux 40lm 125lm 15lm 180lm
    Efficiency 10lm/W 50lm/W 6lm/W 20lm/W

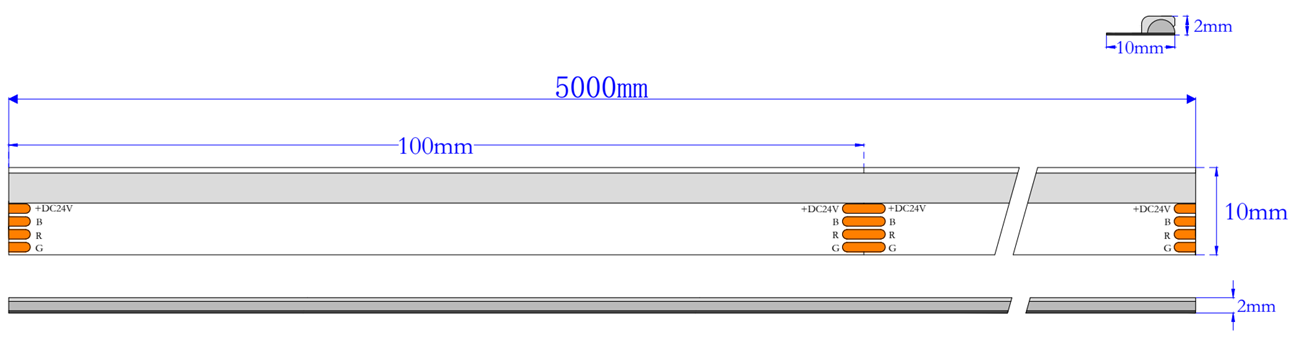

    Dimensions 10 x 1.6 x 5000mm
    Cutting Unit 100mm
    Lifespan 50,000hours
    Working Temperature -20°C - 40°C
    Storage Temperature -20°C - 45°C
    Warranty 3 years
