COB LED Strip Light

AL-SLCOB90-UN528V103

3mm Ultra Slim COB LED Strip Light

• Product Code: AL-SLCOB90-UN528V103
• Voltage: 12VDC
• PCB: 3mm

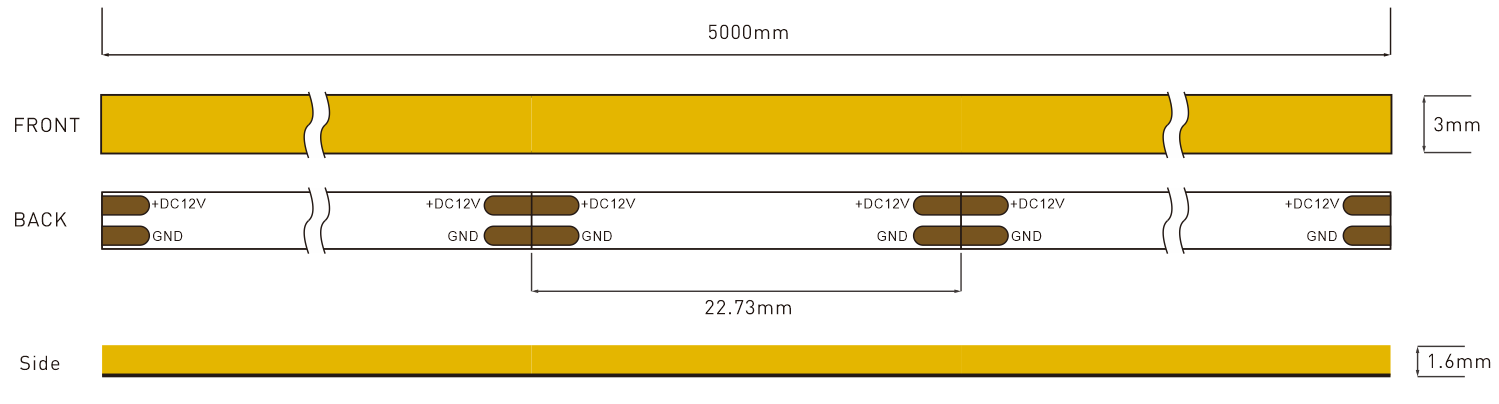

• Cutting Unit: 22.73mm
• LED Quantity: 528leds/m
• CRI: 80+ / 90+
• SDCM: <5
• Wattage: 4W/M
• Efficiency: 110lm/W
• IP Grade: IP20  IP54  IP65  IP67  IP68
    1. COB integrated design delivers dot‑free, uniform lighting with no dark areas
    2. Ultra‑slim 3mm width for ultra‑flexible installation in narrow spaces.
    3. Multiple dimming supported (DALI, 0–10V, PWM) for versatile brightness control.
    4. 2oz double‑layer FPC for excellent heat dissipation, low voltage drop and flexibility.
    5. 12V DC input with stable 4W/m power consumption and high safety.
    6. High luminous efficacy up to 110lm/W for energy‑efficient lighting.
    7. Short cutting unit (22.73mm) for precise length customization.
    8. Long lifespan (50,000 hours) with 2‑year warranty and multiple waterproof options.


    Product Code AL-SLCOB90-UN528V103
    LED Type COB LED
    Voltage 12VDC
    Color Temperature 3000K 4000K 5000K 6500K
    PCB 3mm
    Flux 400-440lm
    Efficiency 100-110lm/W
    Cutting Unit 22.73mm
    LED Quantity 528leds/m
    CRI 80+  90+
    SDCM <5
    Wattage 4W/M
    Efficiency 85lm/W
    IP Grade IP20 IP54 IP65 IP67 IP68
