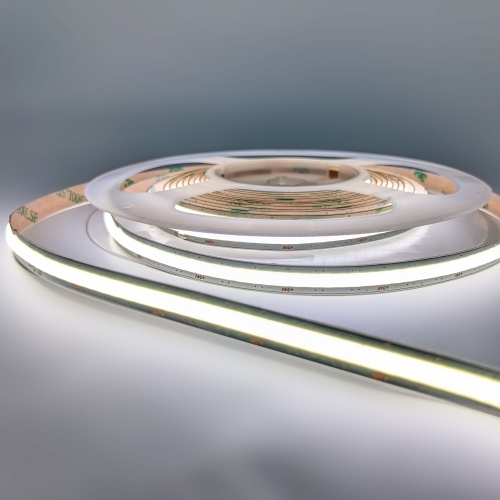

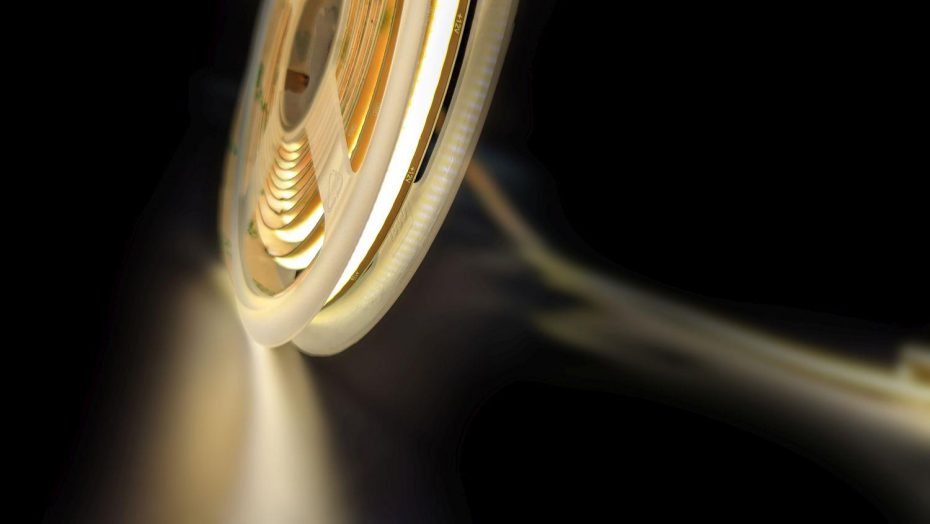

COB LED Strip Light

AL-SLCOB80-FC528V208

10W Free Cut COB LED Strip Light

• Product Code: AL-SLCOB80-FC528V208
• Voltage: 24VDC
• PCB: 8mm
• Cutting Unit: Free cut
• LED Quantity: 528leds/m
• CRI: 80+ / 90+
• SDCM: <5
• Wattage: 10W/M
• Efficiency: 75lm/W
• IP Grade: IP20 / IP65
• Working Temperature: -20°C - 40°C
• Storage Temperature: -20°C - 45°C

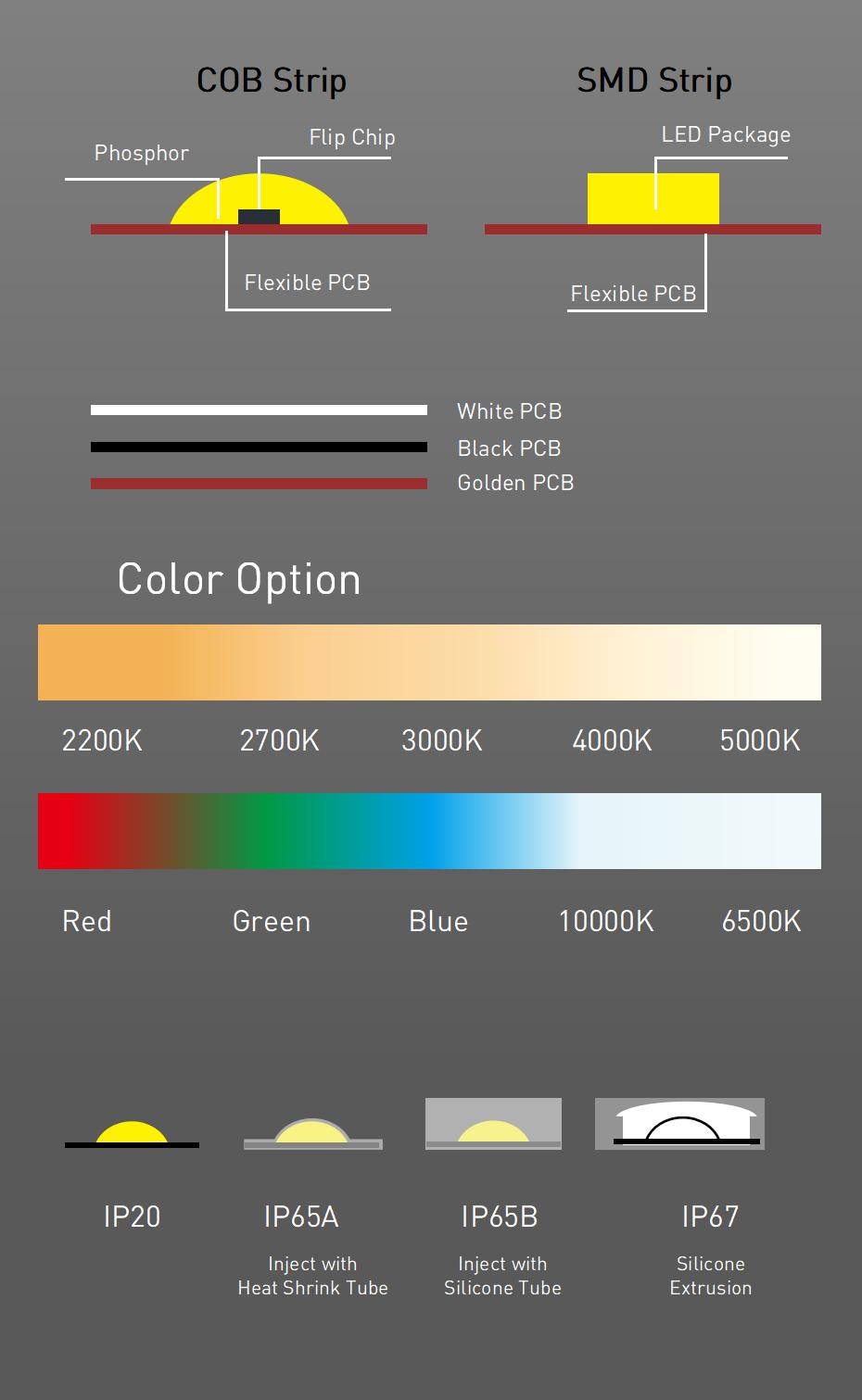

    1. COB integrated design for dot-free, uniform lighting output without dark spots.

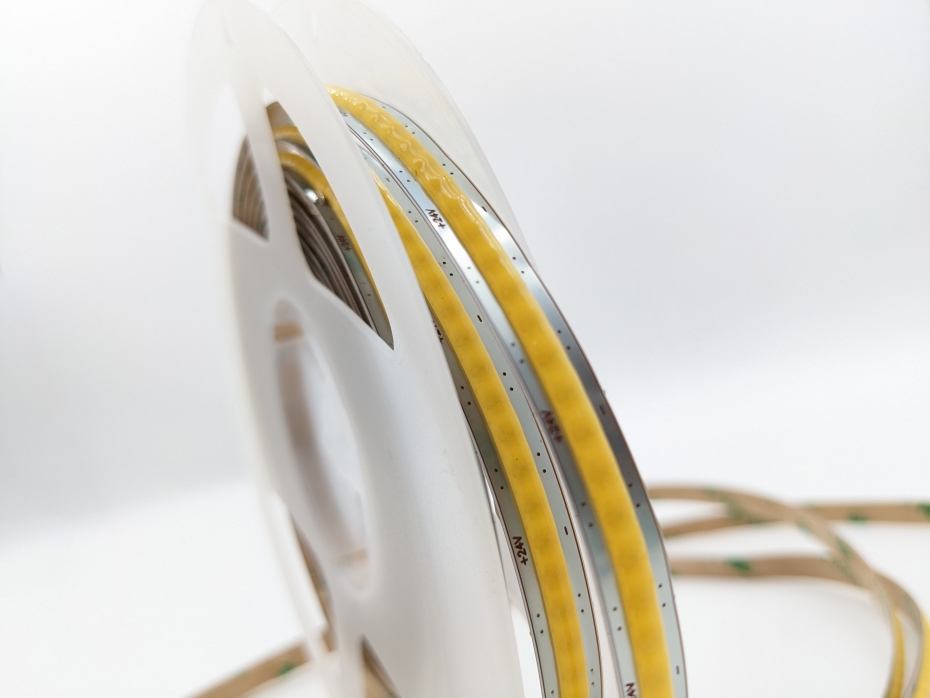

    2. Free-cut flexible structure with exposed copper pads for easy soldering and installation.
    3. 2oz double-layer PCB for excellent flexibility, heat dissipation and low voltage drop.
    4. 24V DC input with stable performance and 10W/m power consumption.
    5. High brightness & efficacy up to 75lm/W, supporting multiple color temperatures
    6. Long lifespan up to 50,000 hours with 3-year warranty.
    6. Multiple waterproof options available from IP54 to IP68 for different environments.
    7. Max 5m single-end connection for consistent brightness; parallel connection for longer runs.


    Product Code AL-SLCOB80-FC528V208 AL-SLCOB90-FC528V208
    Input Voltage 24VDC 24VDC
    Power 10W/m 10W/m
    CRI 80 90
    Color Temperature 2700K 3000K 4000K 6500K 2700K 3000K 4000K 6500K
    Flux 550-750lm 550-700lm
    Efficiency 55-75lm/W 55-70lm/W

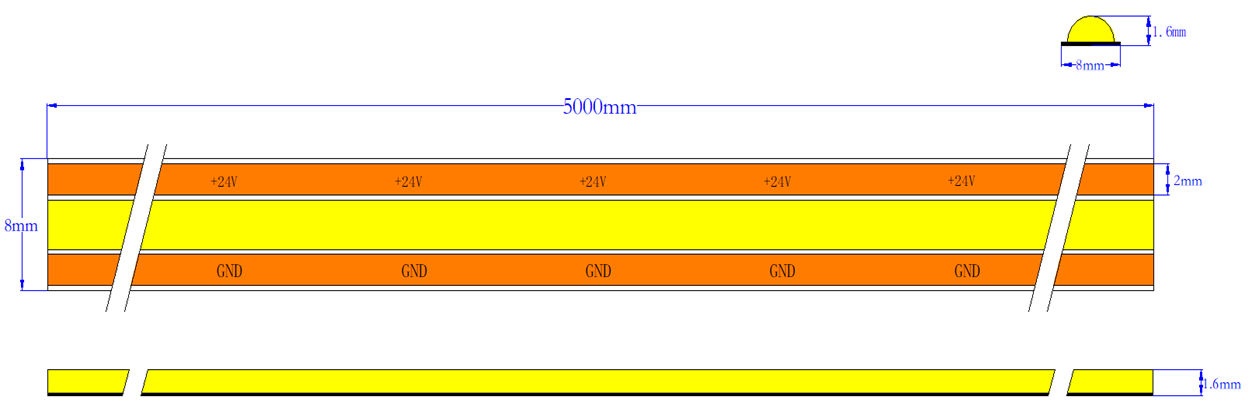

    Dimensions 8 x 1.6 x 5000mm 8 x 1.6 x 5000mm
    Cutting Unit Free Cut Free Cut
    Lifespan 50,000hours 50,000hours
    Working Temperature -20°C - 40°C -20°C - 40°C
    Storage Temperature -20°C - 45°C -20°C - 45°C
    Warranty 3 years 3 years
