2. Ultra-slim size.
3. 316L stainless steel trim, die-casting aluminum housing.
4. CREE LED with high lumen output.
5. RGB 3in1, RGBW 4in1.
6. CE, RoHS and UKCA certification.
You are here：Home >> PRODUCTS >> IP67 Outdoor Lights... >> Ultra-slim Deck Light...

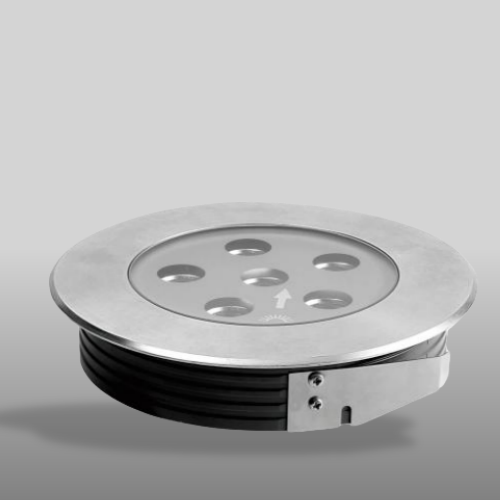

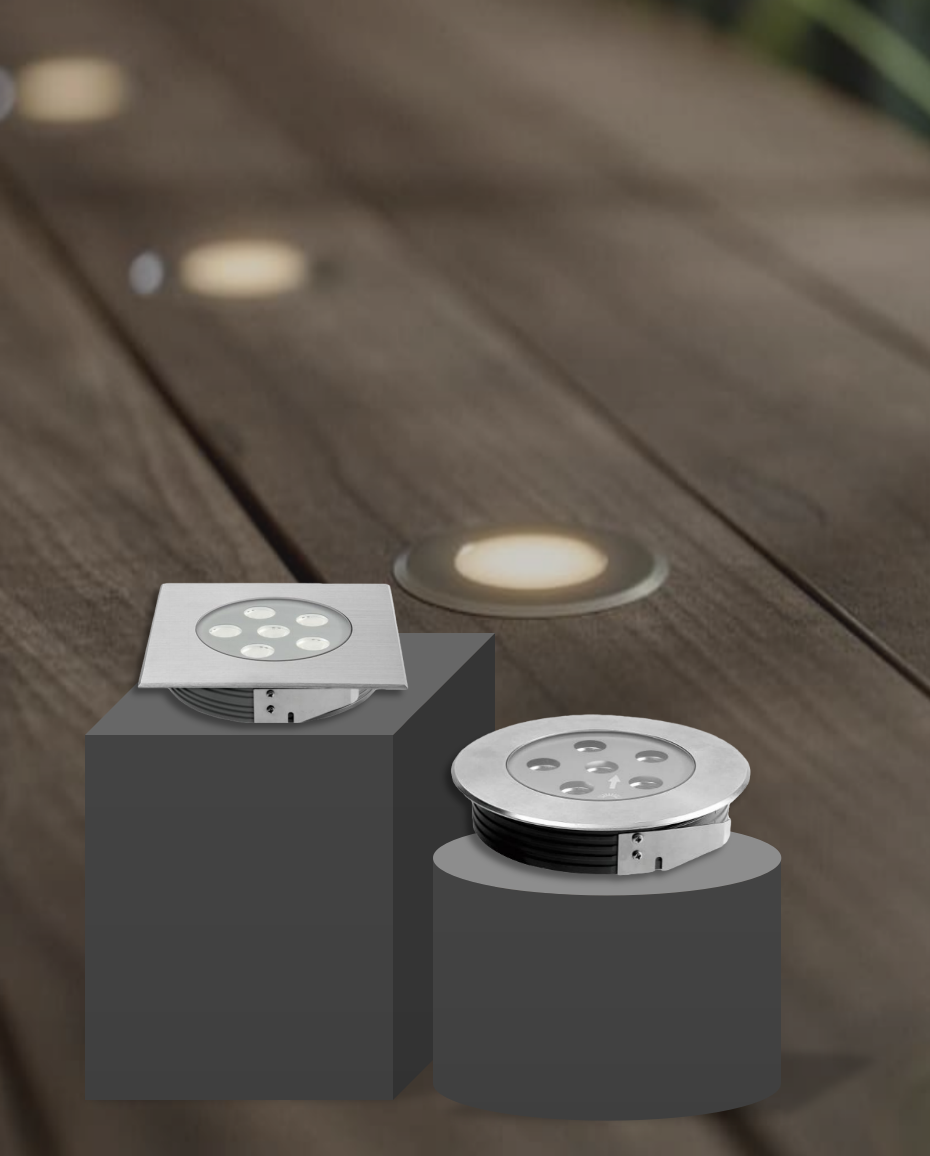

Ultra-slim Deck Light
18W AL-2XC
12W Ultra-slim LED Inground Light
• Product Code: AL-2XC
• LED: 6/9pcs high power LED 36pcs SMD LED
• LED chip: OSRAM CREE EPISTAR
• Power: 4.8-22W

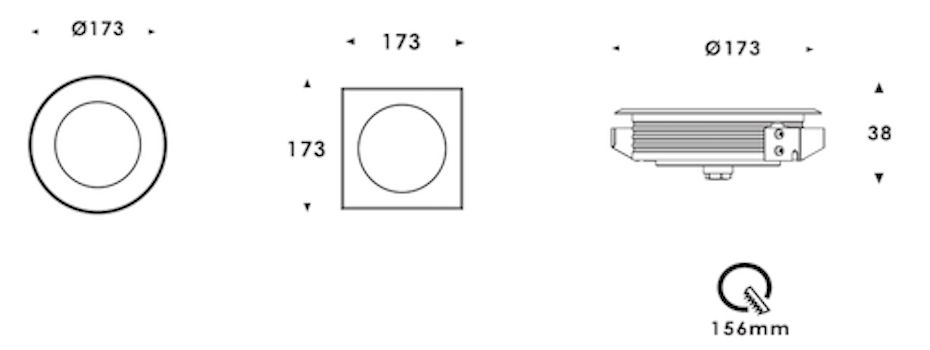

• Dimension: Ø173x38mm/173x173x38mm
• Voltage: 24VDC,220-240VAC
• Color: 2700K 3000K/4000K/5000K/6000K/RGB 3in1
• Beam angle: 10°/25°/45°/60°45|35° 120°
• IP grading: IP67
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty: 3 years
• Certification: CE ROHS UKCA
• Product Code: AL-2XC
• LED: 6/9pcs high power LED 36pcs SMD LED
• LED chip: OSRAM CREE EPISTAR
• Power: 4.8-22W
• Dimension: Ø173x38mm/173x173x38mm
• Voltage: 24VDC,220-240VAC
• Color: 2700K 3000K/4000K/5000K/6000K/RGB 3in1
• Beam angle: 10°/25°/45°/60°45|35° 120°
• IP grading: IP67
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty: 3 years
• Certification: CE ROHS UKCA
1. IP67 waterrpoof for outdoor lighting.
2. Ultra-slim size.
3. 316L stainless steel trim, die-casting aluminum housing.
4. CREE LED with high lumen output.
5. RGB 3in1, RGBW 4in1.
6. CE, RoHS and UKCA certification.
2. Ultra-slim size.
3. 316L stainless steel trim, die-casting aluminum housing.
4. CREE LED with high lumen output.
5. RGB 3in1, RGBW 4in1.
6. CE, RoHS and UKCA certification.
| Item No. | LED | Color | Voltage | Beam angle | Power | Cable |
| AL-2XA-B6 | CREE 6x2W | Single Color | 24VDC | 10/25/45/60°45|35° | 13.2W | 0.5M H05RN-F |
| CREE 6x2W | Single Color | 220-240VAC | 10/25/45/60°45|35° | 12.8W | 0.5M H05RN-F | |
| EPISTAR 6x3W | RGB 3in1 | 24VDC | 10/25/45/60°45|35° | 18.8W | 0.5M H05RN-F | |
| EPISTAR 6x3W | RGB 3in1 DMX512 | 24VDC | 10/25/45/60°45|35° | 18.8W | 0.5M H05RN-F | |
| EPISTAR 6x4W | RGBW 4in1 | 24VDC | 10/25/45/60°45|35° | 22.8W | 0.5M H05RN-F | |
| EPISTAR 6x4W | RGBW 4in1 DMX512 | 24VDC | 10/25/45/60°45|35° | 22.8W | 0.5M H05RN-F | |
| AL-2XA-B9 | CREE 9x1.5W | Single Color | 24VDC | 10/25/45/60° | 14.2W | 0.5M H05RN-F |
| CREE 9x1.5W | Single Color | 220-240VAC | 10/25/45/60° | 14.5W | 0.5M H05RN-F | |
| AL-2XA-D | 36xSMD2835 OSRAM | Single Color | 24VDC | 120° | 5.8W | 0.5M H05RN-F |
| 36xSMD2835 OSRAM | Single Color | 220-240VAC | 120° | 5.8W | 0.5M H05RN-F | |
| 18xSMD5050 EPISTAR | RGB 3in1 | 24VDC | 120° | 6.8W | 0.5M H05RN-F | |
| 18xSMD5050 EPISTAR | RGB 3in1 DMX512 | 24VDC | 120° | 6.8W | 0.5M H05RN-F | |
| 18xSMD5050 EPISTAR | RGBW 4in1 | 24VDC | 120° | 4.8W | 0.5M H05RN-F | |
| 18xSMD5050 EPISTAR | RGBW 4in1 DMX512 | 24VDC | 120° | 4.8W | 0.5M H05RN-F |
