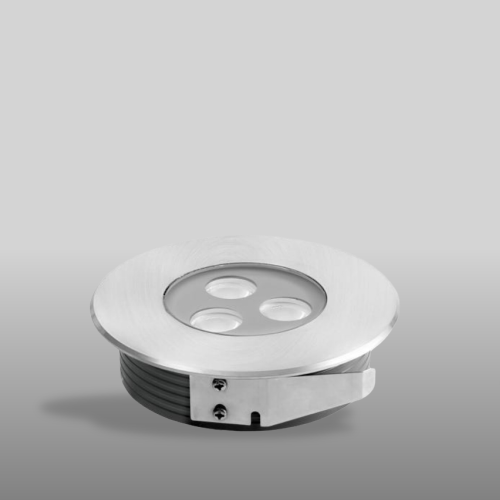

Ultra-slim Deck Light
6W AL-2XB
6W Ultra-slim LED Inground Light
• Product Code: AL-2XB
• LED: 3pcs high power LED 12pcs SMD LED
• LED chip: OSRAM CREE EPISTAR
• Power: 1.2-5.8W

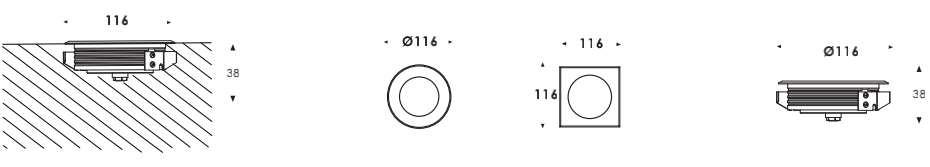

• Dimension: Ø116x38mm/116x116x38mm
• Voltage: 24VDC,220-240VAC
• Color: 2700K 3000K/4000K/5000K/6000K/RGB 3in1
• Beam angle: 10°/25°/45°/60°45|35° 120°
• IP grading: IP67
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty: 3 years
• Certification: CE ROHS UKCA
• Product Code: AL-2XB
• LED: 3pcs high power LED 12pcs SMD LED
• LED chip: OSRAM CREE EPISTAR
• Power: 1.2-5.8W
• Dimension: Ø116x38mm/116x116x38mm
• Voltage: 24VDC,220-240VAC
• Color: 2700K 3000K/4000K/5000K/6000K/RGB 3in1
• Beam angle: 10°/25°/45°/60°45|35° 120°
• IP grading: IP67
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty: 3 years
• Certification: CE ROHS UKCA
1. IP67 waterrpoof for outdoor lighting.
2. Ultra-slim size.
3. 316L stainless steel trim, die-casting aluminum housing.
4. CREE LED with high lumen output.
5. RGB 3in1, RGBW 4in1.
6. CE, RoHS and UKCA certification.
2. Ultra-slim size.
3. 316L stainless steel trim, die-casting aluminum housing.
4. CREE LED with high lumen output.
5. RGB 3in1, RGBW 4in1.
6. CE, RoHS and UKCA certification.
| Item No. | LED | Color | Voltage | Beam angle | Power | Cable |
| AL-2XA-B | CREE 3x2W | Single Color | 24VDC | 10/25/45/60°45|35° | 5.6W | 0.5M H05RN-F |
| CREE 3x2W | Single Color | 220-240VAC | 10/25/45/60°45|35° | 5.8W | 0.5M H05RN-F | |
| EPISTAR 3x2W | RGB 3in1 | 24VDC | 10/25/45/60°45|35° | 6.2W | 0.5M H05RN-F | |
| AL-2XA-D | 12xSMD2835 OSRAM | Single Color | 24VDC | 120° | 1.2W | 0.5M H05RN-F |
| 12xSMD2835 OSRAM | Single Color | 220-240VAC | 120° | 1.5W | 0.5M H05RN-F | |
| 6xSMD5050 EPISTAR | RGB 3in1 | 24VDC | 120° | 1.8W | 0.5M H05RN-F |
