Step Light

12W AL-1BL

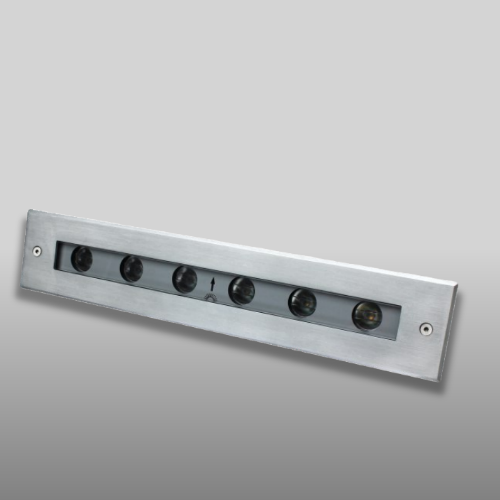

12W Recessed LED Wall Light

• Item No.: AL-1BL
• LED: 6pcs high power LED
• LED chip: OSRAM EPISTAR
• Power: 12W

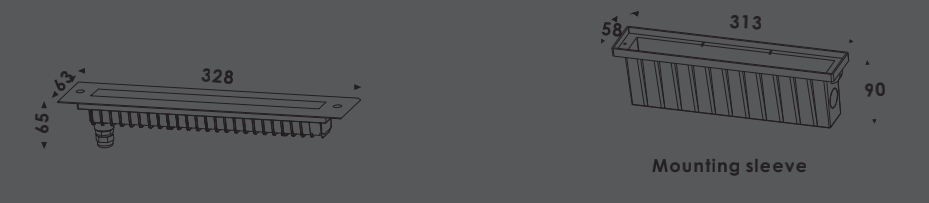

• Dimension: 65x63x328mm
• Voltage: 24VDC 220VAC
• Color temperature: 2700K 3000K 4000K  5000K  6000K
• Color: RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle: 120°
• IP grading: IP65
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material
• Warranty: 2 years
• Certification: CE ROHS
    IP65 for outdoor lighting applications.
    Recessed wall mounting.
    Body in aluminum.
    Finishes in white, black, grey, silve, gold and bespoke color.
    2700K, 3000K, 4000K, 6000K, RGB 3in1, RGBW 4in1.
    DALI, PWM, 0-10V, Triac dimmable.
    High lumen output SMD LED light source.
    5 years warranty, CE, ROHS, UKCA certified.
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-1BL-B CREE 6x2W Single Color 24VDC 45°|35°  11.6W 0.5M  H05RN-F
    CREE 6x2W Single Color 220-240VAC 45°|35°  12.2W 0.5M  H05RN-F
    EPISTAR 6x3W RGB 3in1 24VDC 20*60° 18W 0.5M  H05RN-F
    EPISTAR 6x3W RGB 3in1 DMX512 24VDC 20*60° 18W 0.5M  H05RN-F
    AL-1BL-D 20xSMD2835 OSRAM Single Color 24VDC 120°  4.8W 0.5M  H05RN-F
    24xSMD2835 OSRAM Single Color 220-240VAC 120°  5.2W 0.5M  H05RN-F
    20xSMD2835 EPISTAR RGB 3in1 24VDC 120°  5.4W 0.5M  H05RN-F
    20xSMD2835 EPISTAR RGB 3in1 DMX512 24VDC 120°  5.4W 0.5M  H05RN-F
