Step Light

2W AL-1DSA

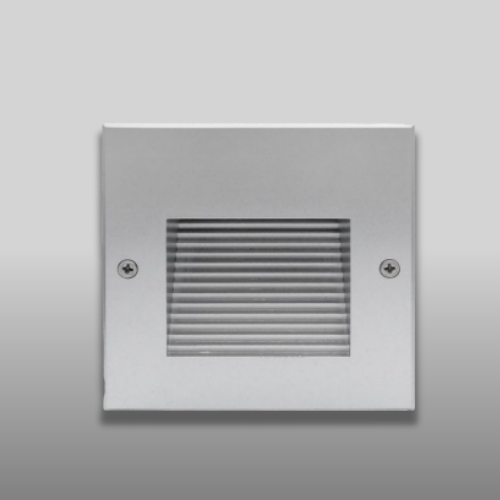

2W Recessed LED Step Light
• Product Code: AL-1DSA
• LED:12xSMD2835 OSRAM LED
• LED chip: OSRAM EPISTAR
• Power: 2W

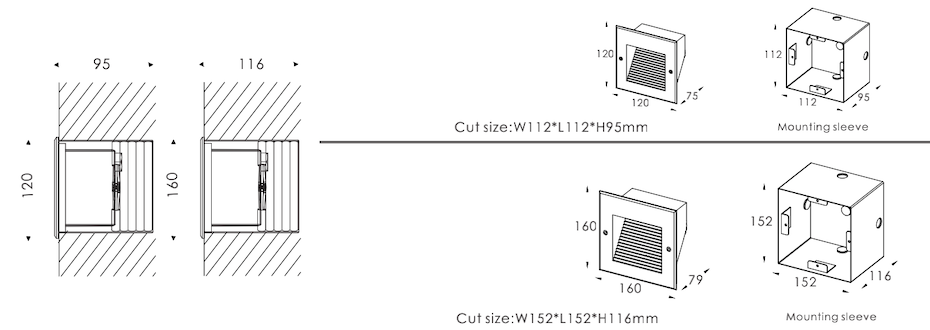

• Dimension:120x120x65mm
• Voltage: 24VDC
• Color temperature: 2700K 3000K 4000K  5000K  6000K
• Beam angle: 120°
• IP grading: IP65
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material
• Warranty: 2 years
• Certification: CE ROHS
    IP65 for outdoor lighting applications.
    Recessed wall mounting.
    Body in aluminum.
    Finishes in white, black, grey, silver and bespoke color.
    2700K, 3000K, 4000K, 6000K.
    High lumen output SMD LED light source.
    5 years warranty, CE, ROHS, UKCA certified.
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-1DSA 12xSMD2835 OSRAM Single Color 24VDC 120°  1.4W 0.5M  H05RN-F
    12xSMD2835 OSRAM Single Color 220-240VAC 120°  1.6W 0.5M  H05RN-F
