Acoustic 18-50W DIANA-DX-A&L Lighting Limited

PRODUCTS

< >

• Product Number: DIANA-DX (X=330/560/660/960)

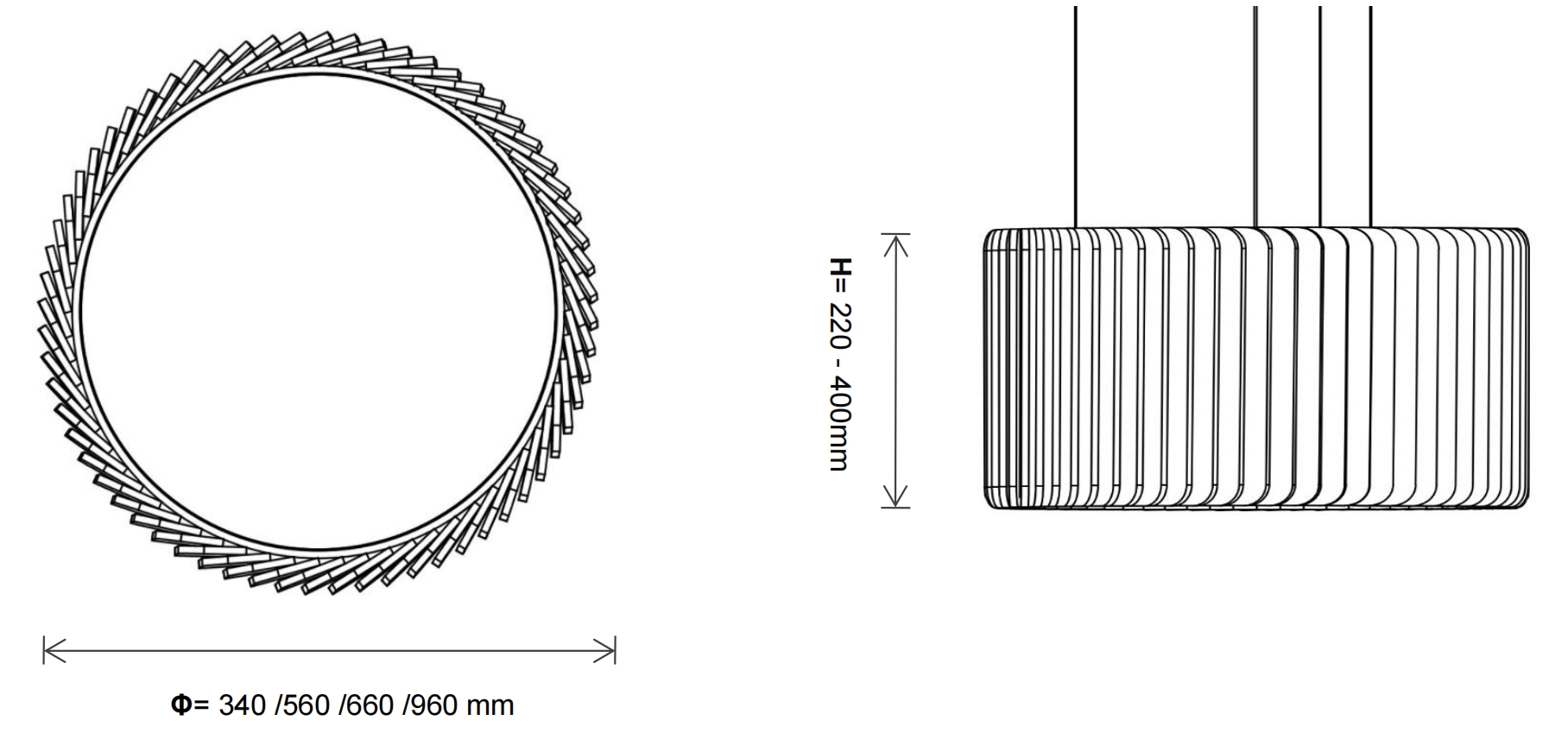

• Housing dimension: ⌀330/560/660/960mm, Height 220-400mm

• Acoustic Panel Thickness & NRC: 9MM(NRC 0.85); 12MM(NRC 0.95)

• PET Felt Finsh: Total 40 color options

• Optic: 90° microprismatic /90° Microcrystalline Film/120° Opal
• Power: 18-50W
• CRI: 90+ 95+

• Distribution: direct

• Installation: Suspension rope & Suspension rod

• Dimming: DALI/0-10V/Triac/PUSH

• Operating Temperature: -20 to 55°C

• Fire Rating: ASTM E84 Class A; EN 13501 Class
• Warranty: 5 years

Product No.	DIANA-DX (X=330, 560, 660, 960)
Color Variation Initial & Color Consistency	SDCM＜5
LED Life Span	L80 50000hours
Driver Power Factor	＞0.9
Control Driver Type	Electronic constant current
Driver Position	Internal
Electrical Protection	Class Ⅱ
LED Flickering Rate	Medium(0.01%-1%) (Flicker-free)
Photobiological Risk Group	RG0
LED Housing Material	Aluminum and sheet metal
LED Housing Processing	Black Powder Coating/ White Powder Coating
Color Temperature	2700K / 4000K / 5700K
Color Rendering Index	CRI 90+ 95+
Voltage	AC 200-240 V / AC 100-277 V
IP Rating	IP 20
Quanlity Warranty	5 Years
