Acoustic Lights

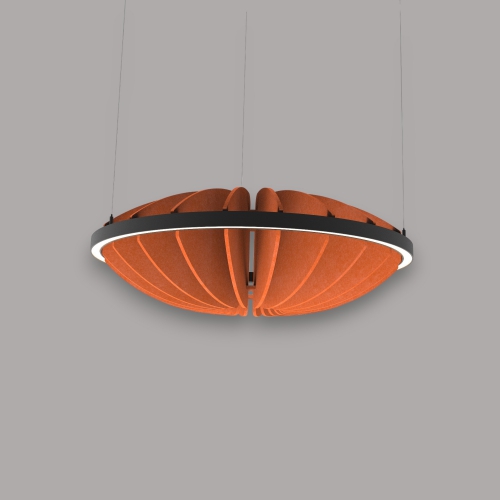

Acoustic 55W ⌀900M APOLLO-ASD900-CT12
• Product Number: APOLLO-ASD900-CT12

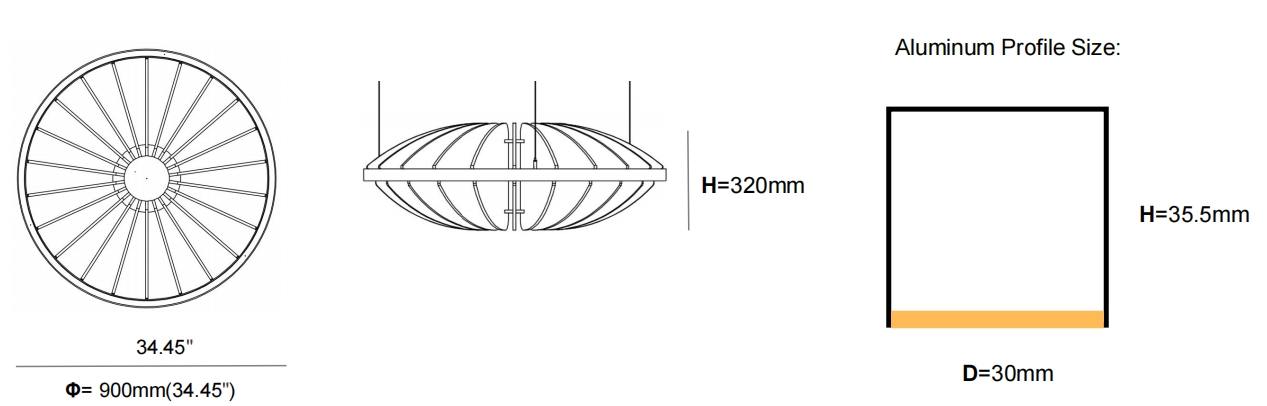

• Housing dimension: ⌀900mm, Height 320mm(12.6")
• PET Felt Thickness: 12MM (density 2400g/m2)
• Sound Absorption Coefficient: NRC=0.95
• PET Felt Finsh: Total 40 color options
• Optic:120° Silicone Board
• Distribute: Direct
• Power supply: DALI driver
• Operating Temperature: -20 to 55°C
• Fire Rating: ASTM E84 Class A; EN 13501 Class B
| Product No. | APOLLO-ASD900-CT12 |
| Material | Polyester+Aluminum+Silicone |
| Product Size | Φ900×H320mm |
| PET Felt Thickness | 12MM |
| Sound Absorption Coefficient | NRC=0.95 |
| Installation | Suspended Mounted |
| Input Voltage | AC 200-240V |
| Optic | 120° Silicone Board |
| Beam Angle | Direct 120° |
| Uniform Glare Value | UGR＜26 |
| Power | 55W |
| Color Temperature | CCT 2700K / 3000K / 4000K / 5700K |
| Color Rendering Index | CRI 90+ |
| Efficacy | 55-60 lm/W |
| Luminous flux | 3025-3300 lm |
| Distribution | 100% Direct |
| Power Supply | DALI driver (DT6) |
| Housing Finish | Black(RAL 9005) / White(RAL 9016) / Gray(RAL 9006) |
| Operating Temperature Range | -20 to 55℃ |
| IP Rating | IP 20 |
| Fireproof and Flame Retardant | EN 13501- 1:2018, Class B, ASTM E84-2020 Class A |
| Quanlity Warranty | 5 Years |
