Projector Light

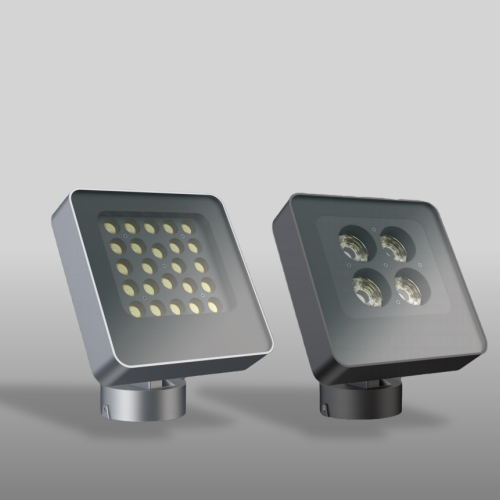

48W AL-3VSB

48W LED Flood Light

• Product Code: AL-3VSB
• LED type: 4x10W COB LED, 24pcs high power LED
• LED Chip: CREE,OSRAM,EPISTAR
• Power: 40W

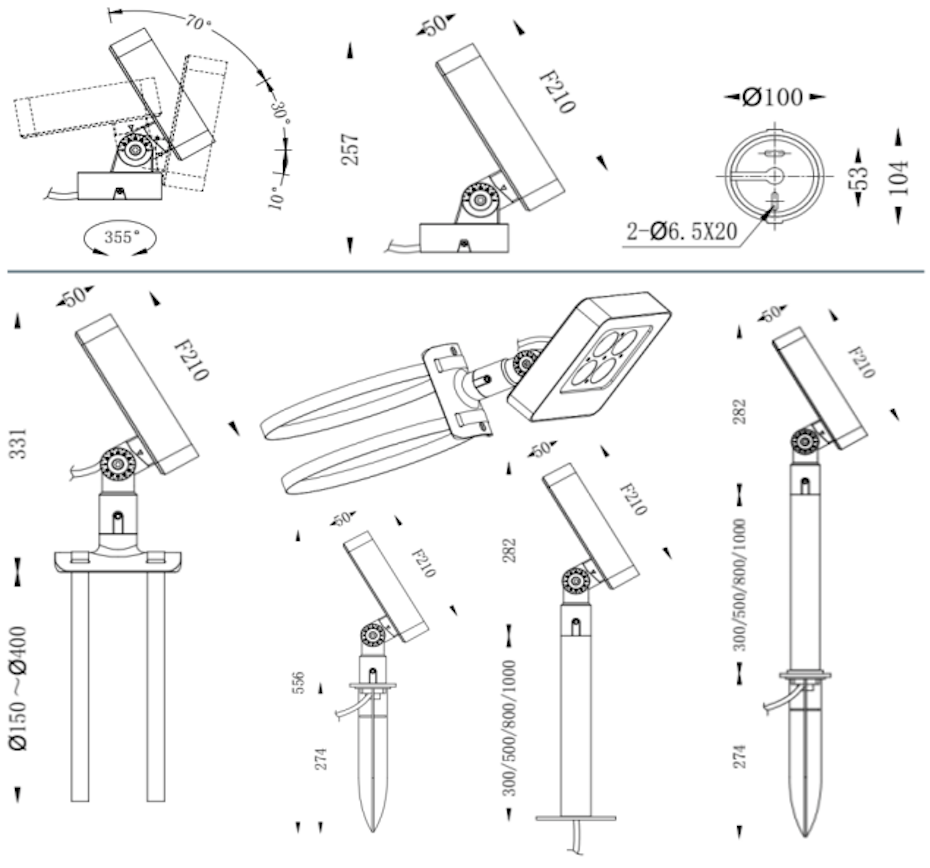

• Dimension: 210x210x257mm
• Voltage: 24VDC, 220-240VAC
• Color temperature: 2700K 3000K 4000K  5000K  6000K
• Colors: RGB 3in1 DMX512, RGBW 4in1
• Beam angle: 3/8° 25 /40/60°
• IP grading: IP66
• Dimmable options: 0-10V, TRIAC, DALI, PWM
• Material: Die-casting aluminum material.
• Warranty: 5 years
• Certification: CE ROHS UKCA


    IP66 for outdoor and indoor lighting applications.
    CREE COB and high power LED light source, high lumen output.
    Four size with power from 24W to 60W.
    RGB 3in1, RGBW 4in1, 2700K, 3000K, 4000K, 6000K, CRI 80+.
    DMX512, Triac, 0-10V, PMW, DALI dimmable.
    Body in die-casting aluminum housing with powder coating suitable for coastal applications.
    Grey, black, white, green and bespoke finishes.

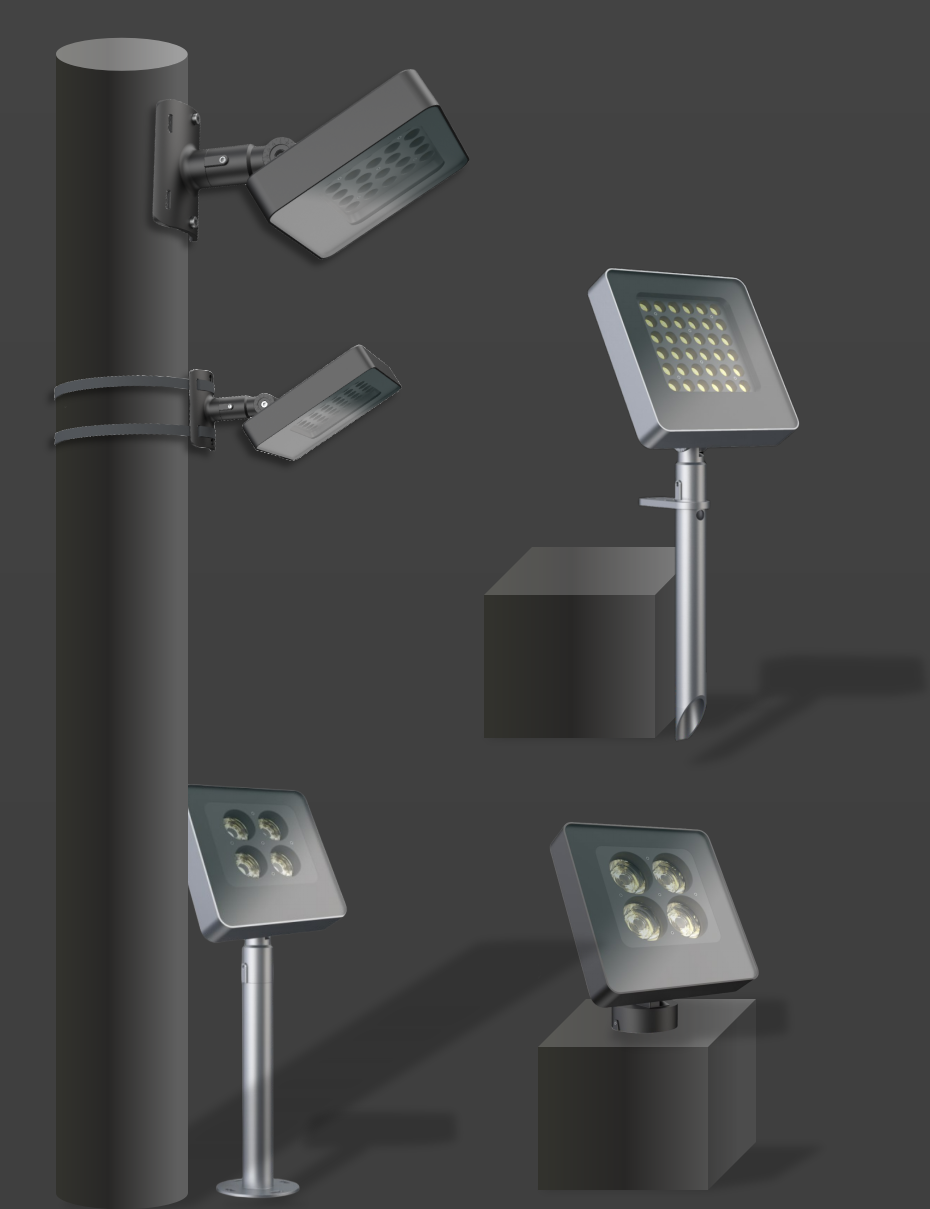

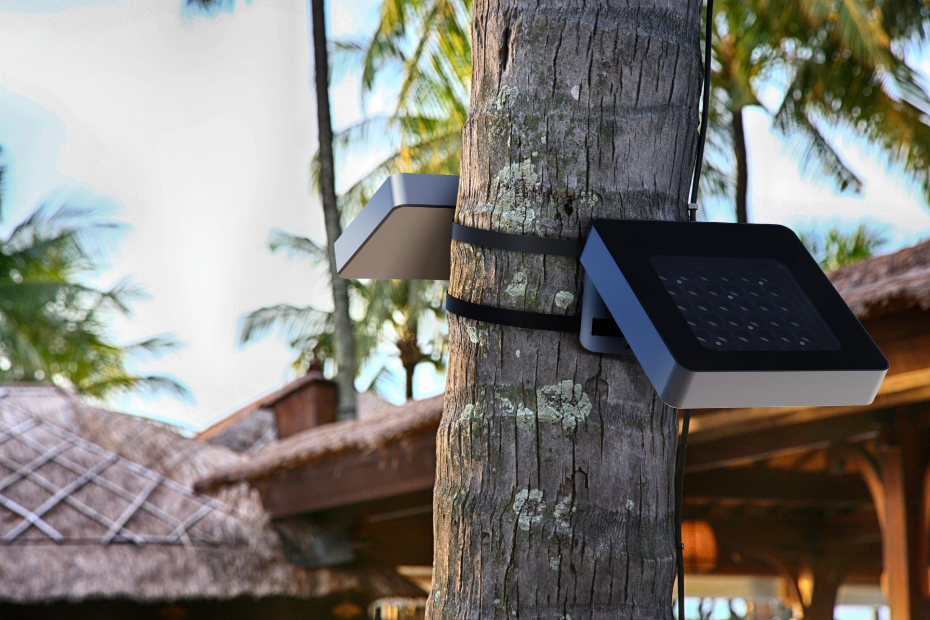

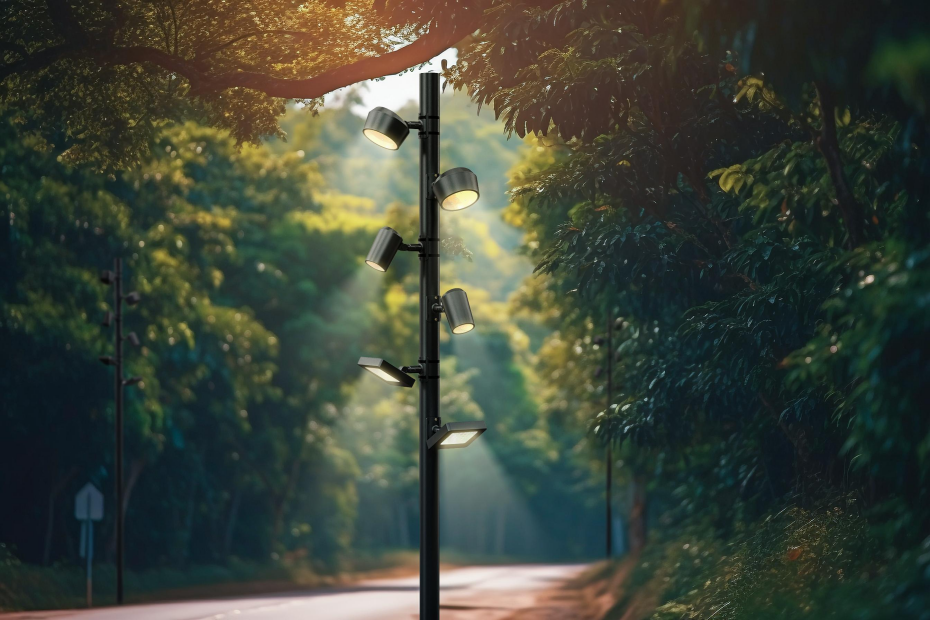

    Various mounting options: ceiling, wall, ground, spike, tree, high mast.
    5 years warranty, CE, ROHS, UKCA certified.


    Item No. LED Color Voltage Beam angle  Power Cable
    AL-3VSB-S CREE 12x4W Single Color DC24V 3/8° 48W 0.5M  H05RN-F
    CREE 12x4W Single Color 220-240VAC 3/8° 48W 0.5M  H05RN-F
    CREE 12x4W Single Color 220-240VAC
    TRIAC dimmable    		 3/8° 48W 0.5M  H05RN-F
    CREE 12x4W Single Color 220-240VAC
    0-10V dimmable    		 3/8° 48W 0.5M  H05RN-F
    CREE 12x4W Single Color 220-240VAC
    DALI dimmable    		 3/8° 48W 0.5M  H05RN-F
    CREE 12x4W Single Color DMX512 DC24V 3/8° 48W 0.5M  H05RN-F
    CREE 12x4W Single Color DMX512 220-240VAC 3/8° 48W 0.5M  H05RN-F
    CREE 12x4W RGBW 4in1 DMX512 DC24V 3/8° 48W 0.5M  H05RN-F
    CREE 12x4W RGBW 4in1 DMX512 220-240VAC 3/8° 48W 0.5M  H05RN-F
    AL-3VSB-R CREE 4x10W Single Color DC24V 3/8° 40W 0.5M  H05RN-F
    CREE 4x10W Single Color 220-240VAC 3/8° 40W 0.5M  H05RN-F
    CREE 4x10W Single Color 220-240VAC
    TRIAC dimmable    		 3/8° 40W 0.5M  H05RN-F
    CREE 4x10W Single Color 220-240VAC
    0-10V dimmable    		 3/8° 40W 0.5M  H05RN-F
    CREE 4x10W Single Color 220-240VAC
    DALI dimmable    		 3/8° 40W 0.5M  H05RN-F
    CREE 4x10W Single Color DMX512 DC24V 3/8° 40W 0.5M  H05RN-F
    CREE 4x10W Single Color DMX512 220-240VAC 3/8° 40W 0.5M  H05RN-F
    AL-3VSB-B CREE 24x2W Single Color DC24V 25 /40/60° 48W 0.5M  H05RN-F
    CREE 24x2W Single Color 220-240VAC 25 /40/60° 48W 0.5M  H05RN-F
    CREE 24x2W Single Color 220-240VAC
    TRIAC dimmable    		 25 /40/60° 48W 0.5M  H05RN-F
    CREE 24x2W Single Color 220-240VAC
    0-10V dimmable    		 25 /40/60° 48W 0.5M  H05RN-F
    CREE 24x2W Single Color 220-240VAC
    DALI dimmable    		 25 /40/60° 48W 0.5M  H05RN-F
    CREE 24x2W Single Color DMX512 DC24V 25 /40/60° 48W 0.5M  H05RN-F
    CREE 24x2W Single Color DMX512 220-240VAC 25 /40/60° 48W 0.5M  H05RN-F
    CREE 24x3W RGB 3in1 DMX512 DC24V 25 /40/60° 48W 0.5M  H05RN-F
    CREE 24x3W RGB 3in1 DMX512 220-240VAC 25 /40/60° 48W 0.5M  H05RN-F
    CREE 24x3W RGBW 4in1 DMX512 DC24V 25 /40/60° 48W 0.5M  H05RN-F
    CREE 24x3W RGBW 4in1 DMX512 220-240VAC 25 /40/60° 48W 0.5M  H05RN-F
