Projector Light

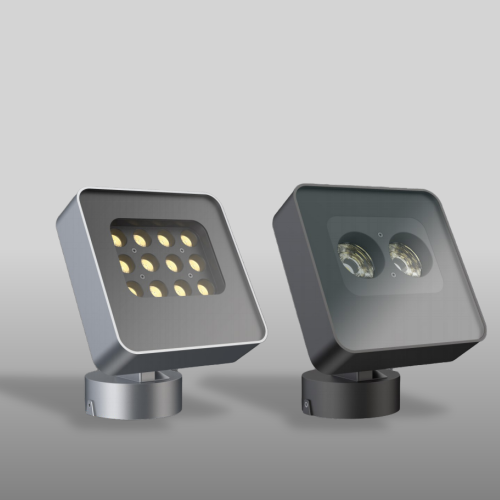

24W AL-3VSA
24W Square Shape Flood Light
• Item No.: AL-3VSA

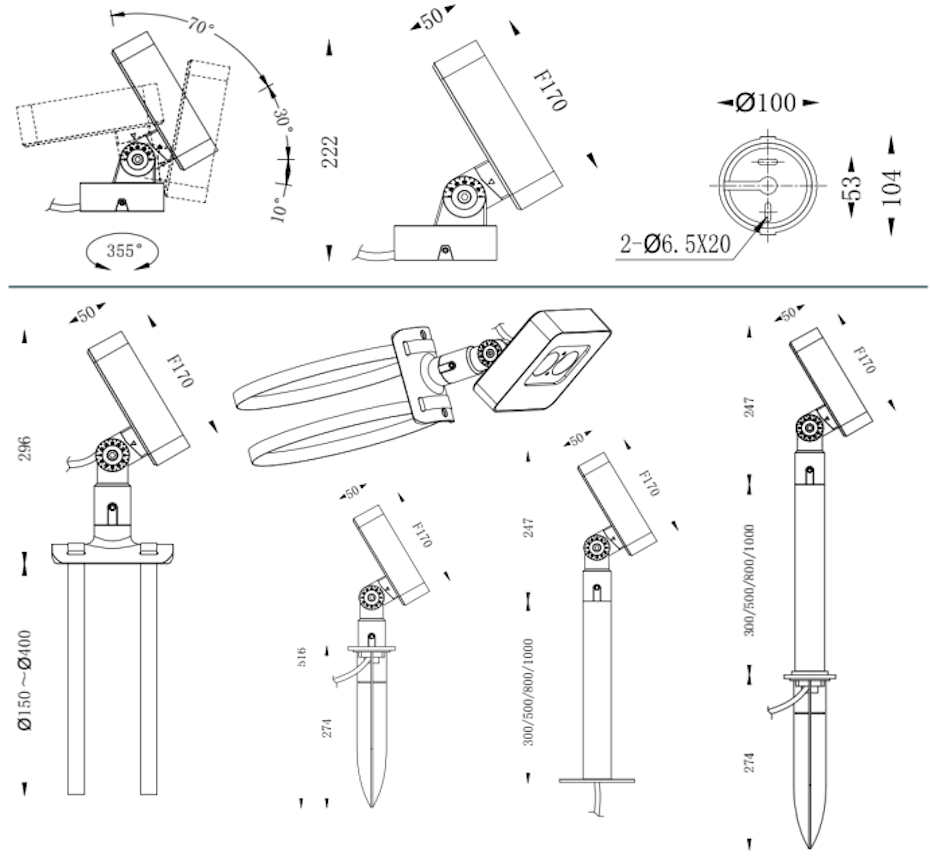

• Dimension: 170x170x220mm
• Voltage: 24VDC, 220-240VAC
• IP grading: IP66
• Dimmable options: 0-10V, TRIAC, DALI, PWM
• Material: Die-casting aluminum material.
• Warranty: 5 years
• Certification: CE ROHS UKCA
• Item No.: AL-3VSA
• LED type: 2x12W COB LED, 12pcs high power LED
• LED Chip: CREE,OSRAM,EPISTAR
• Power: 24W• Dimension: 170x170x220mm
• Voltage: 24VDC, 220-240VAC
• Color temperature: 2700K 3000K 4000K 5000K 6000K
• Colors: RGB 3in1 DMX512, RGBW 4in1
• Beam angle: 3/8° 25 /40/60° • IP grading: IP66
• Dimmable options: 0-10V, TRIAC, DALI, PWM
• Material: Die-casting aluminum material.
• Warranty: 5 years
• Certification: CE ROHS UKCA
| Item No. | LED | Color | Voltage | Beam angle | Power | Cable |
| AL-3VSA-S | CREE 6x4W | Single Color | DC24V | 3/8° | 24W | 0.5M H05RN-F |
| CREE 6x4W | Single Color | 220-240VAC | 3/8° | 24W | 0.5M H05RN-F | |
| CREE 6x4W | Single Color | 220-240VAC TRIAC dimmable |
3/8° | 24W | 0.5M H05RN-F | |
| CREE 6x4W | Single Color | 220-240VAC 0-10V dimmable |
3/8° | 24W | 0.5M H05RN-F | |
| CREE 6x4W | Single Color | 220-240VAC DALI dimmable |
3/8° | 24W | 0.5M H05RN-F | |
| CREE 6x4W | Single Color DMX512 | DC24V | 3/8° | 24W | 0.5M H05RN-F | |
| CREE 6x4W | Single Color DMX512 | 220-240VAC | 3/8° | 24W | 0.5M H05RN-F | |
| CREE 6x4W | RGBW 4in1 DMX512 | DC24V | 3/8° | 24W | 0.5M H05RN-F | |
| CREE 6x4W | RGBW 4in1 DMX512 | 220-240VAC | 3/8° | 24W | 0.5M H05RN-F | |
| AL-3VSA-R | CREE 2x12W | Single Color | DC24V | 3/8° | 24W | 0.5M H05RN-F |
| CREE 2x12W | Single Color | 220-240VAC | 3/8° | 24W | 0.5M H05RN-F | |
| CREE 2x12W | Single Color | 220-240VAC TRIAC dimmable |
3/8° | 24W | 0.5M H05RN-F | |
| CREE 2x12W | Single Color | 220-240VAC 0-10V dimmable |
3/8° | 24W | 0.5M H05RN-F | |
| CREE 2x12W | Single Color | 220-240VAC DALI dimmable |
3/8° | 24W | 0.5M H05RN-F | |
| CREE 2x12W | Single Color DMX512 | DC24V | 3/8° | 24W | 0.5M H05RN-F | |
| CREE 2x12W | Single Color DMX512 | 220-240VAC | 3/8° | 24W | 0.5M H05RN-F | |
| AL-3VSA-B | CREE 12x3W | Single Color | DC24V | 25 /40/60° | 24W | 0.5M H05RN-F |
| CREE 12x3W | Single Color | 220-240VAC | 25 /40/60° | 24W | 0.5M H05RN-F | |
| CREE 12x3W | Single Color | 220-240VAC TRIAC dimmable |
25 /40/60° | 24W | 0.5M H05RN-F | |
| CREE 12x3W | Single Color | 220-240VAC 0-10V dimmable |
25 /40/60° | 24W | 0.5M H05RN-F | |
| CREE 12x3W | Single Color | 220-240VAC DALI dimmable |
25 /40/60° | 24W | 0.5M H05RN-F | |
| CREE 12x3W | Single Color DMX512 | DC24V | 25 /40/60° | 24W | 0.5M H05RN-F | |
| CREE 12x3W | Single Color DMX512 | 220-240VAC | 25 /40/60° | 24W | 0.5M H05RN-F | |
| CREE 12x3W | RGB 3in1 DMX512 | DC24V | 25 /40/60° | 24W | 0.5M H05RN-F | |
| CREE 12x3W | RGB 3in1 DMX512 | 220-240VAC | 25 /40/60° | 24W | 0.5M H05RN-F | |
| CREE 12x3W | RGBW 4in1 DMX512 | DC24V | 25 /40/60° | 24W | 0.5M H05RN-F | |
| CREE 12x3W | RGBW 4in1 DMX512 | 220-240VAC | 25 /40/60° | 24W | 0.5M H05RN-F |
