Projector Light

40W AL-3VBD

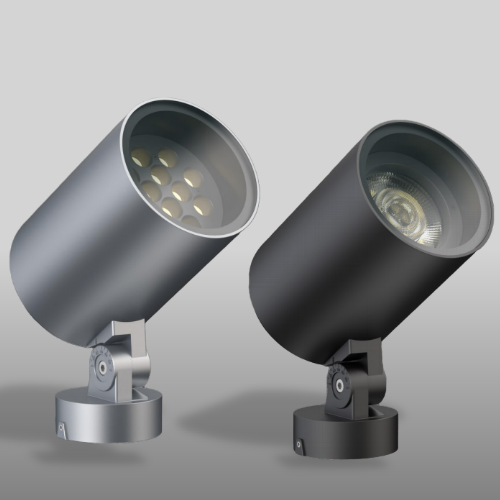

40W LED Multi-use Garden Spotlight

• Product Code: AL-3VBD
• LED type: 6x10W 1x50W COB LED,6pcs high power LED
• LED Chip: CREE, OSRAM, EPISTAR
• Power: 40W
• Dimension: Ø150x303mm
• Voltage: 24VDC, 220-240VAC
• Color temperature: 2700K 3000K 4000K  5000K  6000K
• Colors: RGB 3in1 DMX512,RGBW 4in1
• Beam angle: 3/8°  18/24/38/60°  25 /40/60°
• IP grading: IP66
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty: 5 years
• Certification: CE ROHS UKCA
    IP66 for outdoor lighting applications.
    CREE COB and high power SMD LED light source, high lumen output.
    Four size with power from 6W to 40W.
    RGB 3in1, RGBW 4in1, 2700K, 3000K, 4000K, 6000K, CRI 80+.
    DMX512, Triac, 0-10V, PMW, DALI dimmable.
    Body in die-casting aluminum housing with powder coating suitable for coastal application.
    5 years warranty, CE, ROHS, UKCA certified.
    Grey, black, white, green and bespoke finishes.

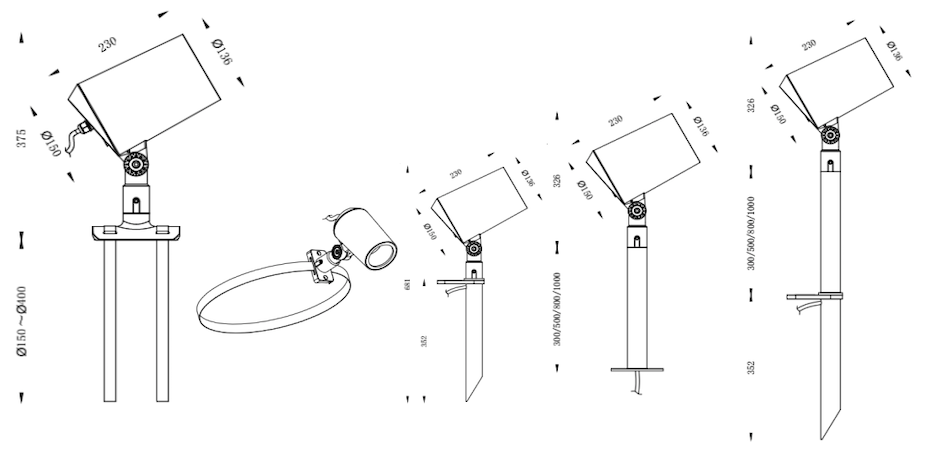

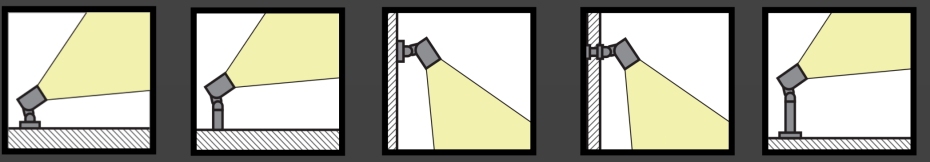

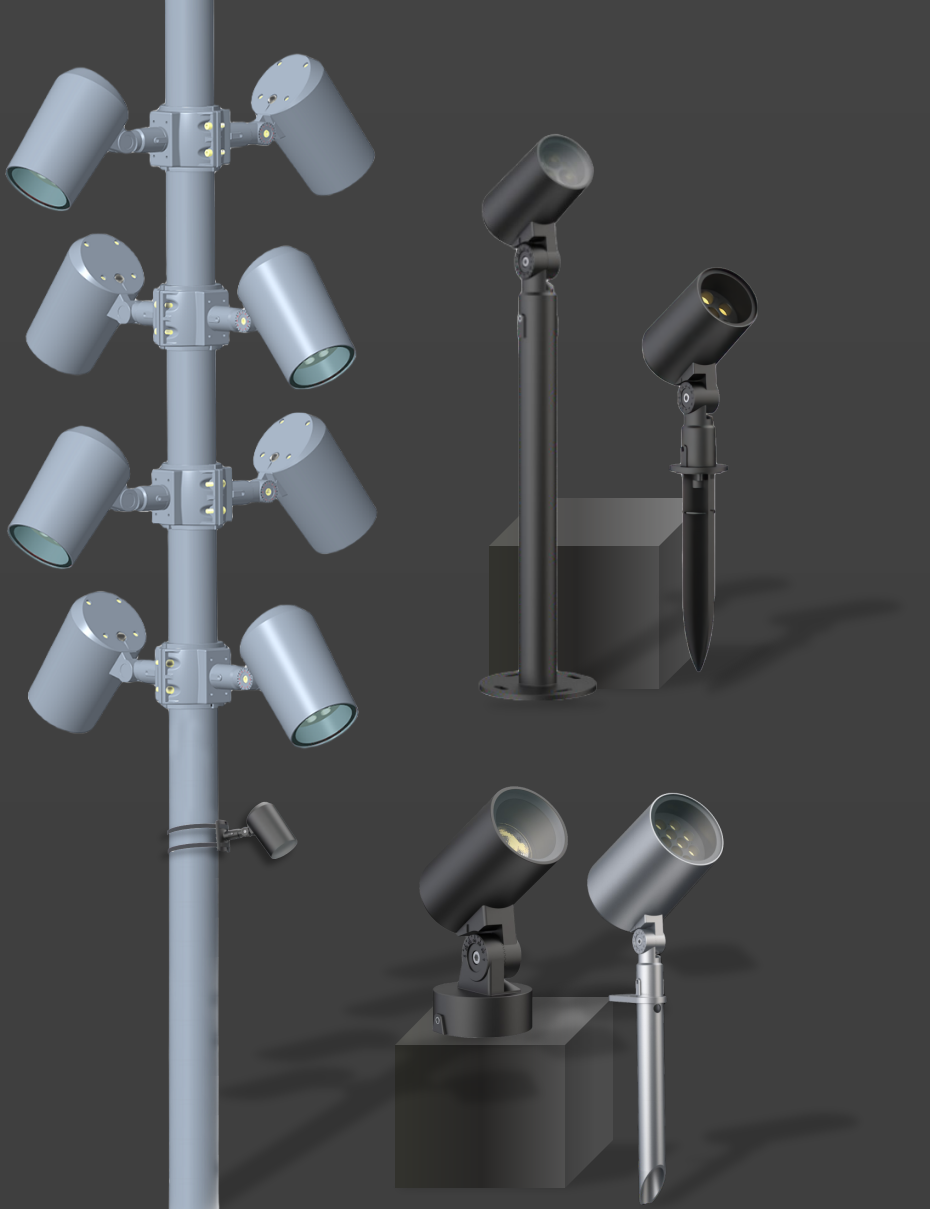

    Various mounting options: ceiling, wall, ground, spike, tree, high mast.


    Various optics
    Product No.
    LED
    LED Color
    Voltage
    Dimmable
    Beam Angle
    Power
    Power Cable



    AL-3VBD-S
    CREE 6x10W
    2700-6000K
    24VDC
    NO
    3/6/8°
    46W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    220-240VAC
    NO
    3/6/8°
    36W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    220-240VAC
    Triac
    3/6/8°
    40W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    220-240VAC
    0-10V
    3/6/8°
    40W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    220-240VAC
    DALI
    3/6/8°
    40W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    24VDC
    DMX512
    3/6/8°
    40W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    220-240VAC
    DMX512
    3/6/8°
    40W
    0.5M H05RN-F



    AL-3VBD-R
    CREE 1x50W
    2700-6000K
    24VDC
    NO
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    220-240VAC
    NO
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    220-240VAC
    Triac
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    220-240VAC
    0-10V
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    220-240VAC
    DALI
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    24VDC
    DMX512
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    220-240VAC
    DMX512
    18/24/38/60°
    40W
    0.5M H05RN-F





    AL-3VBD-B
    CREE 12x4W
    2200-6500K
    24VDC
    NO
    6/12/25 /40/60°
    46W
    0.5M H05RN-F
    CREE 12x4W
    2700-6000K
    220-240VAC
    NO
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    CREE 12x4W
    2700-6000K
    220-240VAC
    Triac
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    CREE 12x4W
    2700-6000K
    220-240VAC
    0-10V
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    CREE 12x4W
    2700-6000K
    220-240VAC
    DALI
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    CREE 12x4W
    2200-6500K
    24VDC
    DMX512
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    CREE 12x4W
    2200-6500K
    220-240VAC
    DMX512
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    OSRAM 12x3W
    RGB 3in1
    24VDC
    DMX512
    6/12/25 /40/60°
    36W
    0.5M H05RN-F
    OSRAM 12x3W
    RGB 3in1
    220-240VAC
    DMX512
    6/12/25 /40/60°
    36W
    0.5M H05RN-F
    OSRAM 12x4W
    RGBW 4in1
    24VDC
    DMX512
    6/12/25 /40/60°
    36W
    0.5M H05RN-F
    OSRAM 12x4W
    RGBW 4in1
    220-240VAC
    DMX512
    6/12/25 /40/60°
    36W
    0.5M H05RN-F
