Projector Light

22W AL-3VBC

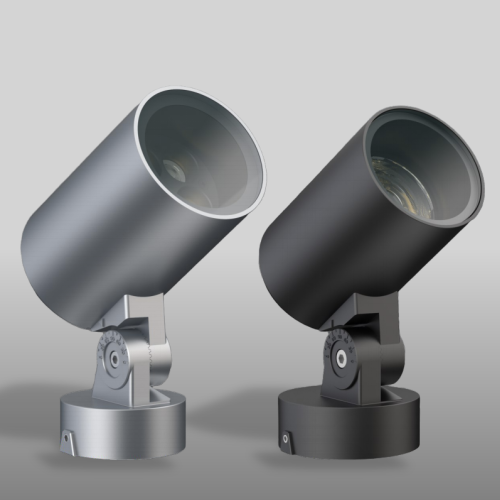

22W LED Multi-use Garden Spotlight

• Product Code: AL-3VBC
• LED type: 3x10W 1x25W COB LED,6pcs high power LED
• LED Chip: CREE, OSRAM, EPISTAR
• Power: 22W

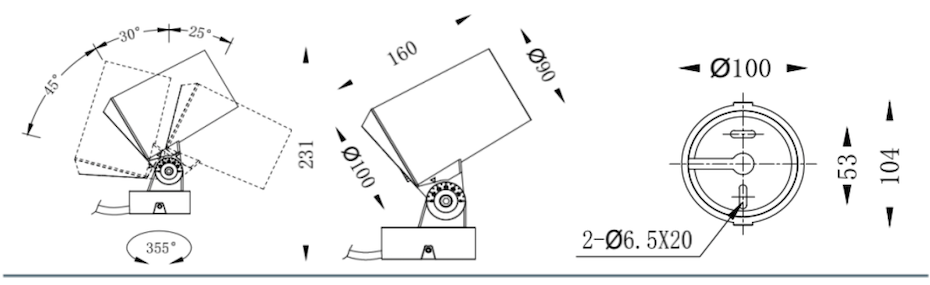

• Dimension: Ø100x231mm
• Voltage: 24VDC, 220-240VAC
• Color temperature: 2700K 3000K 4000K  5000K  6000K
• Colors: RGB 3in1 DMX512, RGBW 4in1
• Beam angle: 3/8°  18/24/38/60°  25 /40/60°
• IP grading: IP66
• Dimmable options: 0-10V, TRIAC, DALI, PWM
• Material: Die-casting aluminum material.
• Warranty: 5 years
• Certification: CE ROHS UKCA
    IP66 for outdoor lighting applications.
    CREE COB and high power SMD LED light source, high lumen output.
    Four size with power from 6W to 40W.
    RGB 3in1, RGBW 4in1, 2700K, 3000K, 4000K, 6000K, CRI 80+.
    DMX512, Triac, 0-10V, PMW, DALI dimmable.
    Body in die-casting aluminum housing with powder coating suitable for coastal application.
    5 years warranty, CE, ROHS, UKCA certified.
    Grey, black, white, green and bespoke finishes.

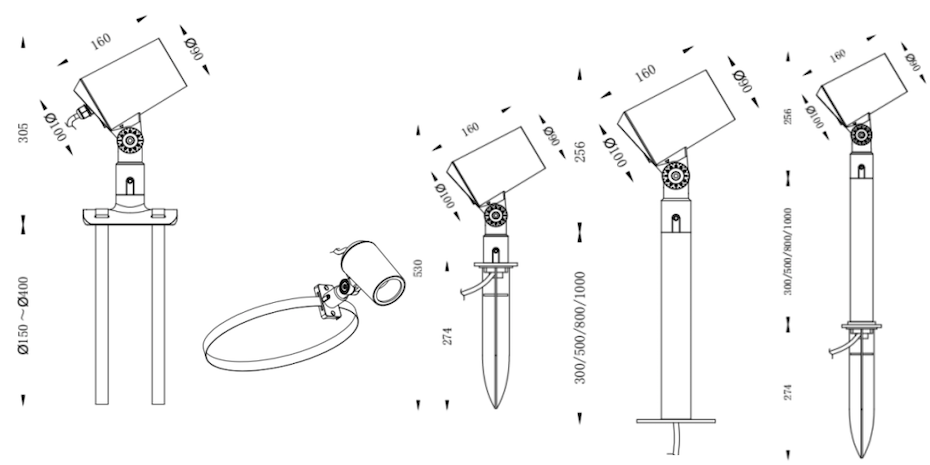

    Various mounting options: ceiling, wall, ground, spike, tree, high mast.


    Various optics
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-3VBC-S CREE 3x10W Single Color DC24V 3/8° 22W 0.5M  H05RN-F
    CREE 3x10W Single Color 220-240VAC 3/8° 22W 0.5M  H05RN-F
    CREE 3x10W Single Color 220-240VAC
    TRIAC dimmable    		 3/8° 22W 0.5M  H05RN-F
    CREE 3x10W Single Color 220-240VAC
    DALI dimmable    		 3/8° 22W 0.5M  H05RN-F
    CREE 3x10W Single Color 220-240VAC
    0-10V dimmable    		 3/8° 22W 0.5M  H05RN-F
    CREE 3x10W Single Color DMX512 DC24V 18/24/38/60° 22W 0.5M  H05RN-F
    CREE 3x10W Single Color DMX512 220-240VAC 18/24/38/60° 22W 0.5M  H05RN-F
    AL-3VBC-R CREE 1x25W Single Color DC24V 18/24/38/60° 20W 0.5M  H05RN-F
    CREE 1x15W Single Color 220-240VAC 18/24/38/60° 20W 0.5M  H05RN-F
    CREE 1x25W Single Color 220-240VAC
    TRIAC dimmable    		 18/24/38/60° 20W 0.5M  H05RN-F
    CREE 1x25W Single Color 220-240VAC
    0-10V dimmable    		 18/24/38/60° 20W 0.5M  H05RN-F
    CREE 1x25W Single Color 220-240VAC
    DALI dimmable    		 18/24/38/60° 20W 0.5M  H05RN-F
    CREE 1x25W Single Color DMX512 DC24V 18/24/38/60° 20W 0.5M  H05RN-F
    CREE 1x25W Single Color DMX512 220-240VAC 18/24/38/60° 20W 0.5M  H05RN-F
    CREE 1x25W RGBW 4in1 DMX512 DC24V 18/24/38/60° 4.8W 0.5M  H05RN-F
    CREE 1x10W RGBW 4in1 DMX512 220-240VAC 18/24/38/60° 4.8W 0.5M  H05RN-F
    AL-3VBC-B CREE 6x4W Single Color DC24V 25 /40/60° 18W 0.5M  H05RN-F
    CREE 6x4W Single Color 220-240VAC 25 /40/60° 18W 0.5M  H05RN-F
    CREE 6x4W Single Color 220-240VAC
    TRIAC dimmable    		 25 /40/60° 18W 0.5M  H05RN-F
    CREE 6x4W Single Color 220-240VAC
    0-10V dimmable    		 25 /40/60° 20W 0.5M  H05RN-F
    CREE 6x4W Single Color 220-240VAC
    DALI dimmable    		 25 /40/60° 20W 0.5M  H05RN-F
    CREE 6x4W Single Color DMX512 DC24V 25 /40/60° 18W 0.5M  H05RN-F
    CREE 6x3W Single Color DMX512 220-240VAC 25 /40/60° 18W 0.5M  H05RN-F
    CREE 6x3W RGB 3in1 DMX512 DC24V 25 /40/60° 18W 0.5M  H05RN-F
    CREE 6x3W RGB 3in1 DMX512 220-240VAC 25 /40/60° 20W 0.5M  H05RN-F
    CREE 6x4W RGBW 4in1 DMX512 DC24V 25 /40/60° 18W 0.5M  H05RN-F
    CREE 6x4W RGBW 4in1 DMX512 220-240VAC 25 /40/60° 18W 0.5M  H05RN-F
