Linear Light

SLIM-L3874-BL

38 x 74mm Slim LED Linear Light

• Item No.: SLIM-L3874-BL
• LED Power: 36W
• LED Type: 2835SMD
• SDCM: <5
• Material: Aluminum + PC
• Installation: Suspended / Surface
• Voltage: AC200-240V/ AC100-277V
• Optic: 90° Blade Louver
• UGR: <19
• CRI: >90
• Efficiency: 40-45lm/W
• Luminous Flux: 1440-1620lm
• Distribution: 100% direct
• Dimensions: L1122 x W38 xH74mm

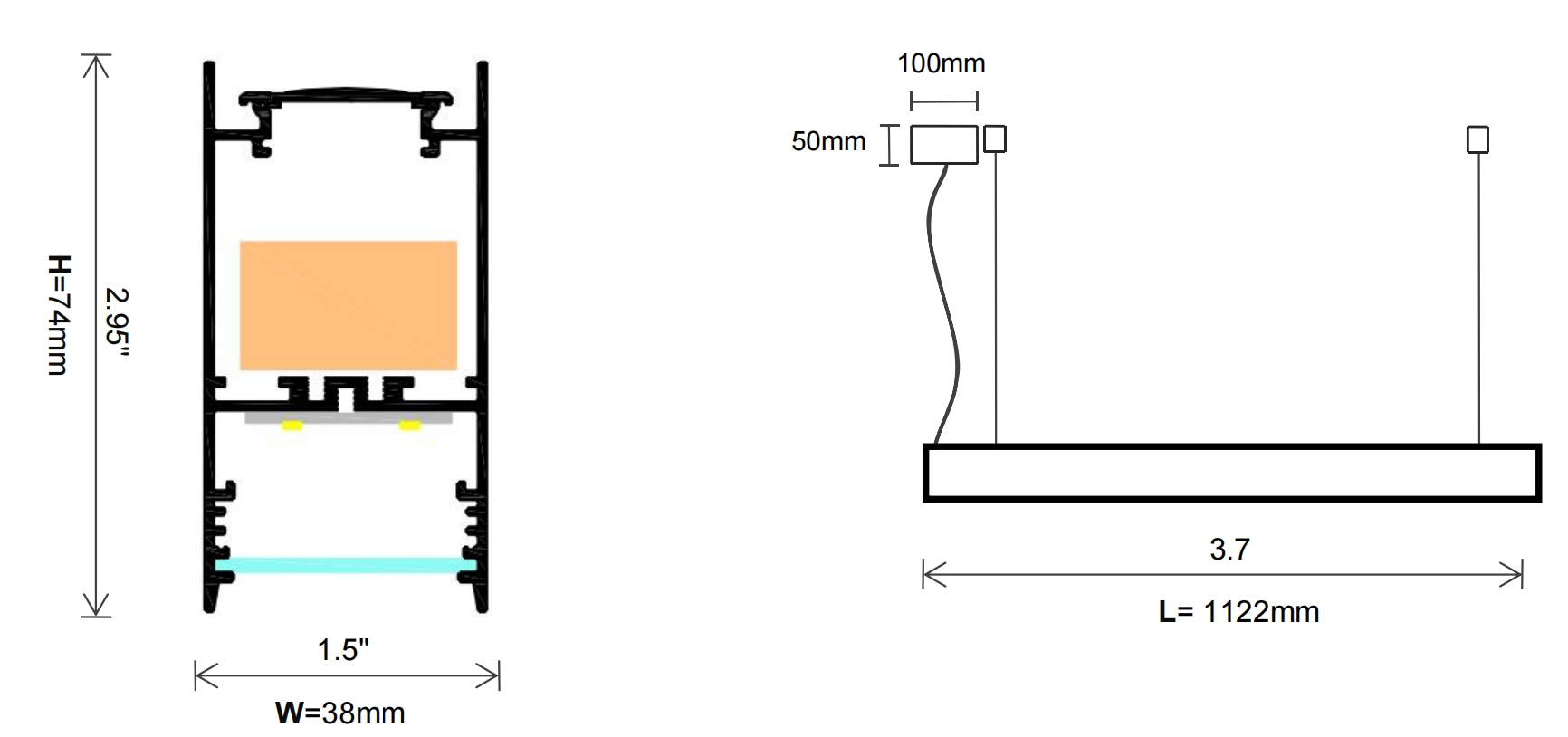

    1. Slim linear design, L1122×W38×H74mm.
    2. UGR<19 anti‑glare, 90° I‑shaped louver for visual comfort.
    3. 36W output, uniform direct lighting with no shadows or glare.
    4. CRI 90+ / R9>67, true color rendering, SDCM<5.
    5. Multi‑CCT optional: 2700K/3000K/4000K/5700K.
    6. Flicker‑free (RG0), safe for long‑time office use.
    7. Aluminum+PC body, powder coated, dust & insect proof.

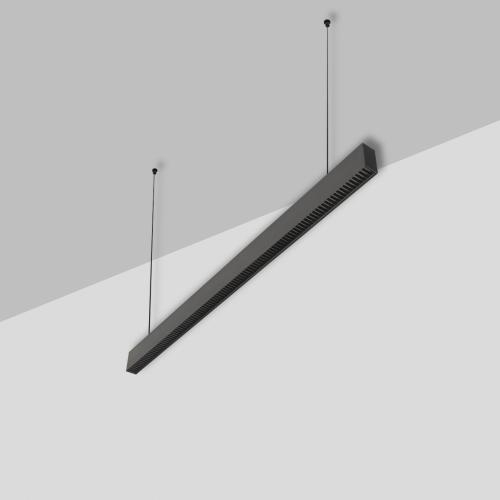

    8. Suspended & surface mount dual installation.
    9. 50,000hrs lifespan + 5 years warranty
    Product Code SLIM-3874-BL
    Material Aluminum + PC
    Dimensions L1122 x W38 x H74MM
    Installation Suspended / Surface
    Input Voltage AC200-240V
    Optic Blade Louver
    Beam Angle 90°
    UGR <19
    Power 36W
    Color Temperature 2700K 3000K 4000K 5700K
    CRI >90
    Efficiency 40-45lm/W
    Luminous Flux 1440-1620lm
    Distribution 100% direct
    Control ON/OFF
    Housing Finish Color White (RAL 9016/ RAL 9003)
    Black (RAL 9005)
    IP Rating 20
    Nominal Frequency  50/60 Hz
    LED Type SMD LED
    LED Chip Brand LUMILEDS
    R9 Color Rendering Index Value R9>67
    Color Variation Initial & Color Consistency SDCM<5
    Lifesppan  L80B50 50000hours
    Driver Power Factor  >0.95
    Driver Efficiency  ≥88%
    THD  <15%
    Driver Glow Wire Test 750℃
    Driver Position  External
    Electrical Protection  Class II
    Photobiological Risk Group  RG0
    Housing Material Aluminum 6063-T6
    Housing Processing  Powder coating
