Window Light

3W AL-1WOL-S1

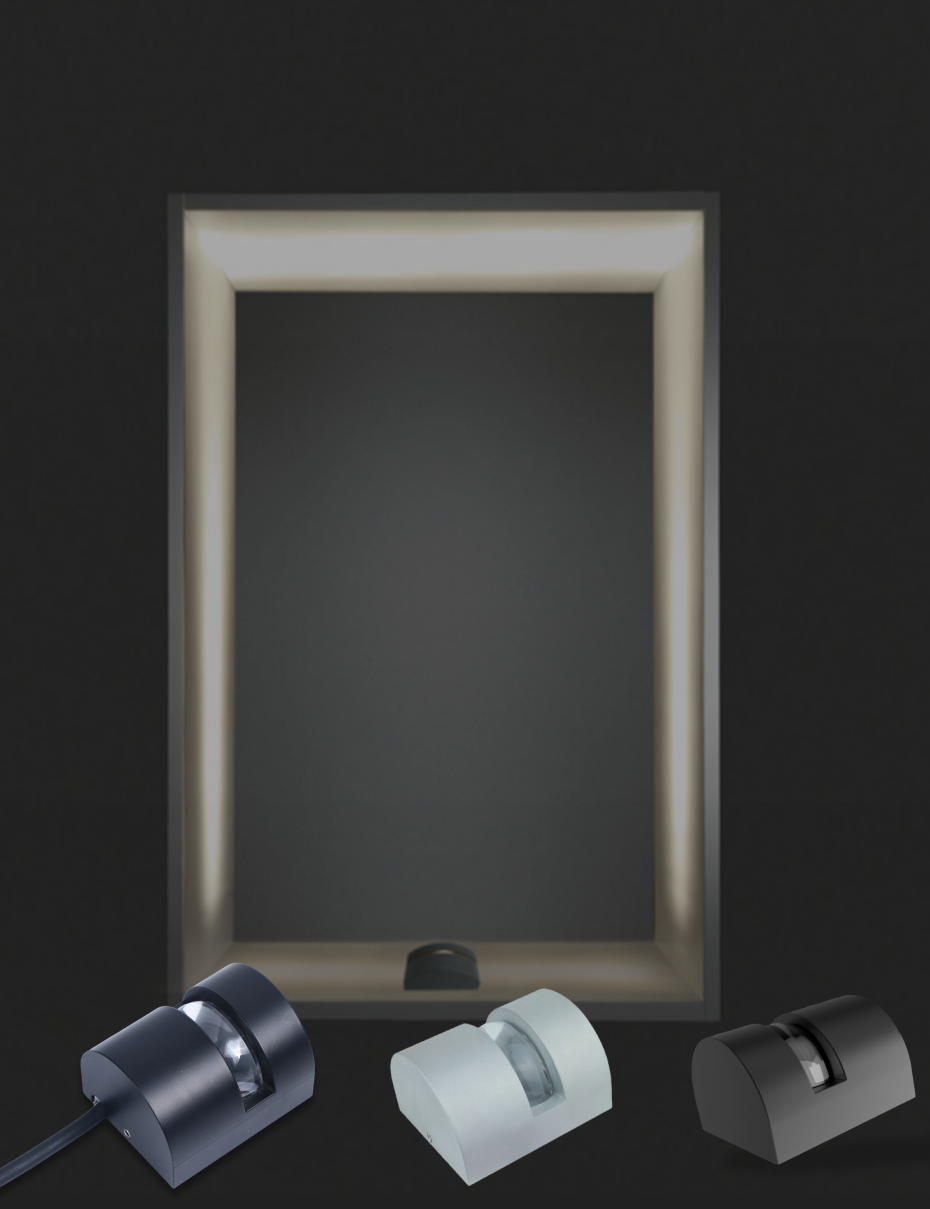

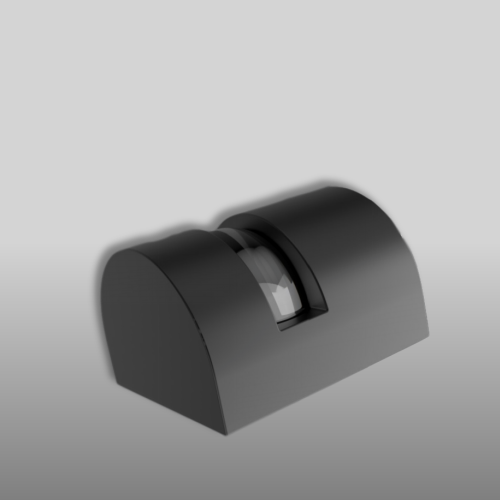

3W 6W LED Window Light

• Product Code: AL-1WOL-S1
• LED: 1/3pcs CREE high power LED
• Power: 3W 6W

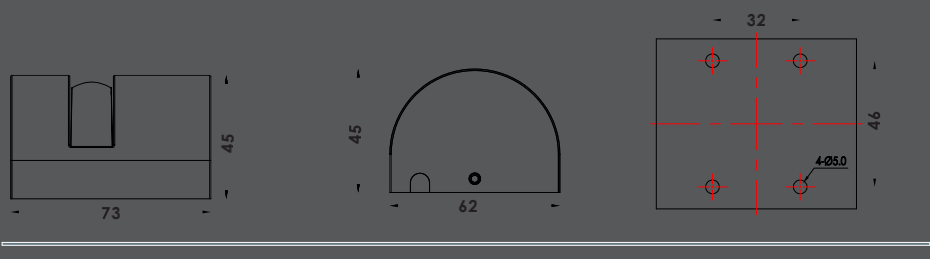

• Dimension: 45x62x73mm
• Voltage: 24VDC 220VAC
• Color temperature: 2700K 3000K 4000K 5000K 6000K
• Color: RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle: 3x170°
• IP grading: IP65
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material
• Warranty: 5 years
• Certification: CE ROHS
    IP65 for outdoor lighting applications.
    Body in die-casting aluminum with powder coating.
    Finishes in black, white and bespoke color.
    2700K, 3000K, 4000K, 6000K, RGB 3in1, RGBW 4in1.
    DMX512, DALI, 0-10V, Triac, PWM dimmable.
    5 years warranty, CE, ROHS, UKCA certified.



    Product Code AL-1WOL-S1-3W AL-1WOL-S1-6W
    LED SMD LED SMD LED
    Power 1x3W 3x2W
    Color Temperature 2200K, 2700K, 3000K,4000K,5000K,6500K 2200K, 2700K, 3000K,4000K,5000K,6500K
    Color RGB 3in1, RGBW 4in1 RGB 3in1, RGBW 4in1
    Beam Angle 3 x 170° 3 x 170°
    Voltage 24VDC 220-240VAC 24VDC 220-240VAC
    Flux 127lm 377lm
    IP 65 65
    IK 05 05
    Material Die-casting aluminum Die-casting aluminum
