Landscape Spotlight

5W AL-3SA

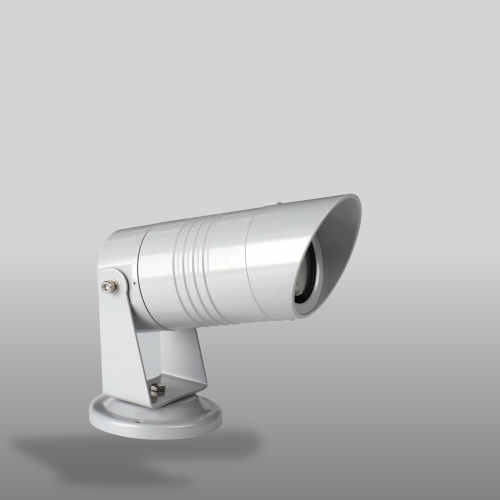

5W LED Garden Spotlight

• Product Code: AL-3SA
• High-power LED: CREE 1x3W 1x5W
• COB LED: CREE 1x6W

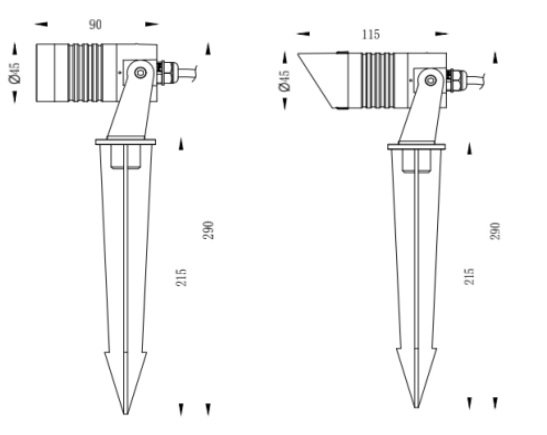

• Dimension:Ø45x90mm
• Voltage:12/24VDC,120VAC,240VAC
• Color temperature::2700K 3000K 4000K  5000K  6000K
• Colors:RGB 3in1 DMX512,RGBW 4in1
• Beam angle:15°/30° /45°/60°
• IP grading:IP65
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material.
• Warranty:3 years
• Certification:CE ROHS UKCA
    RGBW 4in1 DMX512, Triac, 0-10V, PMW, DALI dimmable.
    IP66 for outdoor lighting applications.
    CREE COB LED & high-power LED, high lumen output.
    Three size with power from 3W to 20W.
    Body in die-casting aluminum housing with powder coating suitable for coastal applications.
    Grey, black, white, green and bespoke finishes.
    Various mounting options: ceiling, wall, ground, spike, tree.
    5 years warranty, CE, ROHS, UKCA.


    Item No. LED Color Voltage Beam angle  Power Cable
    AL-3SA CREE 1x5W Single Color 12/24VDC 15/30/45/60° 3.5W 0.5M  H05RN-F
    CREE 1x5W Single Color DMX512 12/24VDC 15/30/45/60° 3.5W 0.5M  H05RN-F
    CREE 1x5W Single Color 220-240VAC 15/30/45/60° 3.5W 0.5M  H05RN-F
    CREE 1x5W RGB 3in1 12/24VDC 15/30/45/60° 3W 0.5M  H05RN-F
    CREE 1x5W RGB 3in1 DMX512 12/24VDC 15/30/45/60° 3.2W 0.5M  H05RN-F
    CREE 1x5W RGBW 4in1 12/24VDC 15/30/45/60° 4W 0.5M  H05RN-F
    CREE 1x5W RGBW 4in1 DMX512 12/24VDC 15/30/45/60° 3.2W 0.5M  H05RN-F
    CREE 1x6W Single Color 12/24VDC 15/30/45/60° 5.5W 0.5M  H05RN-F
    CREE 1x6W Single Color DMX512 12/24VDC 15/30/45/60° 5.5W 0.5M  H05RN-F
    CREE 1x6W Single Color 220-240VAC 15/30/45/60° 5.5W 0.5M  H05RN-F

    Item No. LED Color Voltage Beam angle  Power Cable
    AL-3SAH CREE 1x5W Single Color 12/24VDC 15/30/45/60° 3.5W 0.5M  H05RN-F
    CREE 1x5W Single Color DMX512 12/24VDC 15/30/45/60° 3.5W 0.5M  H05RN-F
    CREE 1x5W Single Color 220-240VAC 15/30/45/60° 3.5W 0.5M  H05RN-F
    CREE 1x5W RGB 3in1 12/24VDC 15/30/45/60° 3W 0.5M  H05RN-F
    CREE 1x5W RGB 3in1 DMX512 12/24VDC 15/30/45/60° 3.2W 0.5M  H05RN-F
    CREE 1x5W RGBW 4in1 12/24VDC 15/30/45/60° 4W 0.5M  H05RN-F
    CREE 1x5W RGBW 4in1 DMX512 12/24VDC 15/30/45/60° 3.2W 0.5M  H05RN-F
    CREE 1x6W Single Color 12/24VDC 15/30/45/60° 5.5W 0.5M  H05RN-F
    CREE 1x6W Single Color DMX512 12/24VDC 15/30/45/60° 5.5W 0.5M  H05RN-F
    CREE 1x6W Single Color 220-240VAC 15/30/45/60° 5.5W 0.5M  H05RN-F
