Acoustic Lights

Acoustic 56W KOIOS-ASP-1335T9

• Product Number: KOIOS-ASP-1335T9

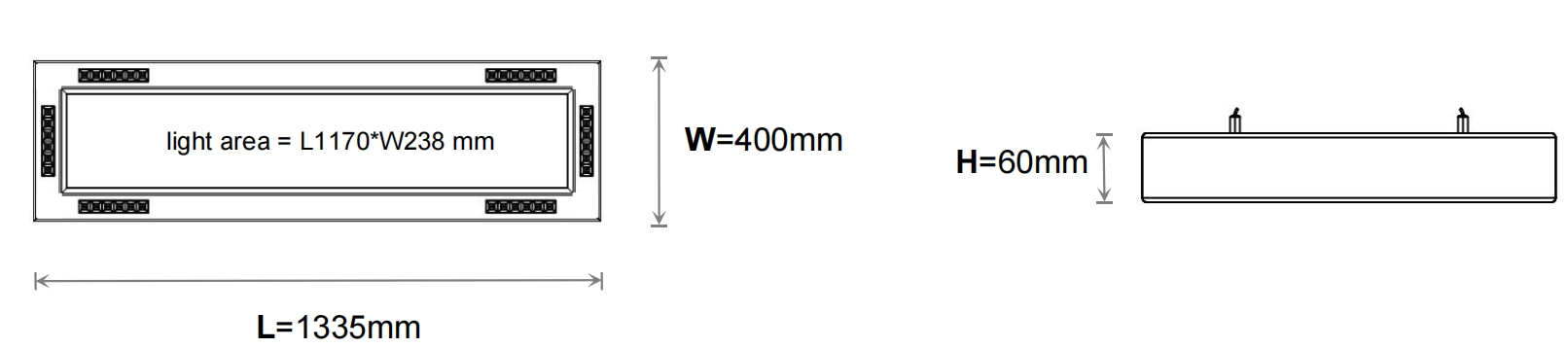

• Housing dimension: L1335×W400×H60mm
• Material: Polyester+Aluminum+PMMA
• Acoustic Panel Thickness:9MM
• Acoustic Panel Density: 1.9kg/m2
• Acoustic Panel Sound Absorption Coefficient: NRC Max=0.85
• Finsh: Total 40 color optional
• Optic:  Reflector Cup + microprismatic
• Beam Angle: Combination
• Power: 56W
• Operating Temperature: -20 to 55°C
• Fire Rating: ASTM E84 Class A; EN 13501 Class B
• Warranty: 5 years
    Acoustic lighting fixtures are designed using acoustic materials with sound-absorbing functions. They are a perfect combination of acoustics and lighting. Acoustic lighting fixtures can reduce unwanted noise in a space to provide customers with privacy, health, and comfort. You can use our acoustic lighting fixtures in the following areas: offices, dental clinics, hospitals, cafes, reading libraries, bars, conference rooms, banks, and any other spaces you like.

    ECO-PET is a synthetic felt board material made from recycled PET bottles, which can solve the acoustic problems of indoor spaces. ECO-PET is non-flammable, durable, easy to maintain, and has a delicate and soft touch. It is made from recycled materials and can be recycled again. The strength of the material allows for clever construction with flat-cut panels. It also comes with more than 40 color options, so you can decorate and brighten your space as much as you like. Let our space be environmentally friendly, healthy, bright, and comfortable.

    1. Uniquely designed to provide perfect lighting solutions for offices.
    2. The material of this lamp contains recyclable acoustic sound-absorbing materials, which can effectively reduce the noise in the space.
    3. High-efficiency lighting can be connected to the DALI dimming system to adapt your space to more lighting needs.
    4.40 shell colors can meet your aesthetic needs.
    5. Excellent anti-glare value, eye-friendly.
    6.5-year warranty.

    Color Options


    Main Information
    Product No. KOIOS-ASP-1335T9
    Material Polyester+Aluminum + PMMA
    Product Size L1335×W400×H60mm
    Acoustic Panel Thickness  9MM
    Acoustic Panel Density  1.9kg/m2
    Acoustic Panel Sound Absorption Coefficient  NRC Max=0.85
    Acoustic Panel Fire Rating  EN 13501 Class(B-s1,d0); ASTM E84 Class A(FSI 5, SDI 170)
    Installation  Suspended Mounted
    Input Voltage AC200-240V
    Nominal Frequency 50/60 Hz
    Optic Reflector Cup + microprismatic
    Beam Angle Combination
    Uniform Glare Value UGR<25
    Power 56W
    Color Temperature(CCT)  3000K - 4000K - 5700K(3CCT Change)
    Color Rendering Index  CRI 92
    Efficacy  90-95lm/W
    Luminous Flux  5040-5320 lm
    Control  Switch Button(ON/OFF)
    Operating Temperature Range -20 to 55℃
    IP Rating IP 20
    Quanlity Warranty 5 Years


    Detailed Information
    Light Source SMD LED
    R9 Color Rendering Index Value R9>67
    Color Variation Initial & Color Consistency   SDCM<5
    Life Span  L80B50 50000hours
    LED Driver Brand   BOKE Driver (Iron Box)
    Driver Power Factor  >0.95
    Driver Efficiency  ≥88%
    THD <15%
    Driver Glow Wire Test  850℃
    Overvoltage protection AC 320V, 48 hours
    Mains Surge Capability  1KV
    Control Driver Type  Electronic constant current
    Driver Position  Internal
    Electrical Protection  Class Ⅱ
    LED Flickering Rate LED  Medium(0.01%-1%) (Flicker-free)
    Photobiological Risk Group  RG0
    LED Housing Material  Aluminum 6063-T6
    LED Housing Processing  Powder coating
