Acoustic Lights

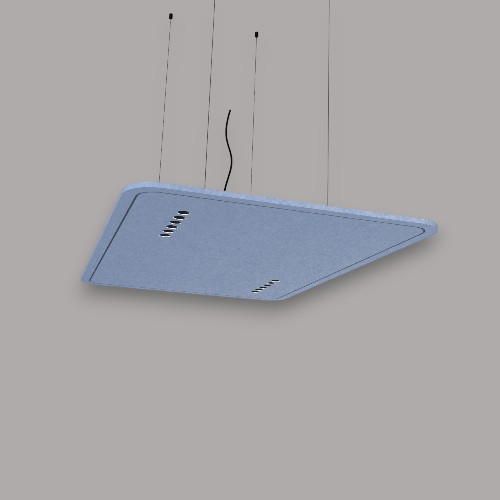

Acoustic 24W KOIOS-AS12080-L-T12
• Product Number: KOIOS-AS12080-L-T12

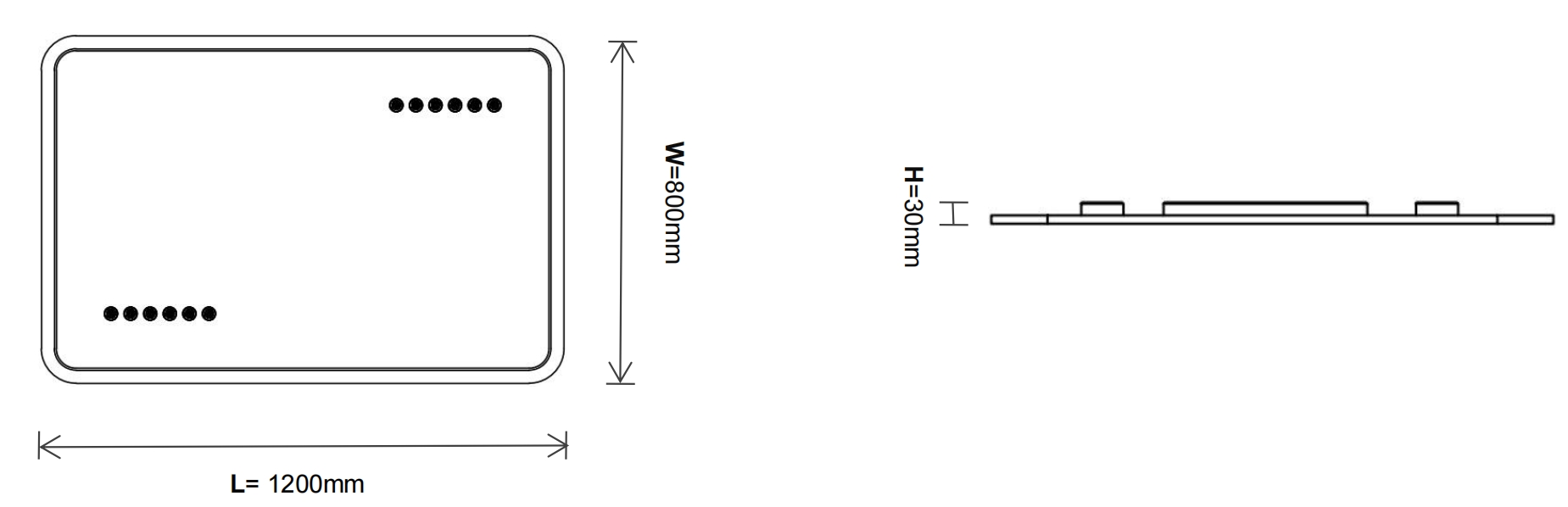

• Housing dimension:L1200×W800×H30mm
• Material: Polyester+Aluminum+PMMA
• Acoustic Panel Thickness:12MM
• Material: Polyester+Aluminum+PMMA
• Acoustic Panel Thickness:12MM
• Acoustic Panel Density: 2.4kg/m2
• Acoustic Panel Sound Absorption Coefficient: NRC Max=0.95
• Finsh: Total 40 color optional
• Optic: Lens
• Beam Angle: 50°
• Power: 24W
• Beam Angle: 50°
• Power: 24W
• Operating Temperature: -20 to 55°C
• Fire Rating: ASTM E84 Class A; EN 13501 Class B
• Warranty: 5 years
• Warranty: 5 years
Color Options
Main Information
Detailed Information
| Product No. | KOIOS-AS12080-L-T12 |
| Material | Polyester+Aluminum + PMMA |
| Product Size | L1200×W800×H30mm |
| Acoustic Panel Thickness | 12MM |
| Acoustic Panel Density | 2.4kg/m2 |
| Acoustic Panel Sound Absorption Coefficient | NRC Max=0.95 |
| Acoustic Panel Fire Rating | EN 13501 Class(B-s1,d0); ASTM E84 Class A(FSI 5, SDI 170) |
| Installation | Suspended Mounted |
| Input Voltage | AC200-240V |
| Nominal Frequency | 50/60 Hz |
| Optic | Lens |
| Beam Angle | 50° |
| Uniform Glare Value | UGR＜13 |
| Power | 24W |
| Color Temperature(CCT) | 2700K or 4000K or 5700K |
| Color Rendering Index | CRI 92 |
| Efficacy | 85-90lm/W |
| Luminous Flux | 2040-2160 lm |
| Control | Switch Button(ON/OFF) |
| Operating Temperature Range | -20 to 55℃ |
| IP Rating | IP 20 |
| Quanlity Warranty | 5 Years |
Detailed Information
| Light Source | SMD LED |
| R9 Color Rendering Index Value | R9＞67 |
| Color Variation Initial & Color Consistency | SDCM＜5 |
| Life Span | L80B50 50000hours |
| LED Driver Brand | CE Driver |
| Driver Power Factor | ＞0.95 |
| Driver Efficiency | ≥88% |
| THD | ＜15% |
| Driver Glow Wire Test | 850℃ |
| Overvoltage protection | AC 320V, 48 hours |
| Mains Surge Capability | 1KV |
| Control Driver Type | Electronic constant current |
| Driver Position | External |
| Electrical Protection | Class Ⅱ |
| LED Flickering Rate LED | Medium(0.01%-1%) (Flicker-free) |
| Photobiological Risk Group | RG0 |
| LED Housing Material | Aluminum 6063 |
| LED Housing Processing | Powder coating |
