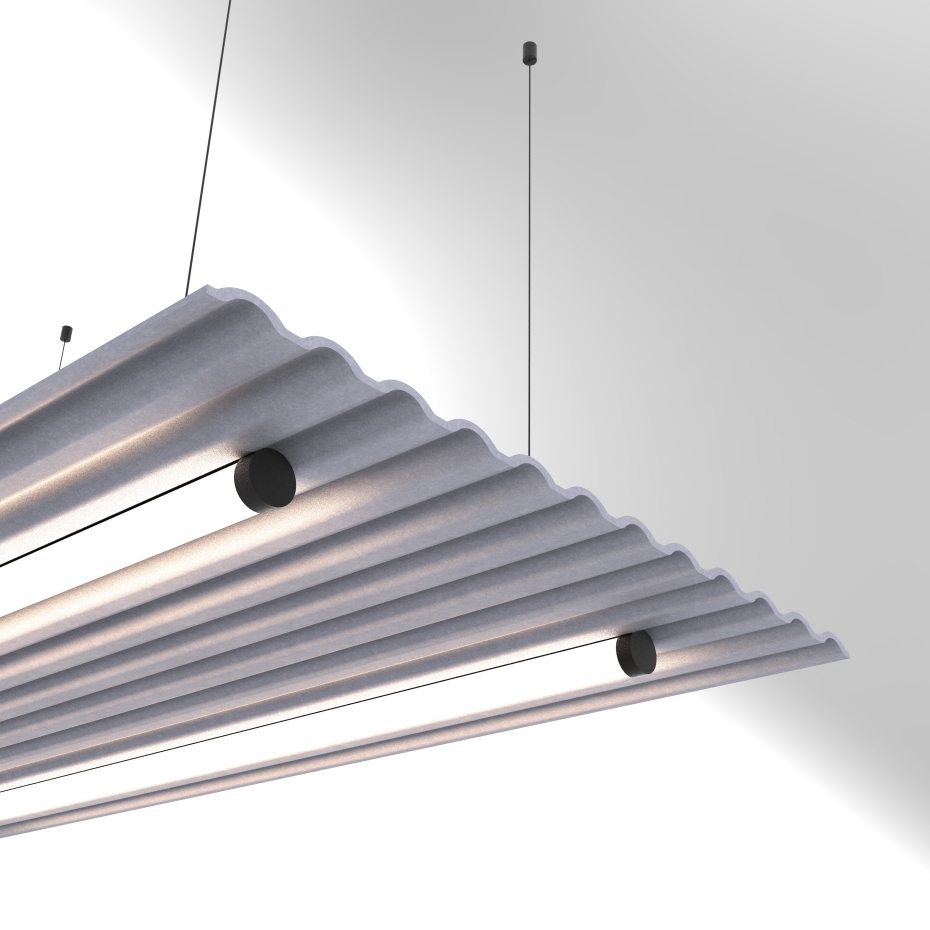

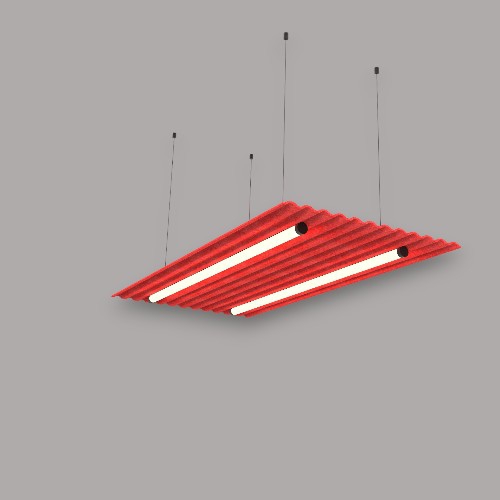

Acoustic 24W KOIOS-MM-T12-A&L Lighting Limited

PRODUCTS

< >

• Product Number: KOIOS-MM-T12

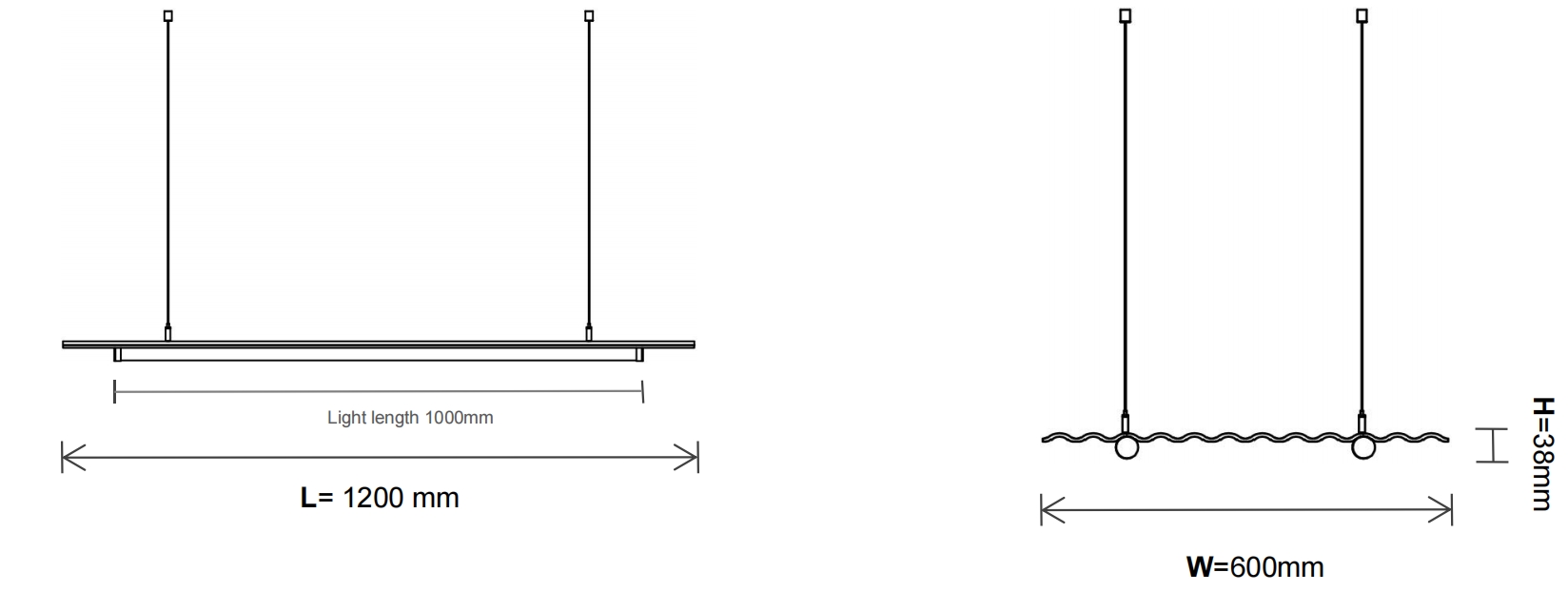

• Housing dimension: L1200×W600×H38mm
• Material: Polyester+Aluminum+PC
• Acoustic Panel Thickness: 12MM

• Acoustic Panel Density: 2.4kg/m2

• Acoustic Panel Sound Absorption Coefficient: NRC Max=0.95

• Finsh: Total 40 color optional

• Optic: Opal diffuser
• Beam Angle: 270°
• Power: 24W

• Operating Temperature: -20 to 55°C

• Fire Rating: ASTM E84 Class A; EN 13501 Class B
• Warranty: 5 years

Main Information

Product No.	KOIOS-MM-T12
Material	Polyester+Aluminum + PC
Product Size	L1200×W600×H38mm
Acoustic Panel Thickness	12MM
Acoustic Panel Density	2.4kg/m2
Acoustic Panel Sound Absorption Coefficient	NRC Max=0.95
Acoustic Panel Fire Rating	EN 13501 Class(B-s1,d0); ASTM E84 Class A(FSI 5, SDI 170)
Installation	Suspended Mounted
Input Voltage	200-240 VAC / 100-277 VAC
Nominal Frequency	50/60 Hz
Optic	Opal diffuser
Beam Angle	270°
Uniform Glare Value	UGR＜27
Power	24W
Color Temperature(CCT)	3000K - 4000K - 5700K(3CCT Change)
Color Rendering Index	CRI 92
Efficacy	80lm/W
Luminous Flux	1920 lm
Control	ON/OFF or DALI
Operating Temperature Range	-20 to 55℃
IP Rating	IP 20
Quanlity Warranty	5 Years

Detailed Information

Light Source	SMD LED
R9 Color Rendering Index Value	R9＞67
Color Variation Initial & Color Consistency	SDCM＜5
Life Span	L80B50 50000hours
LED Driver Brand	UL Driver
Driver Power Factor	＞0.95
Driver Efficiency	≥88%
THD	＜15%
Driver Glow Wire Test	850℃
Overvoltage protection	AC 320V, 48 hours
Mains Surge Capability	1KV
Control Driver Type	Electronic constant current
Driver Position	Internal
Electrical Protection	Class Ⅱ
LED Flickering Rate LED	Medium(0.01%-1%) (Flicker-free)
Photobiological Risk Group	RG0
LED Housing Processing	Powder coating
