Fountain Light

9x3W AL-4SB

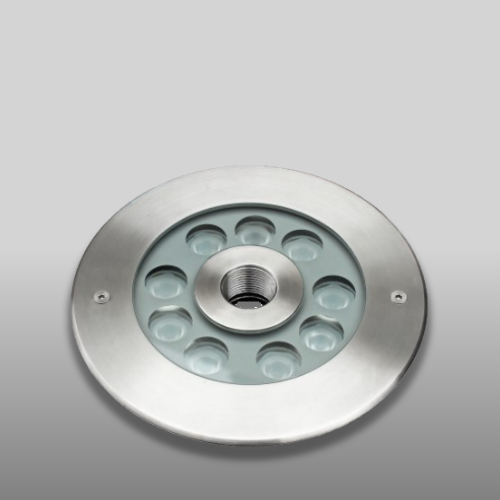

9x3W  LED Fountain Light

• Product Code: AL-4SB
• LED: 9pcs high power LED
• LED chip: CREE OSRAM EPISTAR
• Power: 16~27W

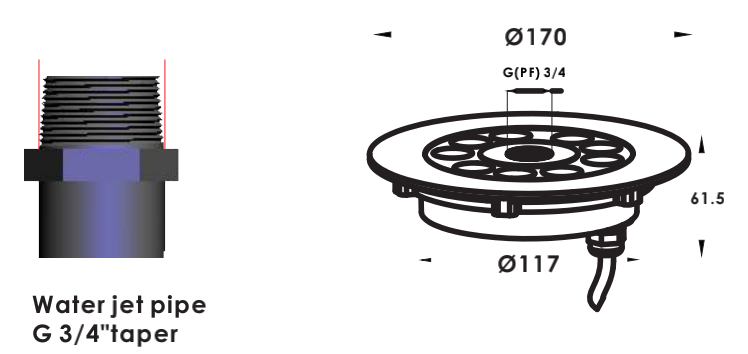

• Dimensions: Ø170x61.5mm
• Voltage: 24VDC
• Color temperature: 2700K 3000K 4000K  5000K  6000K
• Color: RGB 3in1 DMX512, RGBW 4in1 DMX512
• Beam angle: 15°/30°/45°/60°
• IP grade: IP68
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: SUS 316 stainless steel
• Warranty: 3 years
• Certification: CE ROHS

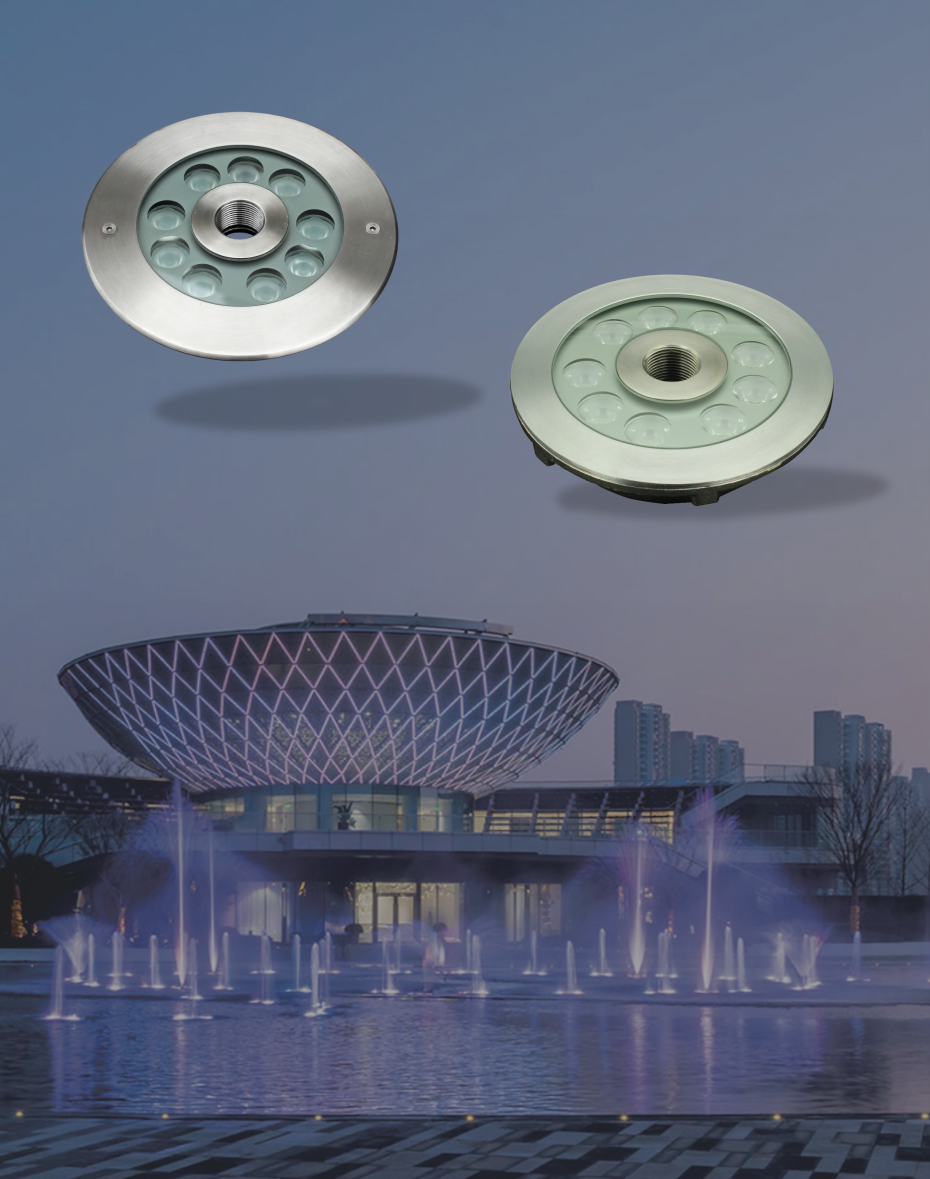

    1. IP68 for outdoor fountain lighting applications.
    2. Recessed and surface mounted.
    3. Body in SUS 316 stainless steel.
    4. Screen in tempered glass.
    5. RGBW 4in1 DMX512, DALI, 0-10V, Triacdimmable.
    6. High lumen output high-power LED and COB LED light source.
    7. IK08 impact resistance.
    8. Over 2000kg loading capacity.
    9. Pre-wired with 3 meters of power cable.
    10. 5 years warranty, CE, ROHS, UKCA certified.


    Item No. LED Color Voltage Beam angle  Power Cable
    AL-4SB CREE 9x2W Single Color DC24V 15/30/45/60° 16.2W 3M  H05RN-F
    EPISTAR 9x2W RGB  DC24V 15/30/45/60° 18.2W 3M  H05RN-F
    EPISTAR 9x2W RGB DMX512 DC24V 15/30/45/60° 18.2W 3M  H05RN-F
    EPISTAR 9x3W RGB 3in1 DC24V 15/30/45/60° 27.3W 3M  H05RN-F
    EPISTAR 9x3W RGB 3in1 DMX512 DC24V 15/30/45/60° 27.3W 3M  H05RN-F
    EPISTAR 9x4W RGBW 4in1 DC24V 15/30/45/60° 27.3W 3M  H05RN-F
    EPISTAR 9x4W RGBW 4in1 DMX512 DC24V 15/30/45/60° 27.3W 3M  H05RN-F
