Ceiling Light

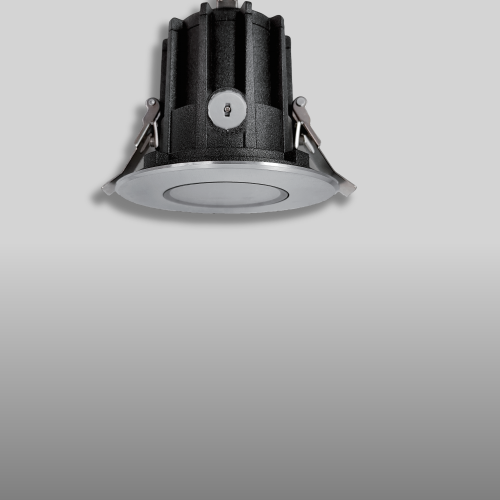

D95mm AL-7AA-S1

2~4W Recessed Ceiling Light

• Product Code: AL-7AAB-S1
• LED: 1pcs CREE /OSRAM / EPISTAR high power LED
• Power: 2-4W

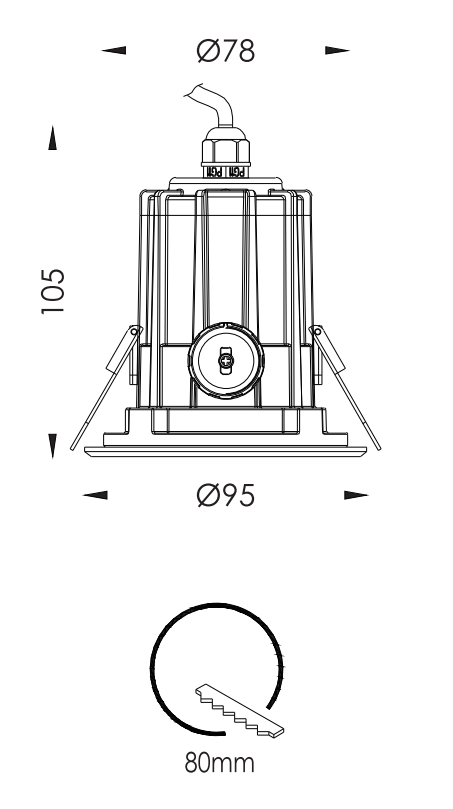

• Dimensions: Ø95x116mm
• Voltage: 12/24VDC,220-240VAC
• Color: 2700K 3000K 4000K  5000K  6000K
             RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle: 5°/8/15°/25°/40°/60°/10*45°/20*65°
• IP grading: IP67
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty: 3 years
• Certification: CE ROHS UKCA

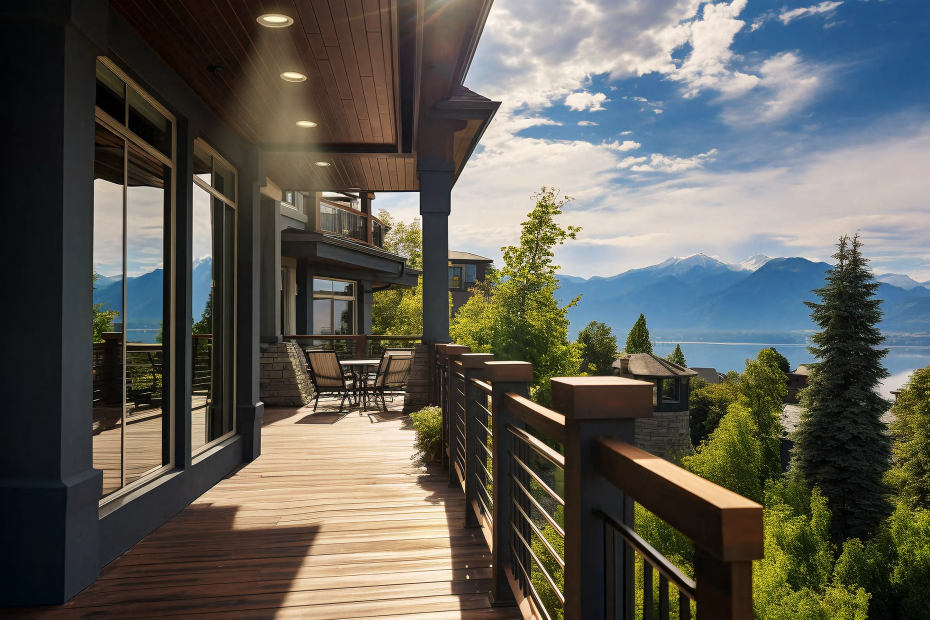

    IP67 for outdoor ceiling lighting applications.
    Body in die-casting aluminum with powder coating.
    Recessed ceiling mounted.
    Finishes in grey, white, black or bespoke color.
    2700K, 3000K, 4000K, 6000K, RGB 3in1, RGBW 4in1.
    DALI, PWM, 0-10V, Triac dimmable.
    High lumen output COB LED light source.


    Part code

    LED

    CCT

    Voltage

    Lumen

    Beam angle

    AL-7AA-S1-XX1B

    1x2W CREE/OSRAM

    2700K

    3000K

    4000K

    6000K

    12/24VDC

    157lm

    5°/8/15°/25°/40°/60°

    10*45°/20*65°

    AL-7AA-S1-XX2B

    1x2W CREE/OSRAM

    2700K

    3000K

    4000K

    6000K

    220-240VAC

    157lm

    5°/8/15°/25°/40°/60°

    10*45°/20*65°

    AL-7AA-S1-31CB

    1x3W OSRAM

    RGB 3in1

    12/24VDC

    157lm

    12°/25°/40°/60°

    AL-7AA-S1-41CB

    1x4W OSRAM

    RGBW 4in1

    12/24VDC

    157lm

    12°/25°/40°/60°
