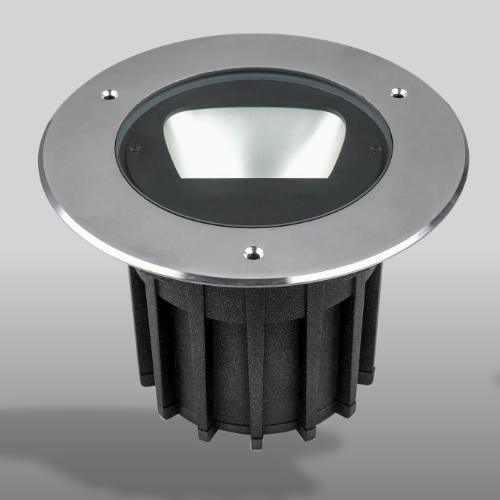

COB Inground Light

1x20W AL-2APR-S4

1x20W Adjustable COB LED Inground Light

• Product Code: AL-2APR-S4
• LED: 1x20W CREE COB LED
• Power: 20W

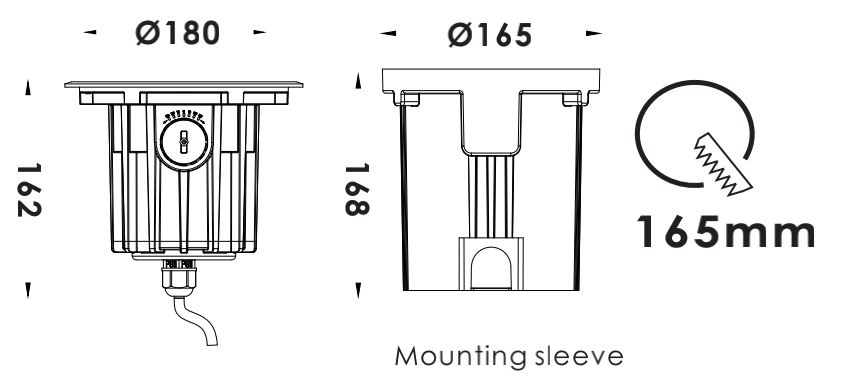

• Dimension: Ø180x162mm
• Voltage: 24VDC,220-240VAC
• Color: 2700K 3000K 4000K  5000K  6000K
• Beam angle: 27°
• IP grading: IP67
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty: 3 years
• Certification: CE ROHS UKCA
    Anti-glare design, the inground lights are eye-friendly.
    The inground light is IP67 waterproof that is perfect for outdoor lighting.
    Surface cover in SUS 316L stainless steel with Titanium plating, suitable for costal applications.
    Body in die-casting aluminum with powder coating, durable and robust.
    Tilt angle of luminaire is adjustable, just turn knob to tilt the light distribution up to 25 degrees.
    Optical design available in versions: tilable, narrow, wide and asymmetric.
    Triac, 0-10V, PMW, DALI dimmable.
    IK10, over 4000kg loading capacity.
    CREE COB LED high lumen output.
    Six size with power from 3W to 40W optional.




    Item No. LED Color Voltage Beam angle  Power Cable
    AL-2APR-S4 CREE 1x20W Single Color 12/24VDC 18/24°/38°/60° 18.2W 0.5M  H05RN-F
    CREE 1x20W Single Color 220-240VAC 18/24°/38°/60° 18.2W 0.5M  H05RN-F
