COB Inground Light

1x5W AL-2ARF-S1

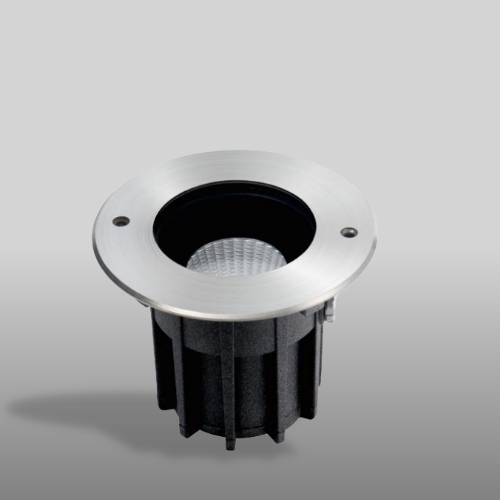

High Efficiency 1x5W COB LED Inground Light With Reflector

• Product Code: AL-2ARF-S1
• LED: 1x5W CREE COB LED
• Power: 5W
• Dimensions: Ø95x116mm
• Voltage: 24VDC,220-240VAC
• Color: 2700K 3000K 4000K  5000K  6000K
• Beam angle: 18°/24°/38°/60°
• IP grading: IP67
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty: 3 years
• Certification: CE ROHS UKCA
    The inground light is IP67 waterproof that is perfect for outdoor lighting.
    Surface cover in SUS 316L stainless steel with Titanium plating, suitable for costal applications.
    Body in die-casting aluminum with powder coating, durable and robust.
    Tilt angle of luminaire is adjustable, just turn knob to tilt the light distribution up to 25 degrees.
    Optical design available in versions: tilable, narrow, wide and asymmetric.
    RGBW 4in1 DMX512, Triac, 0-10V, PMW, DALI dimmable.
    IK10, over 4000kg loading capacity.
    CREE COB LED, high lumen output.
    Six size with power from 6W to 40W optional.




    Item No. LED Color Voltage Beam angle  Power Cable
    AL-2ARF-S1 CREE 1x5W Single Color 12/24VDC 18/24°/38°/60° 5.8W 0.5M  H05RN-F
    CREE 1x5W Single Color 220-240VAC 18/24°/38°/60° 5.8W 0.5M  H05RN-F
