Step Light

3W AL-1BQ-S

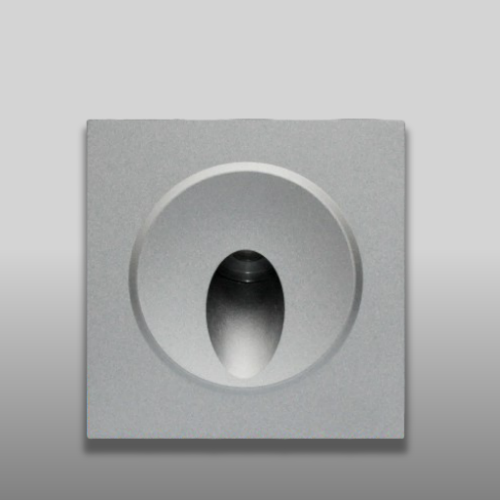

3W Recessed LED Wall Light

• Product Code: AL-1BQ-R
• LED: 1pcs high power LED
• LED chip: OSRAM EPISTAR
• Power: 3W

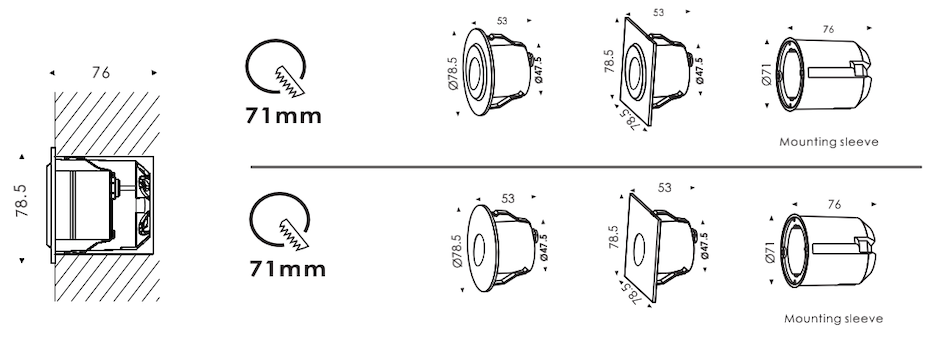

• Dimension: 78.5x78.5x76mm
• Voltage: 24VDC 220VAC
• Color temperature: 2700K 3000K 4000K  5000K  6000K
• Color: RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle: 120°
• IP grading: IP65
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material
• Warranty: 2 years
    IP65 for outdoor lighting applications.
    Recessed wall mounting.
    Body in aluminum.
    Finishes in white, black, grey, silve, gold and bespoke color.
    2700K, 3000K, 4000K, 6000K, RGB 3in1, RGBW 4in1.
    DALI, PWM, 0-10V, Triac dimmable.
    High lumen output SMD LED light source.
    5 years warranty, CE, ROHS, UKCA certified.
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-1BQ-S CREE 1x2W Single Color 24VDC 80°      2.6W 0.5M  H05RN-F
    CREE 1x2W Single Color 220-240VAC 80°      2.6W 0.5M  H05RN-F
    EPISTAR 1x3W RGB 3in1 24VDC 80°      3.3W 0.5M  H05RN-F
    EPISTAR 1x3W RGB 3in1 DMX512 24VDC 80°      3.3W 0.5M  H05RN-F
    EPISTAR 1x4W RGBW 4in1 24VDC 80°      4W 0.5M  H05RN-F
    EPISTAR 1x4W RGBW 4in1 DMX512 24VDC 80°      4W 0.5M  H05RN-F
