LED Panel Light

ORBIT-PRB600

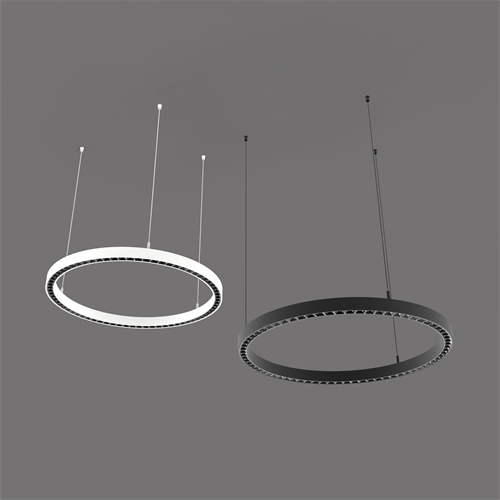

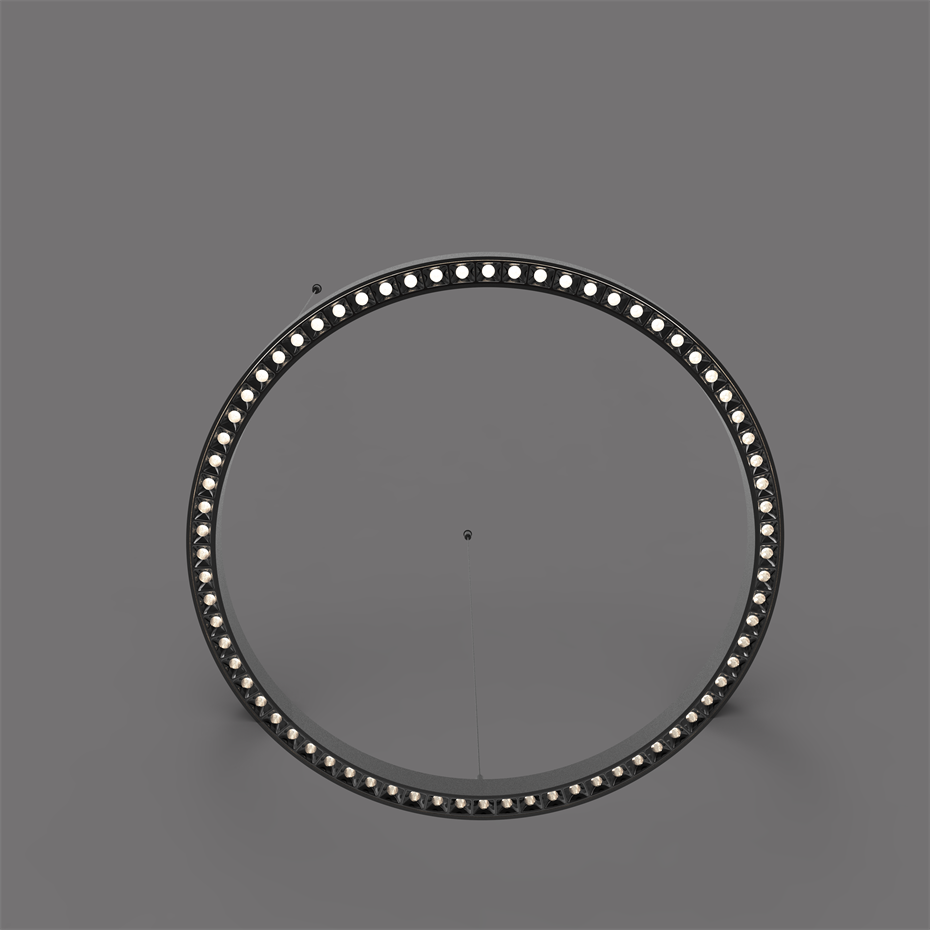

Suspended Round LED Panel Light

• Product Code: ORBIT-PRB600
• LED Power: 36W
• LED Type: SMD2835
• Voltage: AC200-240V
• Optic: Reflector Cup
• Beam Angle: 34° / 48°
• UGR: <26
• CRI: >90
• Efficiency: 75-80lm/W
• Lumens: 2700-2880lm
• Distribution: 100% direct
• Installation: Suspended
• Dimensions: 600 x 34MM

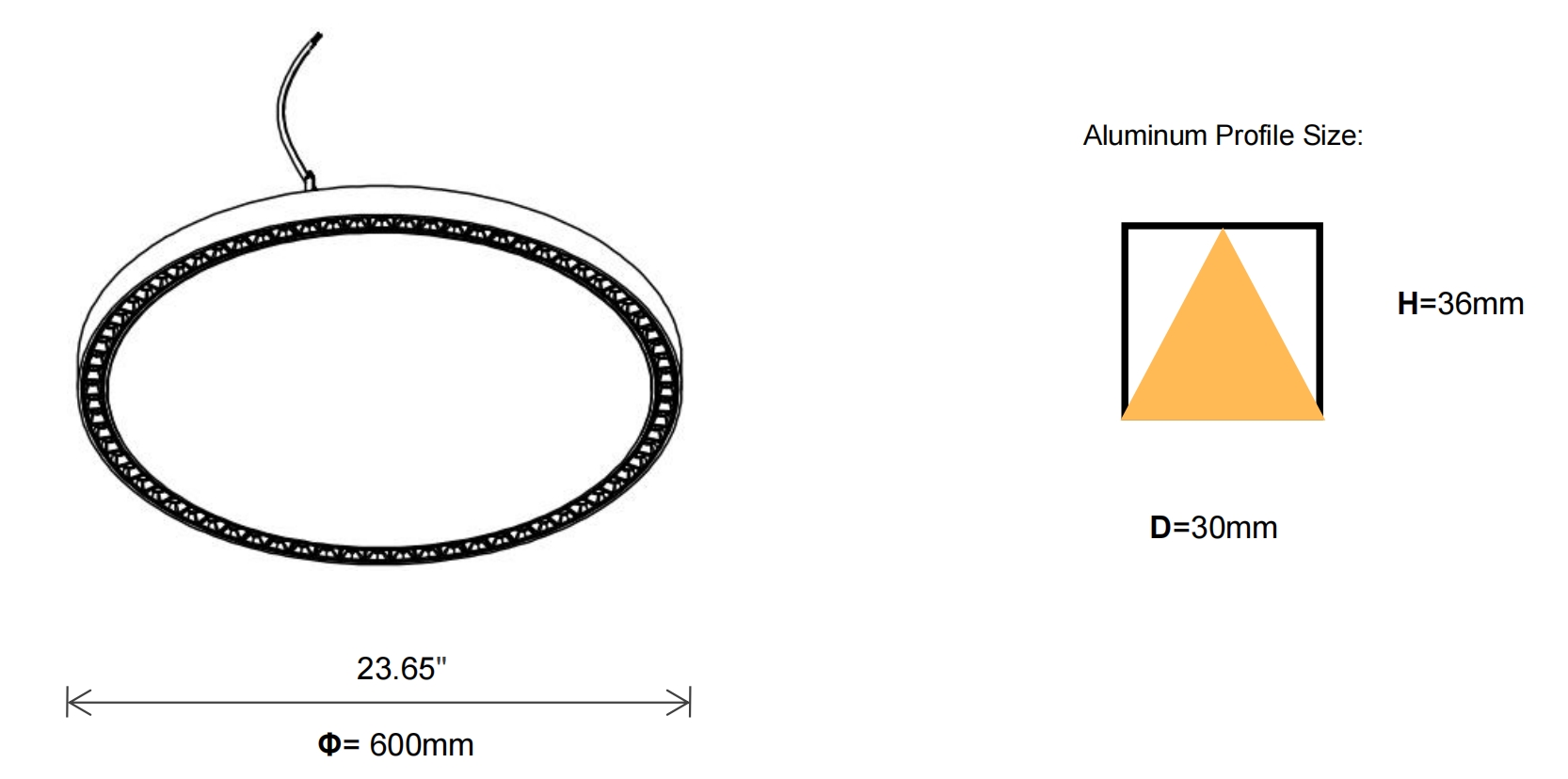

    1. Slim LED ring design, Φ600×36mm, extruded aluminum body.
    2. 36W direct lighting, 2700–2880lm high brightness.
    3. UGR≤6 anti-glare, reflector cup optic (34°/48° beam angle)
    4. CRI90+, R9>67, SDCM<5, flicker-free RG0 safe.
    5. 2700K/4000K/5700K CCT selectable.
    6. Aluminum + PMMA, powder coated finish.
    7. Constant current driver, PF>0.95.
    8. 50,000hrs lifespan, 5-year warranty.

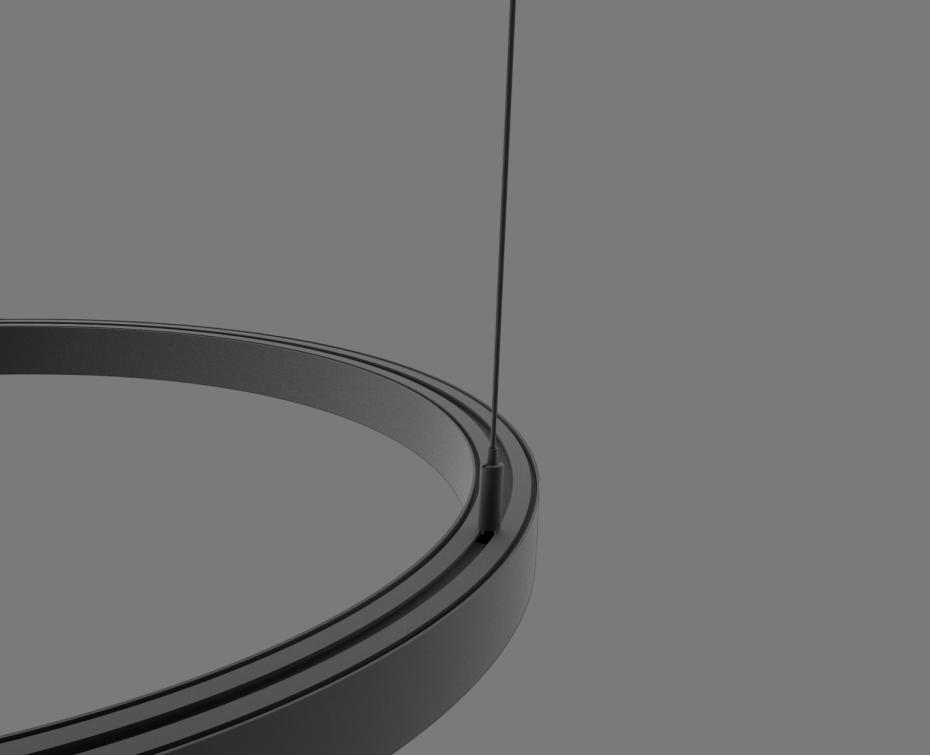

    9. Suspended installation, 1.5m steel rope.









    Product Code ORBIT-PRB600
    Material Aluminum + PMMA
    Dimensions 600 x 36MM
    Installation Suspended
    Input Voltage AC200-240V
    Beam Angle 34° / 48°
    UGR <6
    Power 36W
    Color Temperature 2700K 3000K 4000K 5700K
    CRI >90
    Efficiency 75-80lm/W
    Luminous Flux 2700-2880lm
    Distribution 100% direct
    Control ON/OFF
    Housing Finish Color White (RAL 9016/ RAL 9003)
    Black (RAL 9005)
    IP Rating 20
    Nominal Frequency  50/60 Hz
    LED Type SMD LED
    LED Chip Brand LUMILEDS
    R9 Color Rendering Index Value R9＞67
    Color Variation Initial & Color Consistency SDCM＜5
    Lifesppan  L80B50 50000hours
    Driver Power Factor  ＞0.95
    Driver Efficiency  ≥88%
    THD  ＜15%
    Driver Glow Wire Test 750℃
    Driver Position  External
    Electrical Protection  Class II
    Photobiological Risk Group  RG0
    Housing Processing  Powder coating
