You are here：Home >> PRODUCTS >> Indoor Lights >> LED Panel Light

LED Panel Light

ORBIT-PRA600

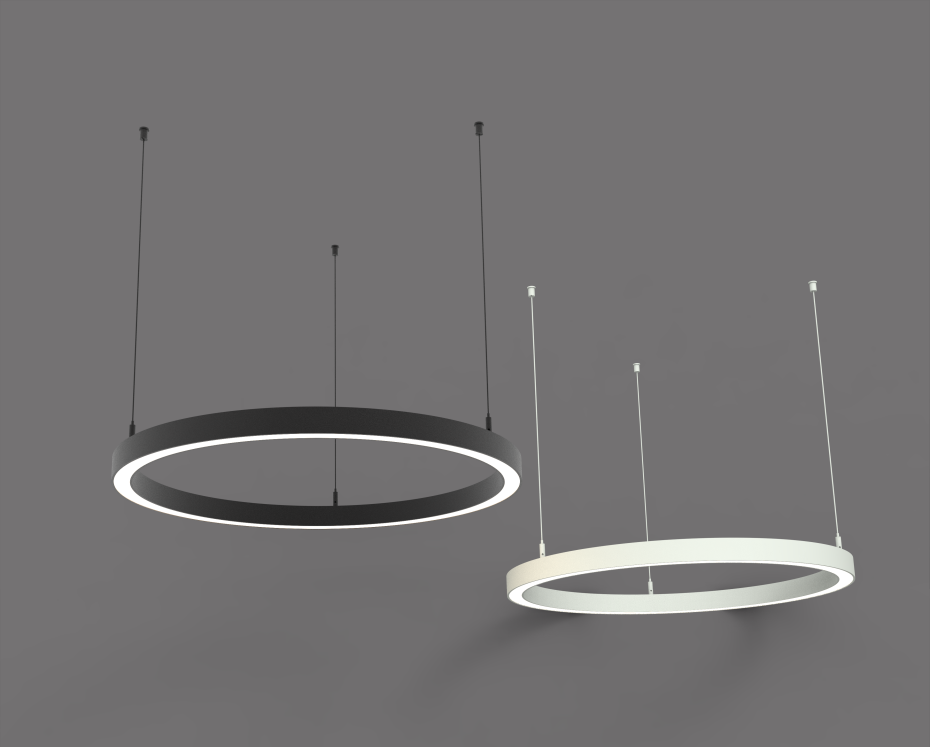

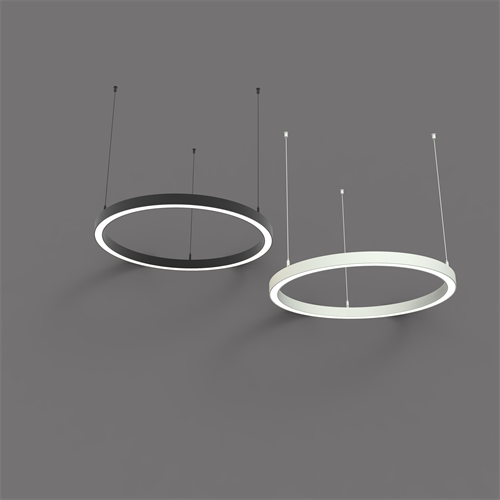

Suspended Round LED Panel Light

• Product Code: ORBIT-PRA600
• LED Power: 34W
• LED Type: SMD2835
• Voltage: AC200-240V
• Optic: Silicone Board
• Beam Angle: 120°
• UGR: <26
• CRI: >90
• Efficiency: 55-60lm/W
• Lumens: 1870-2040lm
• Distribution: 100% direct
• Installation: Suspended
• Dimensions: 600 x 34MM

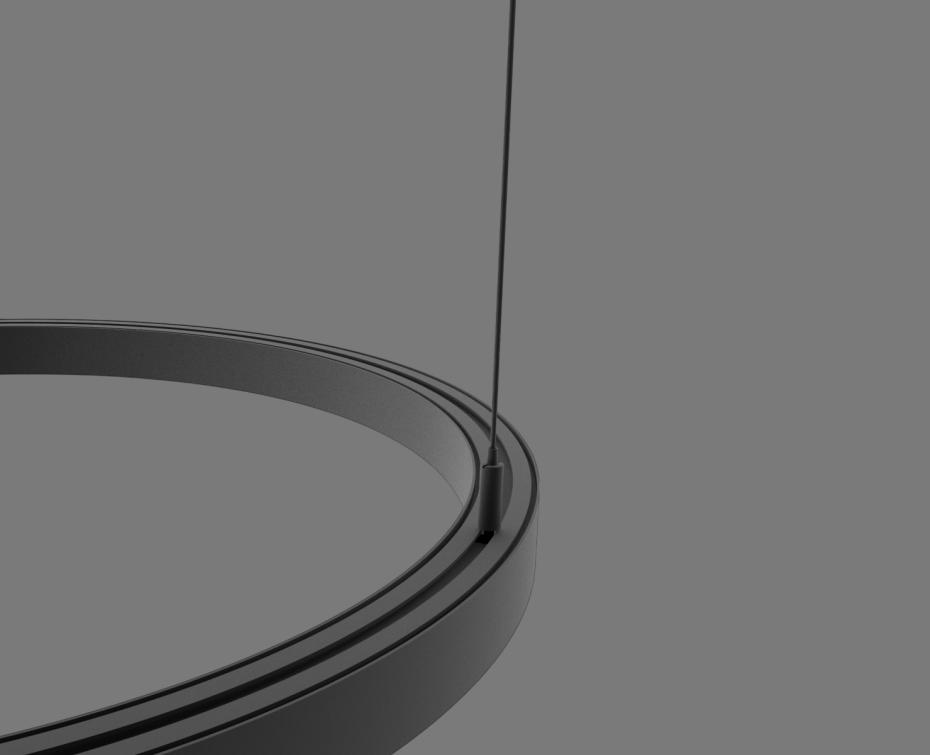

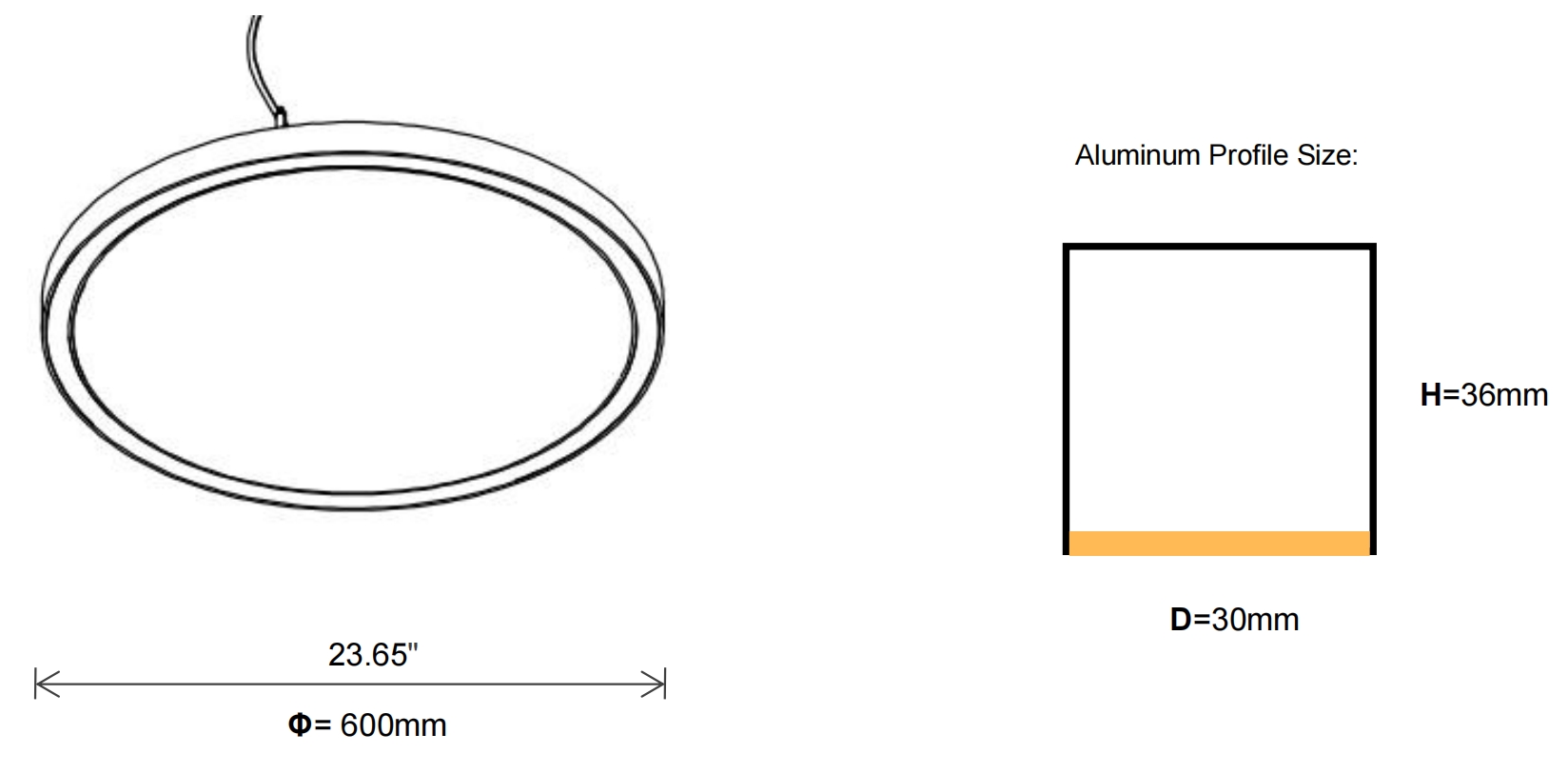

    1. Slim LED ring design, Φ600×36mm, extruded aluminum body.
    2. 34W direct lighting, 2700–2880lm high brightness.
    3. UGR≤6 anti-glare, 120° beam angle.
    4. CRI90+, R9>67, SDCM<5, flicker-free RG0 safe.
    5. 2700K/4000K/5700K CCT selectable.
    6. Aluminum + Silicone, powder coated finish.
    7. Constant current driver, PF>0.95.
    8. 50,000hrs lifespan, 5-year warranty.
    9. Suspended installation, 1.5m steel rope.


    Product Code ORBIT-PRA600
    Material Aluminum + Silicone
    Dimensions 600 x 36MM
    Installation Suspended
    Input Voltage AC200-240V
    Beam Angle 120°
    UGR <21
    Power 34W
    Color Temperature 2700K 3000K 4000K 5700K
    CRI >90
    Efficiency 55-60lm/W
    Luminous Flux 1870-2840lm
    Distribution 100% direct
    Control ON/OFF
    Housing Finish Color White (RAL 9016/ RAL 9003)
    Black (RAL 9005)
    IP Rating 20
    Nominal Frequency  50/60 Hz
    LED Type SMD LED
    LED Chip Brand LUMILEDS
    R9 Color Rendering Index Value R9＞67
    Color Variation Initial & Color Consistency SDCM＜5
    Lifesppan  L80B50 50000hours
    Driver Power Factor  ＞0.95
    Driver Efficiency  ≥88%
    THD  ＜15%
    Driver Glow Wire Test 750℃
    Driver Position  External
    Electrical Protection  Class II
    Photobiological Risk Group  RG0
    Housing Processing  Powder coating
