LED Garden Light

AL-3SAH

LED Spotlight

• Item No.: AL-3SAH
• LED type: COB LED or SMD LED
• LED Chip: CREE, OSRAM, EPISTAR
• Power: 2.5W   3.5W  5.5W
• Dimension: Ø45x90mm
• Voltage: 24VDC, 120-240VAC
• Color temperature: 2700K 3000K 4000K 5000K 6000K
• Colors: RGB 3in1 DMX512, RGBW 4in1
• Beam angle: 5°/8°/25°/40°/60°
• IP grading: IP65
• Dimmable options: 0-10V, TRIAC, DALI, PWM
• Material: Aluminum
• Warranty: 3 years
• Certification: CE ROHS UKCA
    The AL-3S series spotlights are a classic spotlight series. This series can meet customers’ diverse garden lighting requirements: a variety of colors and color temperatures are available, ranging from 2200K to 6000K, including RGB 3-in-1 and RGBW 4-in-1. It supports various dimming control methods: 0-10V, PWM, DALI and DMX512. Multiple beam angles are optional: 5°/8°/25°/40°/60°. Users can also choose between COB LEDs or SMD LEDs based on their brightness requirements.

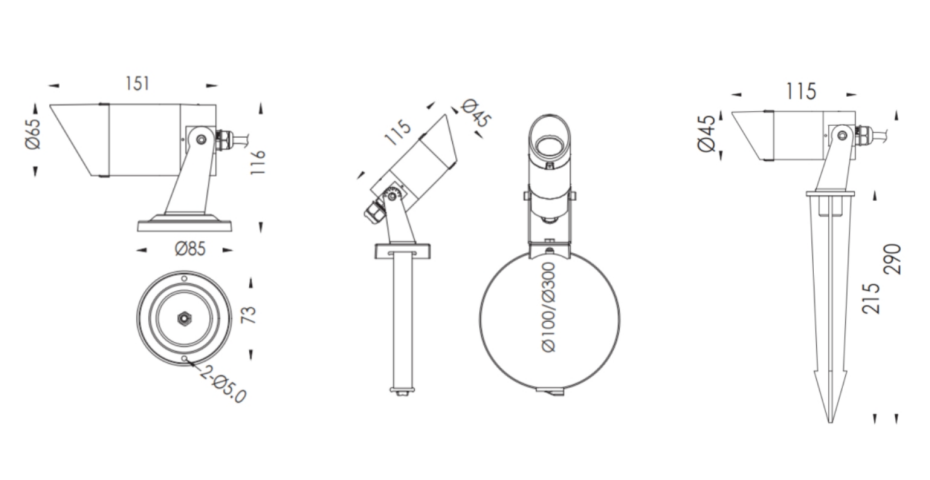

    Different installation methods are available, including ground spike installation, base mount installation, and tree strap installation. We can provide different mounting accessories accordingly. You can also customize different coating colors to match your garden design.
    Product Code LED Power Beam Angle Color Voltage Lumens
    AL-3SAH-B 1 x 3W 5°/8°/25°/40°/60° 2200-6000K 12/24VDC 380lm
    1 x 3W 5°/8°/25°/40°/60° 2200-6000K 100-240VAC 380lm
    1 x 5W 5°/8°/25°/40°/60° 2200-6000K 12/24VDC 380lm
    1 x 5W 5°/8°/25°/40°/60° 2200-6000K 100-240VAC 380lm
    1 x 3W 25°/40°/60° RGB 3in1 12/24VDC 60lm
    1 x 3W 25°/40°/60° RGB 3in1 DMX512 12/24VDC 60lm
    1 x 4W 25°/40°/60° RGBW 4in1 12/24VDC 80lm
    1 x 4W 25°/40°/60° RGBW 4in1 DMX512 12/24VDC 80lm
    AL-3SAH-R 1 x 6W 15°/30° /40°/60° 2200-6000K 12/24VDC 465lm
    1 x 6W 15°/30° /40°/60° 2200-6000K 100-240VAC 465lm
    1 x 6W 15°/30° /40°/60° 2200-6000K DMX512 2/24VDC 465lm
