LED Downlight

AL-DLMS153CT050

LED Down Light Module

Product Code: AL-DLMS153CT050
Voltage: AC220-240V
Power: 3-10W
LED Type: COB LED
CRI: Ra>90
Beam Angle: 15°/24°/38°
Power Factor: PF>0.9
Finish Color: White / Black
URG: <13
Material: Die-casting aluminum
    1. Adopts modular design with small cut‑out size, simplifying on‑site installation and replacement.
    2. Supports multiple power options of 3‑7W and 10W to satisfy diverse indoor lighting requirements.
    3. Offers wide CCT selection from 2700K to 6500K, delivering flexible colour temperature tuning for different scenarios.
    4. Provides variable beam angles at 15°, 24° and 38°, enabling precise accent lighting control.
    5. Comes with die‑cast aluminium trim and heat‑sink structure for efficient thermal dissipation and long service life.
    6. Optional honeycomb louver, lens and reflector accessories are available to meet customized optical demands.
    7. Achieves UGR<13 anti‑glare performance, delivering soft and comfortable illumination experience.
    8. Constant‑current remote LED driver is included for stable and reliable power supply performance.
    9. Multiple trim finish choices of matt white or black, matching various interior decoration styles.
    10. Well‑suited for guest rooms, hallways, bathroom & SPA and other commercial indoor lighting applications.

    Product Code AL-DLMS153CT050H86 AL-DLMS153CT050H86H92
    Power 3-7W 10W
    Lumen 600lm 900lm
    LED Type COB LED COB LED

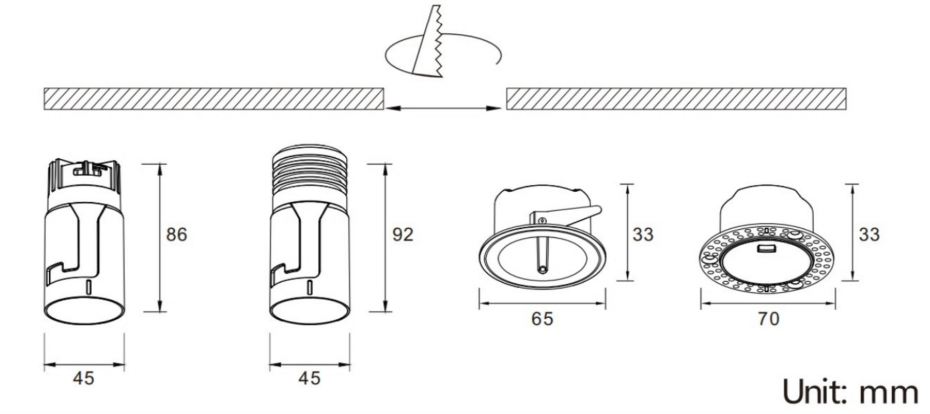

    Dimensions D45 * H86mm D45 * H92mm
    Voltage AC200-240VAC AC200-240VAC
    CCT 2700K 3000K 3500K 4000K 5000K 5700K 6500K 2700K 3000K 3500K 4000K 5000K 5700K 6500K
    Beam Angle 15°/24°/38° 15°/24°/38°
    CRI >90 >90
    UGR <13 <13

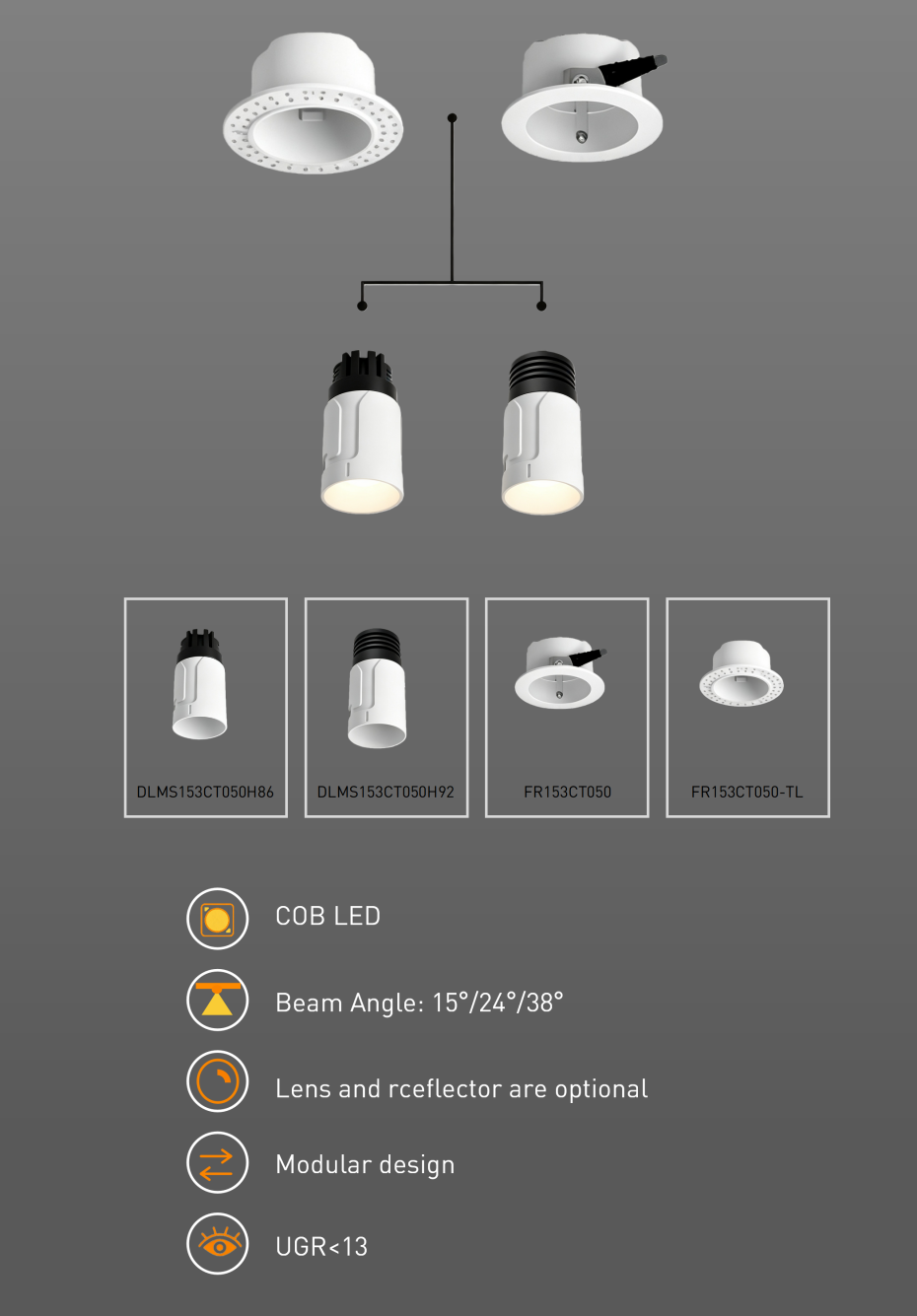

    Frame Options FR153CT050, FR153CT050-TL FR153CT050, FR153CT050-TL
