2. Compact size.
3. 316L stainless steel trim, die-casting aluminum housing, ABS mounting box.
4. CREE LED with high lumen output.
5. RGB 3in1, RGBW 4in1.
6. CE, RoHS and UKCA certification.
.png)
You are here：Home >> PRODUCTS >> IP67 Outdoor Lights... >> High-power Inground Light...

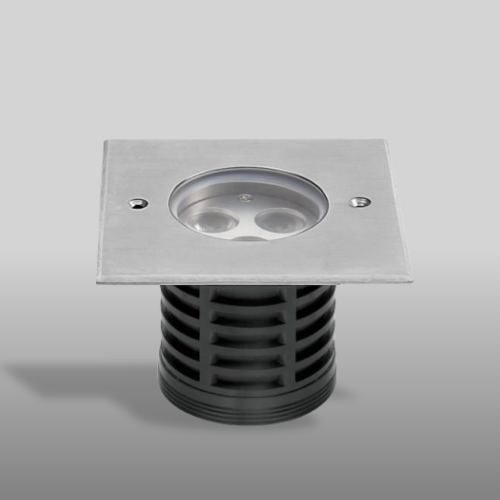

High-power Inground Light
3x2W AL-2CDS-B
3x2W High Power LED Inground Light
• Product Code: AL-2CDS-B
• LED: 3pcs high power LED
• LED brand: CREE OSRAM EPISTAR
• Power: 6-9W

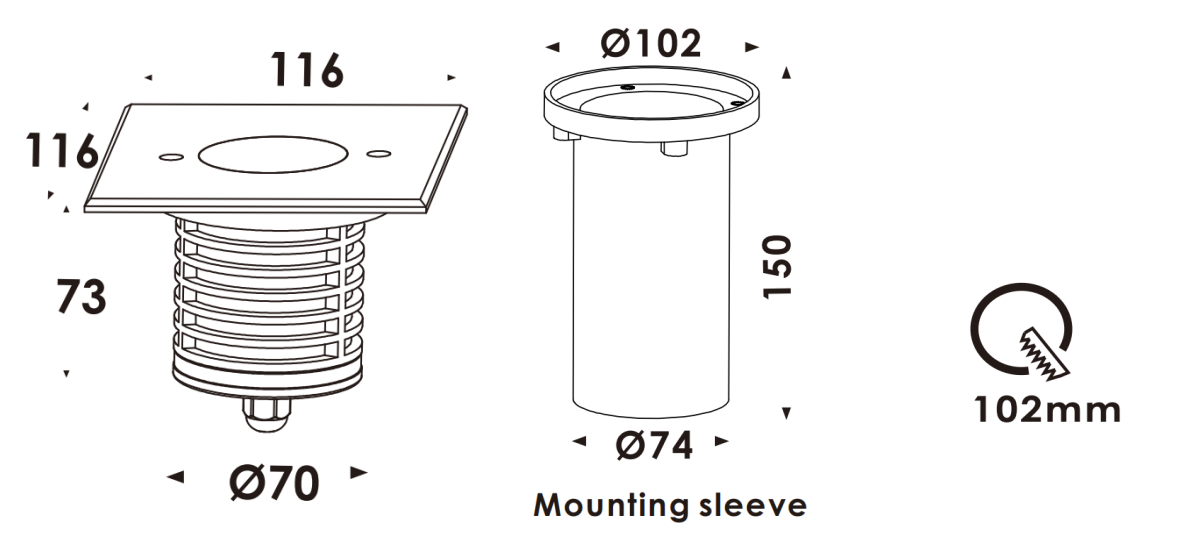

• Dimension: Ø116x73mm
• Voltage: 12/24VDC,220-240VAC
• IP grading: IP67
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material+316 stainless steel+ABS
• Warranty: 3 years
• Certification: CE ROHS UKCA
• Product Code: AL-2CDS-B
• LED: 3pcs high power LED
• LED brand: CREE OSRAM EPISTAR
• Power: 6-9W
• Dimension: Ø116x73mm
• Voltage: 12/24VDC,220-240VAC
• Color temperature: 2700K 3000K 4000K 5000K 6000K
• Colors: RGB 3in1 DMX512,RGBW 4in1 Colors:RGB 3in1 DMX512,RGBW 4in1
• Beam angle: 10°/25°/45°/60°45|35° • IP grading: IP67
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material+316 stainless steel+ABS
• Warranty: 3 years
• Certification: CE ROHS UKCA
1. IP67 waterrpoof for outdoor lighting.
2. Compact size.
3. 316L stainless steel trim, die-casting aluminum housing, ABS mounting box.
4. CREE LED with high lumen output.
5. RGB 3in1, RGBW 4in1.
6. CE, RoHS and UKCA certification.
2. Compact size.
3. 316L stainless steel trim, die-casting aluminum housing, ABS mounting box.
4. CREE LED with high lumen output.
5. RGB 3in1, RGBW 4in1.
6. CE, RoHS and UKCA certification.
|
Item No. |
LED |
Color |
Voltage |
Beam angle |
Power |
Cable |
|
|
CREE 3x2W |
Single Color |
12/24VDC |
10/25/45/60°45|35° |
6.2W |
0.5M H05RN-F |
|
CREE 3x2W |
Single Color |
220-240VAC |
10/25/45/60°45|35° |
6.7W |
0.5M H05RN-F |
|
|
EPISTAR 3x2W |
RGB |
12/24VDC |
10/25/45/60°45|35° |
6.2W |
0.5M H05RN-F |
|
|
EPISTAR 3x2W |
RGB DMX512 |
12/24VDC |
10/25/45/60°45|35° |
6.2W |
0.5M H05RN-F |
|
|
EPISTAR 3x3W |
RGB 3in1 |
12/24VDC |
10/25/45/60°45|35° |
9.3W |
0.5M H05RN-F |
|
|
EPISTAR 3x3W |
RGB 3in1 DMX512 |
12/24VDC |
10/25/45/60°45|35° |
9.3W |
0.5M H05RN-F |
|
|
EPISTAR 3x4W |
RGBW 4in1 |
12/24VDC |
10/25/45/60°45|35° |
9.3W |
0.5M H05RN-F |
|
|
EPISTAR 3x4W |
RGBW 4in1 DMX512 |
12/24VDC |
10/25/45/60°45|35° |
9.3W |
0.5M H05RN-F |
