Accessories

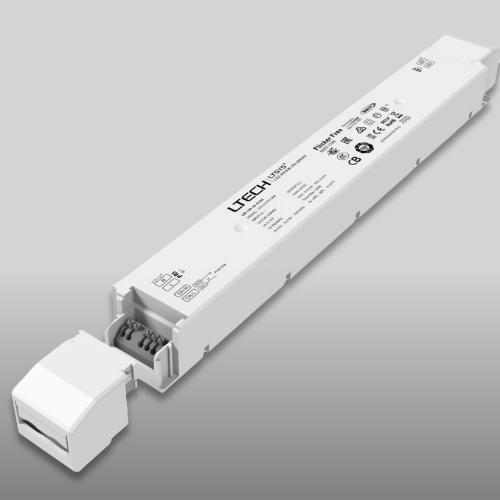

LM-100-24-G1D2

Intelligent LED Driver (Constant Voltage)

• Product Code: LM-100-24
• Output Voltage: 24VDC
• Output Current: Max. 4.17A
• Output Power: Max.100W
• Output Power Range: 0-100W
• Strobe Level: High frequency exemption level
• Dimming Range: 0~100%, dimming depth: Max. 0.1%
• Overload Power Limitation: ≥102%
• Ripple & Noise:  ≤300mV
• PWM Frequency: 3600Hz

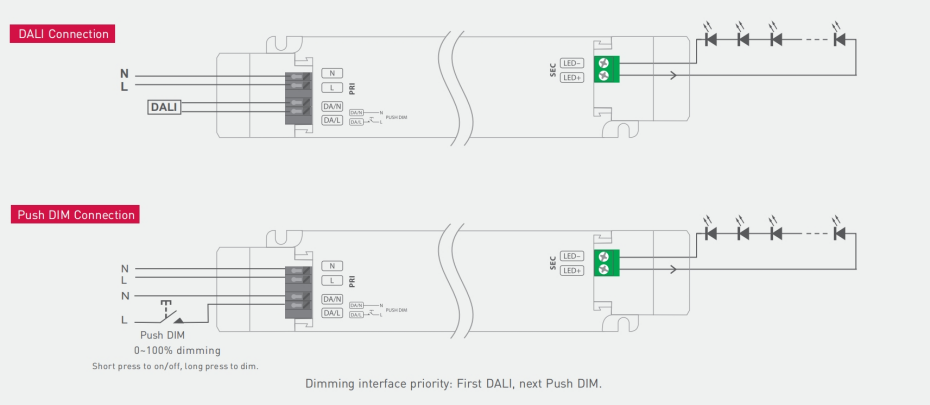

• Dimming Interface: DALI, Push DIM
• Input Voltage: 220-240Vac
• Frequency: 50/60Hz
• Input Current: Max. 0.5A/230Vac
• Power Factor: PF>0.98/230Vac, at full load
• THD: ≤12% at 230Vac, at full load
• Efficiency(typ.): 93%
• Inrush Currenty(typ.): Cold start 45A at 230Vac

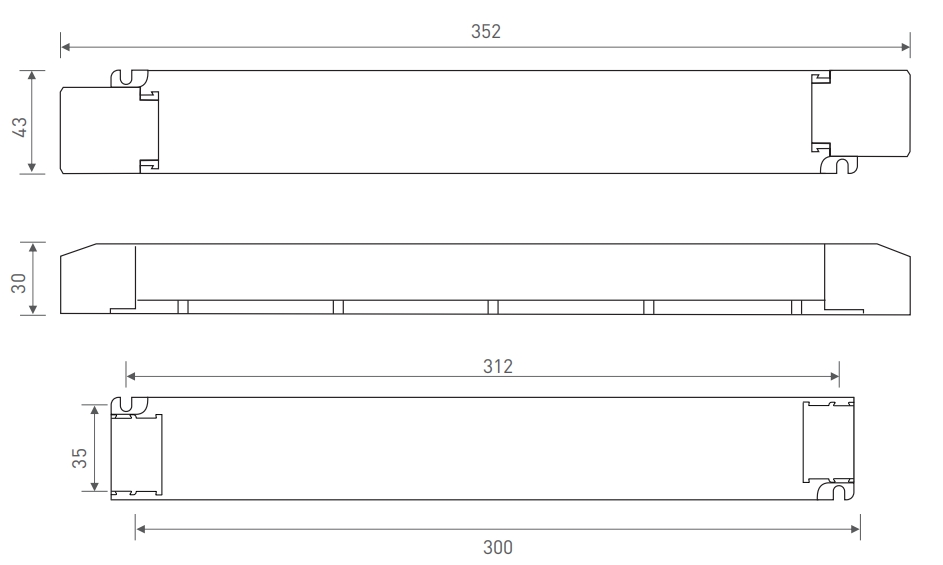

    • Small size and light weight. The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
    • The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
    • With soft-on and fade in function, visual more comfortable.
    • Dimming from 0~100%, down to 0.1%.
    • High frequency exemption level.
    • DALI dimming curves are available in linear and logarithmic curve.
    • DALI bus standard IEC62386-101, 102, 207.
    • Innovative thermal management technology, intelligent power life protection.
    • Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
    • Fully-protected plastic housing with design of dismountable end cover.
    • Compliant with Safety Extra Low Voltage standard.
    • Suitable for indoorⅠ/Ⅱ/Ⅲ type lamps application.
    • Up to 50,000-hour life time.
    • 5 years warranty (Rubycon capacitor).
    Product Code LM-100-24
    Output Voltage 24VDC
    Output Current Max. 4.17A
    Output Power Max.100W
    Output Power Range 0-100W
    Strobe Level High frequency exemption level
    Dimming Range 0~100%, dimming depth: Max. 0.1%
    Overload Power Limitation ≥102%
    Ripple & Noise ≤300mV
    PWM Frequency 3600Hz
    Dimming Interface DALI, Push DIM
    Input Voltage 220-240Vac
    Frequency 50/60Hz
    Input Current Max. 0.5A/230Vac
    Power Factor PF>0.98/230Vac, at full load
    THD ≤12% at 230Vac, at full load
     Efficiency(typ.) 93%
    Inrush Currenty(typ.) Cold start 45A at 230Vac
    Control Surge Capability  L-N:2KV
    Leakage Current Max. 0.5mA
